Parallel pushbutton separate lamp circuit Exxact surface-mounted - PB 1P W IND SEP CIRC SCREWLESS
Schneider Electric

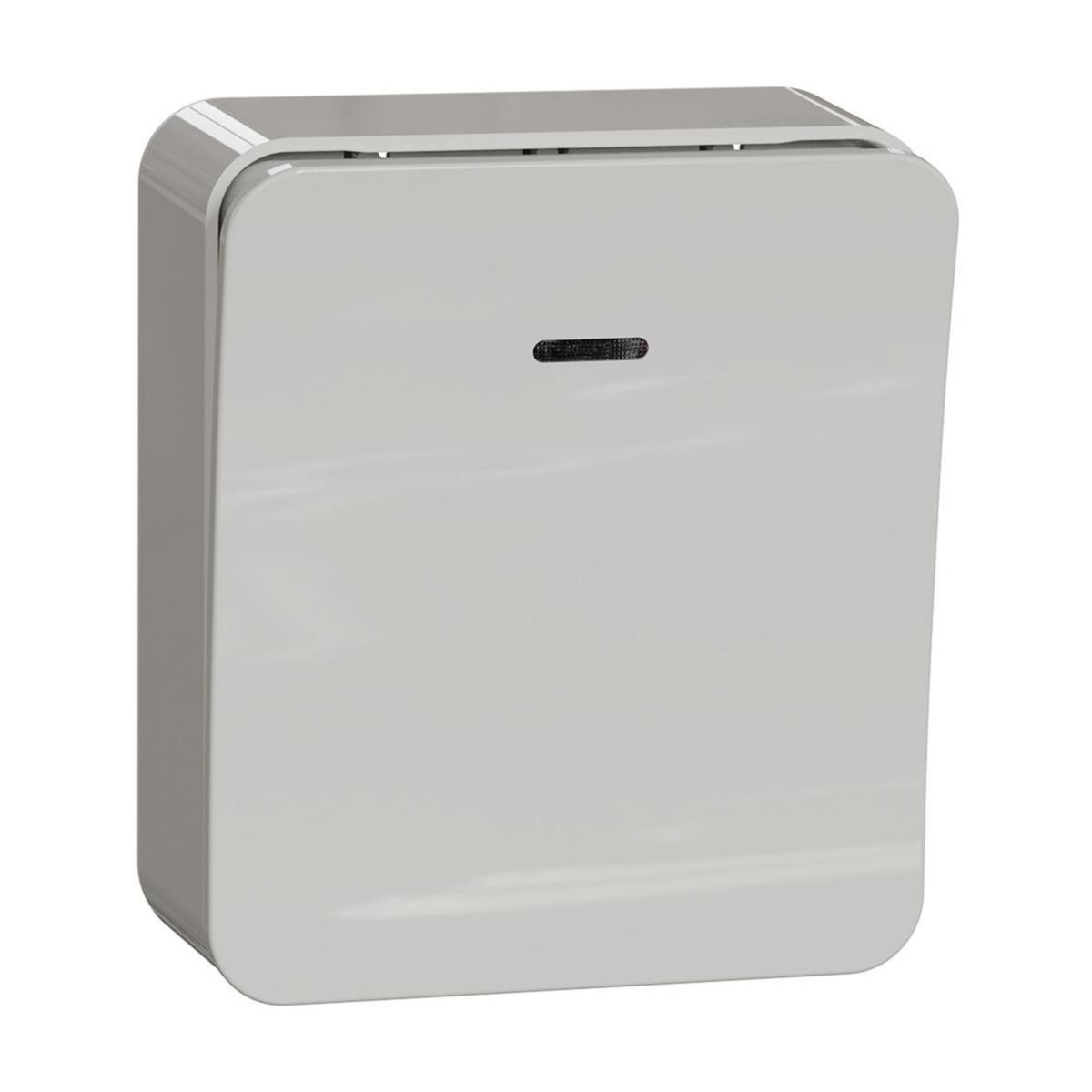

Parallel pushbutton separate lamp circuit Exxact surface-mounted

PB 1P W IND SEP CIRC SCREWLESS
Article number:
1820283
Suppl. article no:
WDE015551
‌
‌
‌
‌
‌
 to see price and stock
Environmental product declarationByggvarubedomning: UndviksREACH Information obligation
Parallel pushbutton with separate lamp circuit and red LED for surface installation with integrated base plate. 16AX, 250V and with 2 neutral switching terminals. Quick connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below. Possibility of further screw fastening of the lid.
  • Article number:
    1820283
  • Suppl. article no:
    WDE015551
  • Ean no:
    3606489504250
  • Material class
    QH160A
  • This is an alternative to item
    1834550
Technical data
  • Packagin Size: 1 ST/5 ST/60 ST
  • Model: Single push button
  • Colour: White
  • Number of poles: 1
  • Number of contacts as normally open contact (NO): 1
  • Number of contacts as change-over contact (CO): 0
  • Number of contacts as normally closed contact (NC): 0
  • Number of revolving contacts: 0
  • With lighting: Yes
  • With light source: Yes
  • With signal lamp: Yes
  • Number of rockers: 1
  • Imprint: None
  • Device width: 65 mm
  • Device depth: 27 mm
  • Label space/information surface: No
  • RAL-number (similar): 9003
  • Halogen free: Yes
  • Device height: 75 mm
  • Suitable for degree of protection (IP): IP20
  • Operating method: Rocker
  • Material: Plastic
  • Material quality: Thermoplastic
  • Assembly arrangement: Basic element with complete housing
  • Mounting method: Surface mounted
  • Nominal voltage: 250 V
  • Rated current: 16 A
  • Transparent: No
  • Surface finishing: Glossy
  • Surface protection: Untreated
  • Monitoring contact: No
  • Type of fastening: Screw mounting
  • Anti-bacterial treatment: No
  • Contactless type: No
  • Operating principle: Electromechanical
  • Connection type: Push-in clamp
  • Product series: Exxact
  • REACH Date: 2025-07-18
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
