Schneider Electric

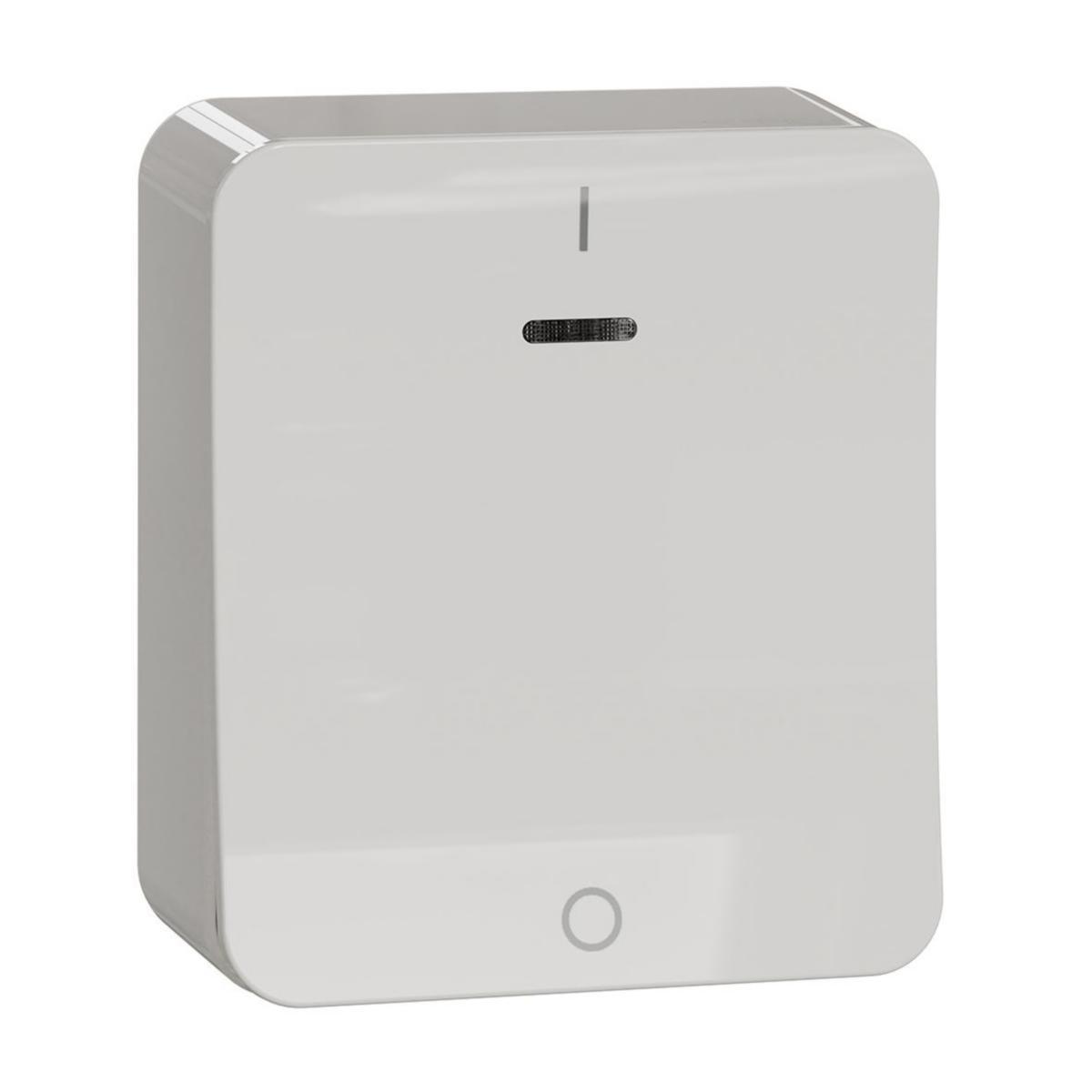

Control current Exxact surface mounted
SWITCH 2P CONTROL SCREWLESS
Article number: Suppl. article no:
1820273
WDE015562
to see price and stock
Control switch with red LED for surface installation with integrated base plate. 16AX, 250V. Quick connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below. Possibility of further screw fastening of the lid. Can easily be equipped with impulse spring.
- Article number: 1820273
- Suppl. article no: WDE015562
- Ean no: 3606489504229
- Material class QH160A
Technical data
- Packagin Size: 1 ST/5 ST/20 ST
- Product series: Exxact
- Wiring system: Switch 2-pole
- Operating method: Rocker/button
- Number of rockers: 1
- Lighting: Yes
- Push button switch: No
- Function lighting: Illuminated (on)
- Colour: White
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 16 AX
- RAL-number (similar): 9003
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device width: 65 mm
- Device height: 75 mm
- Device depth: 27 mm
- Built-in depth: 0 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- Type of lighting: LED not exchangeable
- With mounting plate: Yes
- Anti-bacterial treatment: No
- Heating switch: No
- Colour of switch operator: White
- Connection type: Push-in clamp
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
