Elko
Jalousie switch Oceanplastic
Plus switch shutter s 2 "S" bl EKO30010
Article number: Suppl. article no:
1849555
EKO30010
to see price and stock

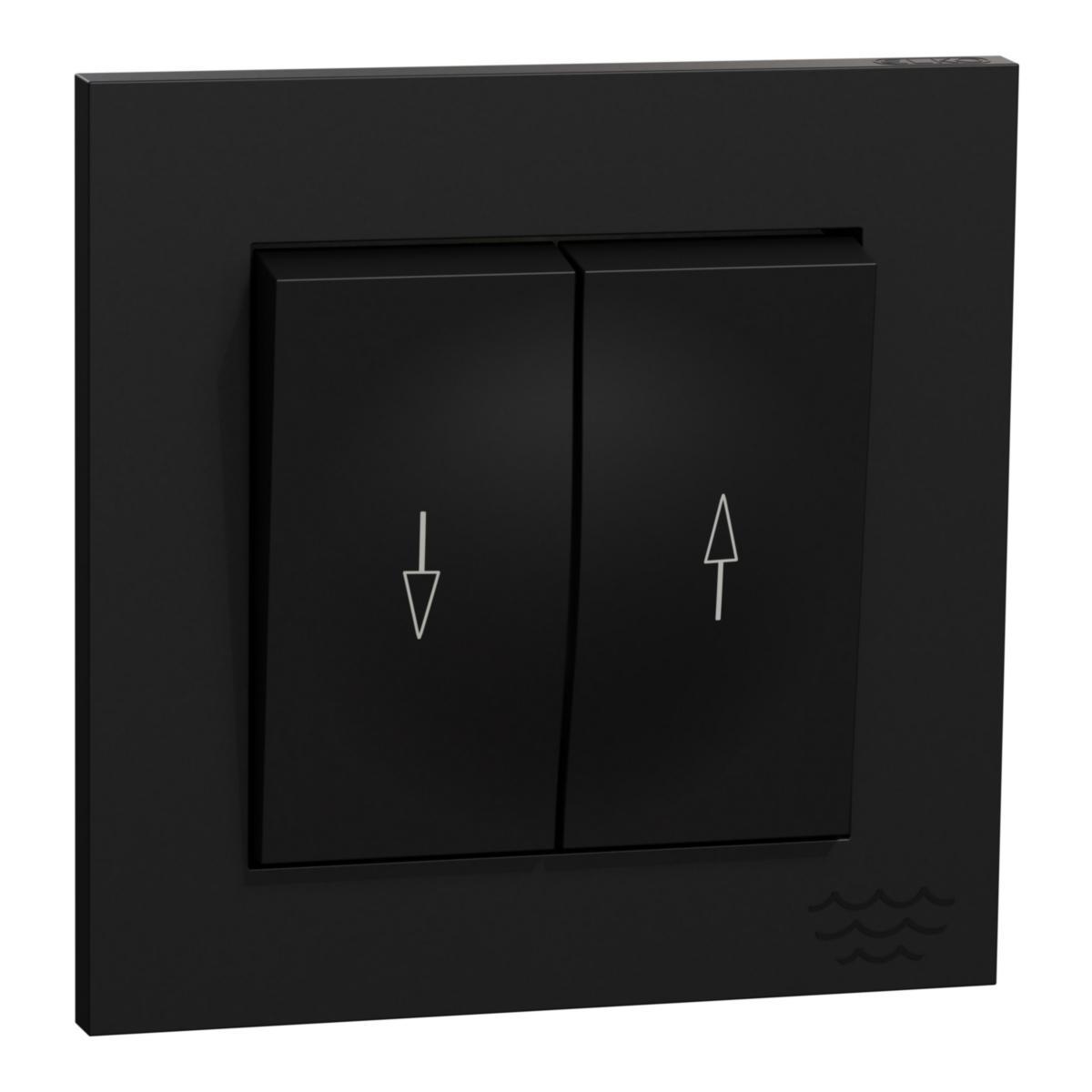

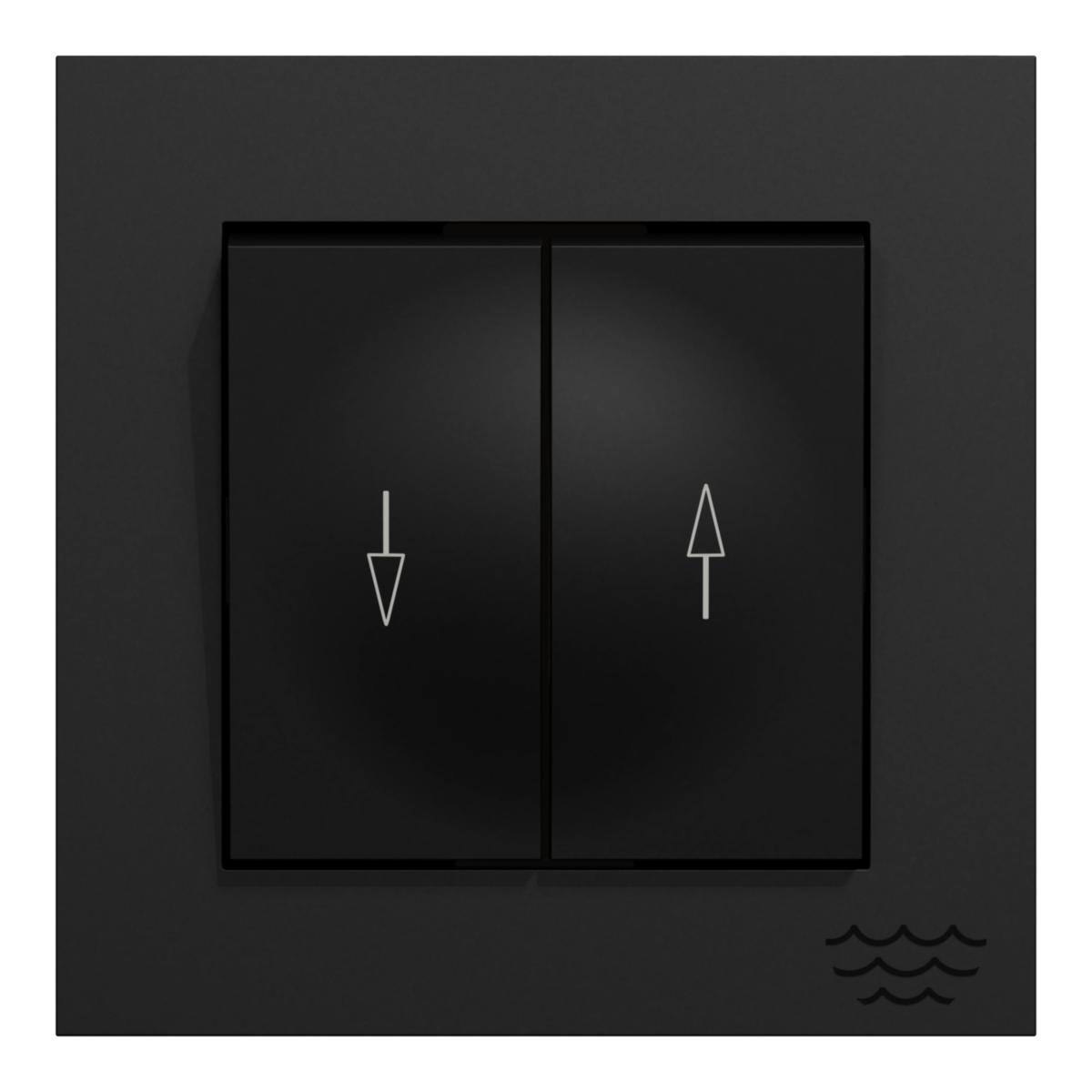

ELKO is the first in the industry to produce switches, sockets and frames in marine plastic. Initially, there are 19 products in the design series ELKO Plus in the color black that are available in marine plastic. Pressure rocker switch with base, rocker and frame of halogen-free thermoplastic. Pressurized cover frame and rocker are standard. The cover frame can also be attached with a screw. Mounting screw distance, 60 mm. Screw connection of the conductors with elevator clamp. Switchover 400V. Also intended for combination mounting. Mounting depth 11.5mm. Delivered without mounting claws. The rockers are equipped with up / down arrows.
- Article number: 1849555
- Suppl. article no: EKO30010
- Ean no: 7020161300101
- Material class QH3800
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Product series: Plus, OceanPlastic
- Wiring system: Other
- Operating method: Rocker/button
- Number of rockers: 2
- Colour: Black
- RAL-number (similar): 9005
- Lighting: No
- Connection type: Screwed terminal
- Rated current: 16 A
- Colour of switch operator: Black
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 17 mm
- Built-in depth: 11.5 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: Yes
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Lacquered
- Monitoring contact: No
- With mounting plate: Yes
- Label space/information surface: No
- Anti-bacterial treatment: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Heating switch: No
- Compliant with UK Building Regulations Part M: No
- Number of buttons: 2
- REACH Date: 2023-12-31
- Number of poles: 3
- Electronic controllable: No
- REACH Information obligation: No
- Model: 2-pole switch and push switch
- For venetian blinds: Yes
- For awnings: Yes
- For roller blinds: Yes
- Label space/information surface: No
- Mechanical controllable: Yes
- Transparent: No
