Elko

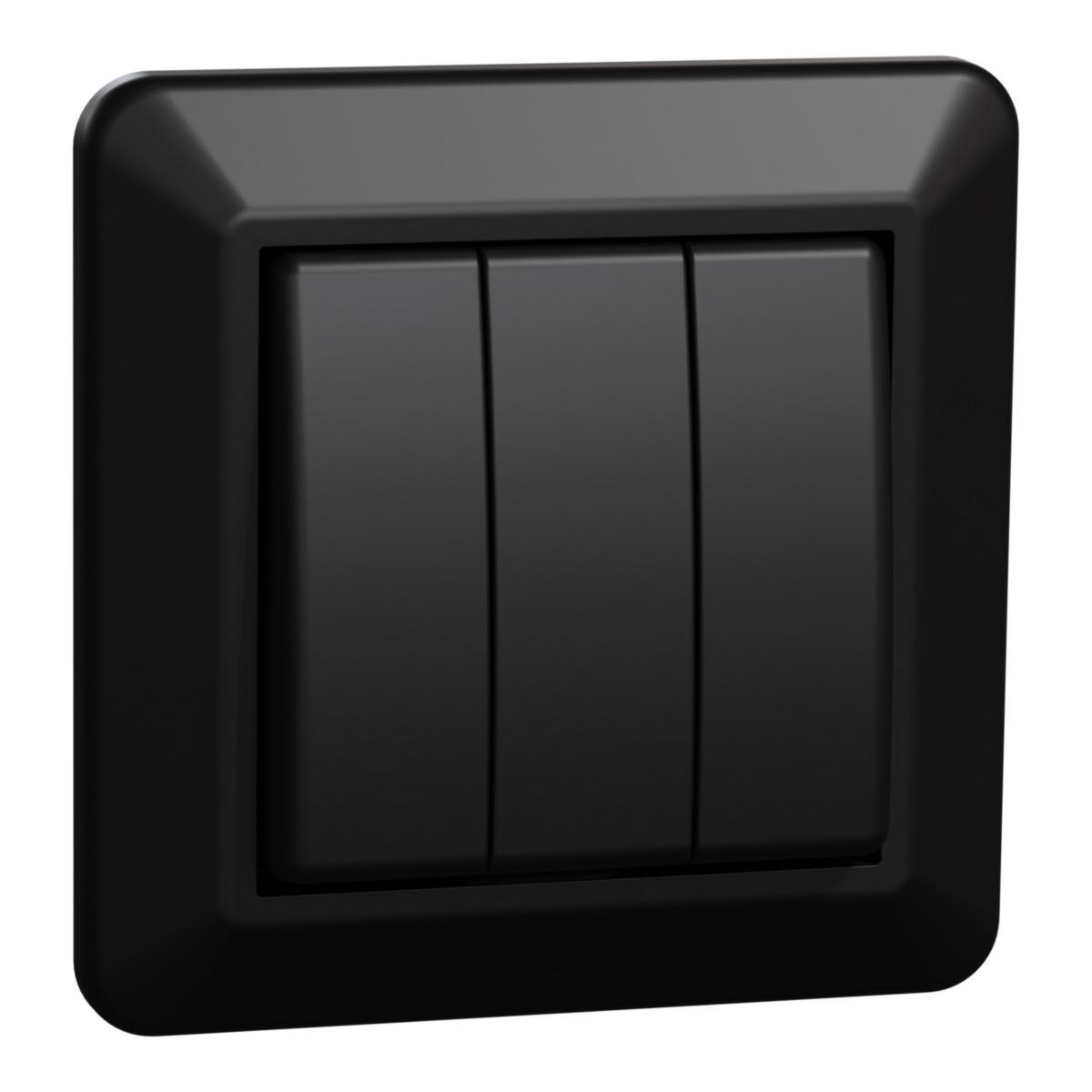

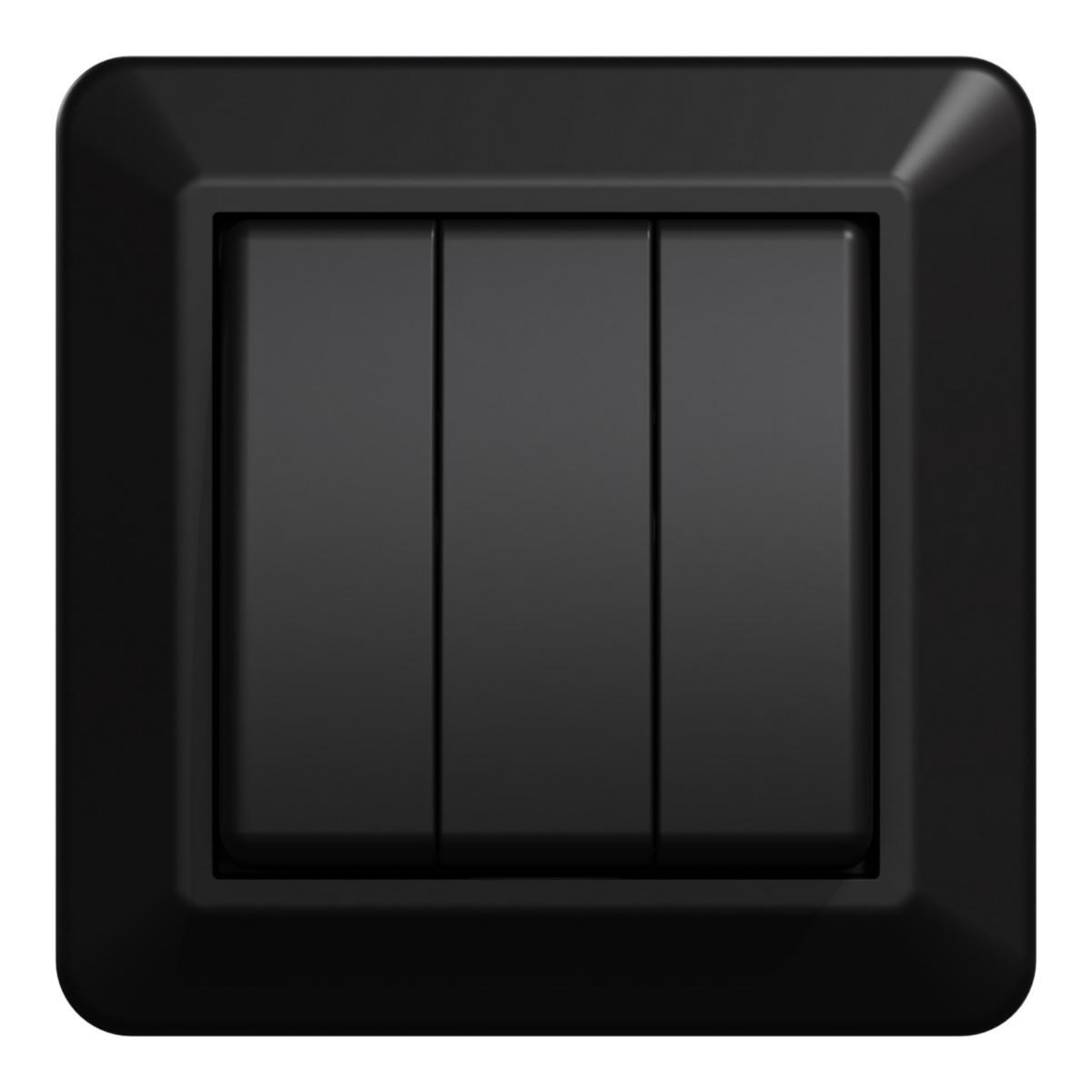

Switch, Elko RS, screw connection without claws black
RS switch 3x1-pole screw bl
Article number: Suppl. article no:
1849736
EKO40005
to see price and stock

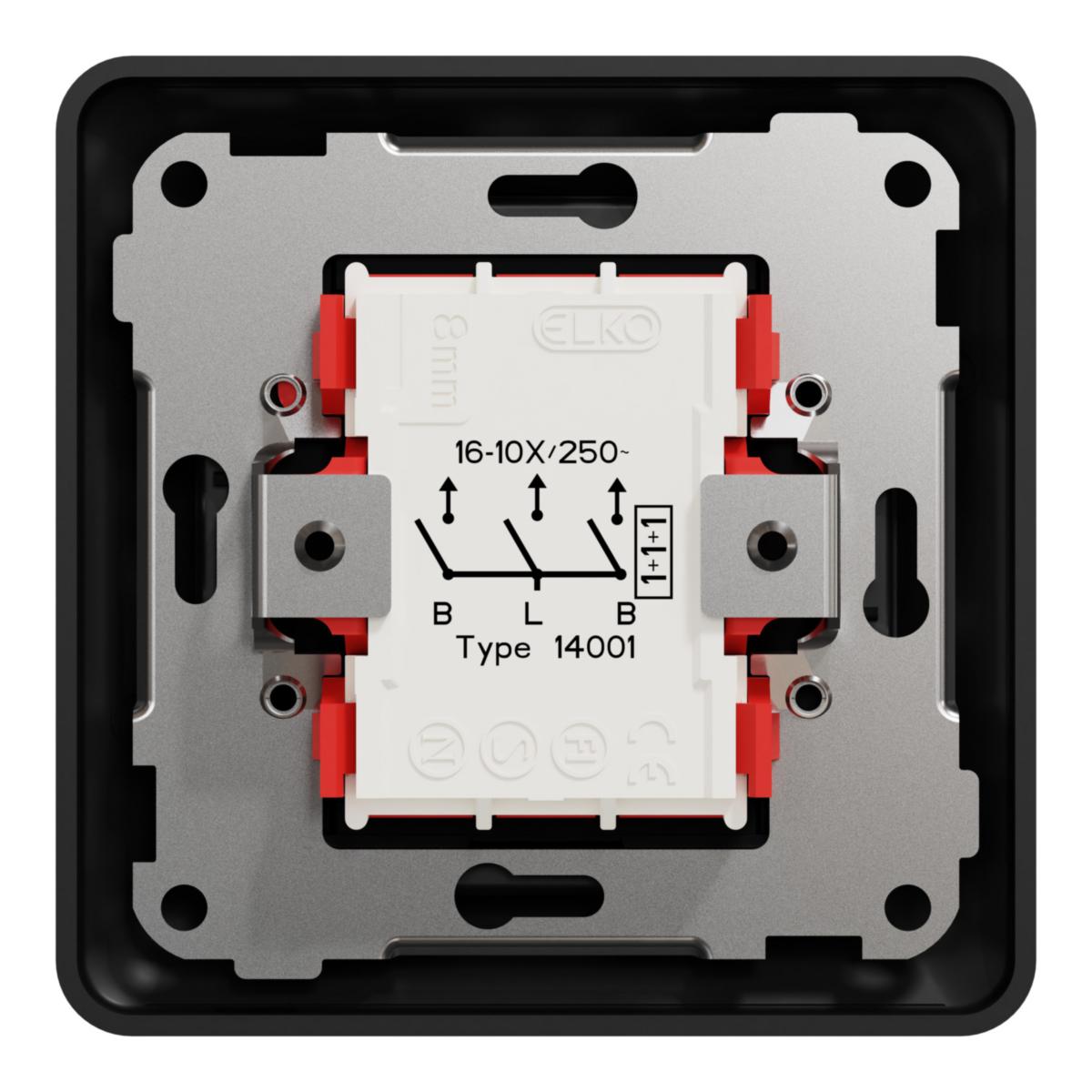

Push-button rocker switch with base, rocker and frame made of halogen-free thermoplastic. Press-on cover frame and rocker are standard. The cover frame can also be attached with screws. Fixing screw distance, 60 mm. Delivered without mounting claws. Screw connection of the conductors with elevator clamp. Switching 400V. Also intended for combination assembly. IP21 when mounted in an extension frame.
- Article number: 1849736
- Suppl. article no: EKO40005
- Ean no: 7020160400055
- Material class QH3300
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Product series: RS
- Wiring system: Switch 3x1-pole
- Operating method: Rocker/button
- Number of rockers: 3
- Colour: Black
- RAL-number (similar): 9005
- Lighting: No
- Connection type: Screwed terminal
- Rated current: 16 A
- Colour of switch operator: Black
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 29.5 mm
- Built-in depth: 11.5 mm
- Min. depth of built-in installation box: 40 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Lacquered
- Monitoring contact: No
- Number of modules (module system): 0
- With mounting plate: No
- Label space/information surface: No
- Anti-bacterial treatment: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Impact strength: IK02
- Heating switch: No
- Compliant with UK Building Regulations Part M: No
- REACH Date: 2024-07-31
- REACH Information obligation: No
