Elko

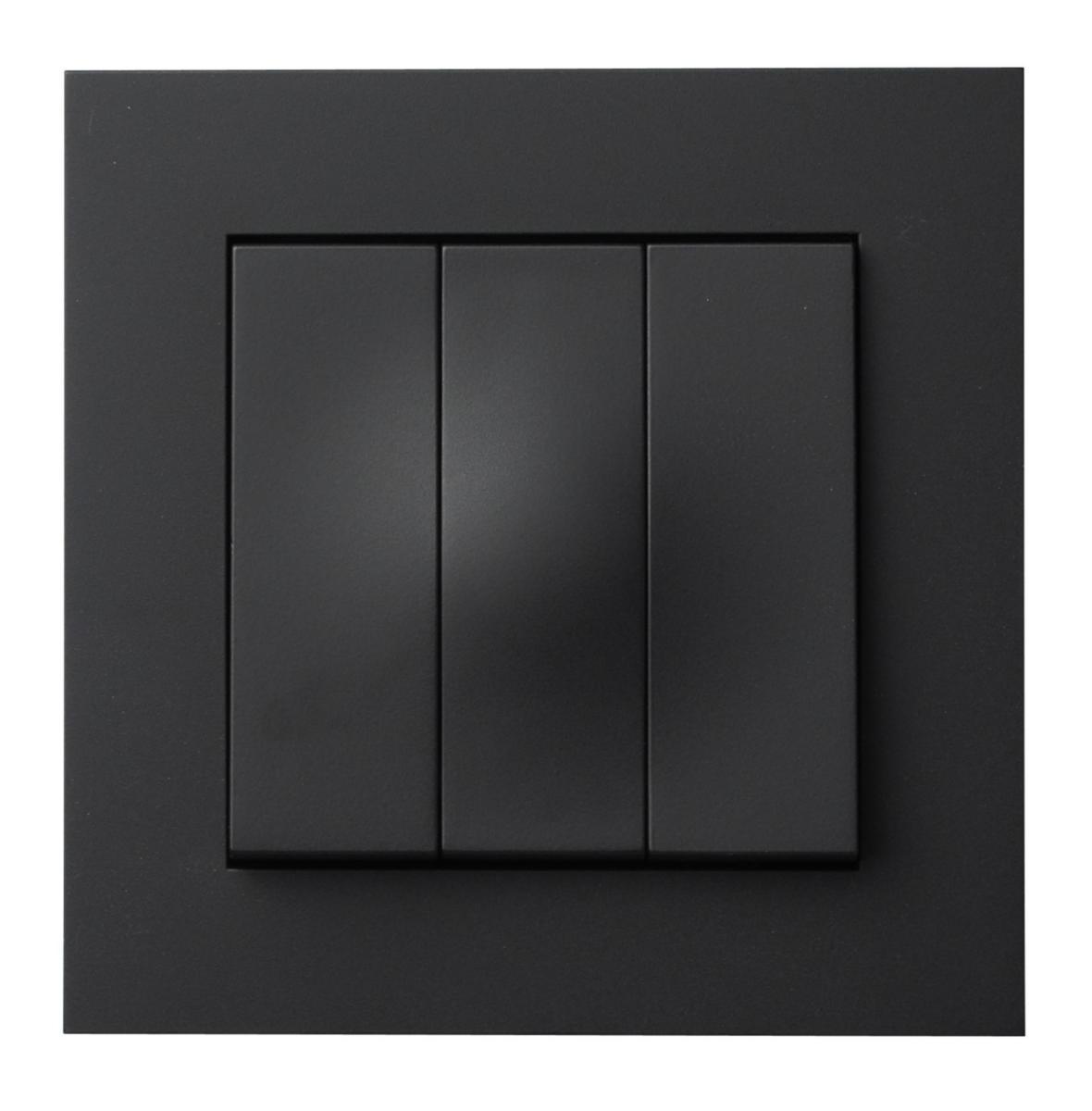

Switch, Elko plus black, quick connection without claws
PLUS SWITCH "Q" 1+1+1 BL
Article number: Suppl. article no:
1848536
EKO03906
to see price and stock
Pressure rocker switch with base, rocker and frame of halogen-free thermoplastic. Pressurized cover frame and rocker are standard. The cover frame can also be attached with a screw. Mounting screw distance, 60 mm. Quick connection. Also intended for combination mounting. Mounting depth 11.5mm. Delivered without mounting claws. Can be fitted with impulse spring 18 405 96.
- Article number: 1848536
- Suppl. article no: EKO03906
- Ean no: 7020160390608
- Material class QH380A
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/2000 ST
- Product series: Plus
- Wiring system: Switch 3x1-pole
- Operating method: Rocker/button
- Number of rockers: 2
- Colour: Black
- RAL-number (similar): 2005
- Lighting: No
- Connection type: Push-in clamp
- Rated current: 16 A
- Colour of switch operator: Black
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 38 mm
- Built-in depth: 21 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Lacquered
- Monitoring contact: No
- With mounting plate: Yes
- Label space/information surface: No
- Anti-bacterial treatment: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
