Elko

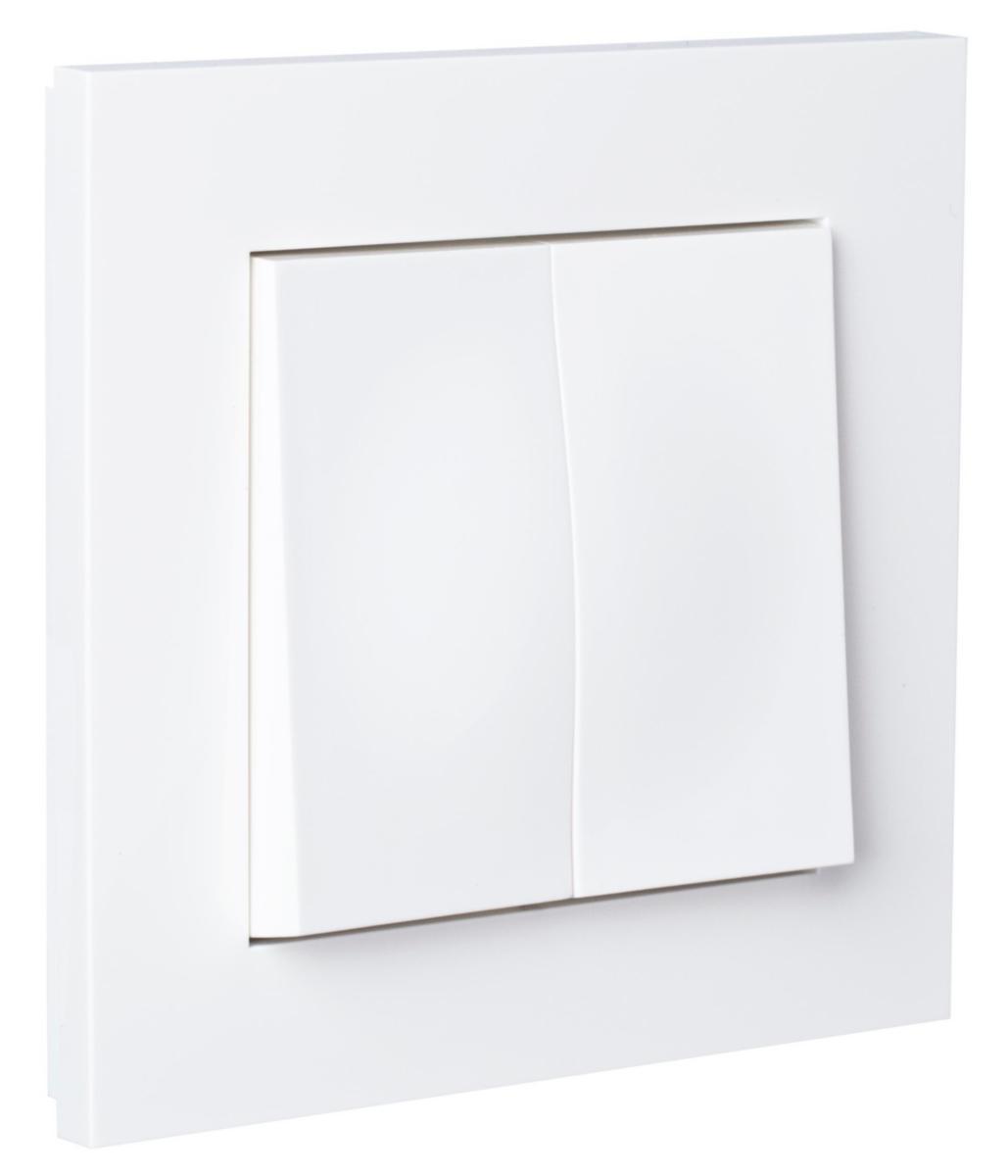

Switch Elko Plus recessed, screw connection
PLUS SWITCH S 5 "S" PW EKO03860
Article number: Suppl. article no:
1848016
EKO03860
to see price and stock
Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixed screw distance, 60 mm. Screw connection of the leads by means of a lift clamp. Designed also for combination assembly. Supplied without fixing claws. Can be equipped with impulse spring.
- Article number: 1848016
- Suppl. article no: EKO03860
- Ean no: 7020160386007
- Material class QH3800
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/2250 ST
- Product series: Elko Plus
- Wiring system: Series switch
- Operating method: Rocker/button
- Number of rockers: 2
- Colour: White
- RAL-number (similar): 9010
- Lighting: No
- Connection type: Screwed terminal
- Rated current: 16 A
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 28.5 mm
- Built-in depth: 11.5 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- Number of modules (module system): 0
- With mounting plate: Yes
- Label space/information surface: No
- REACH Date: 2022-08-09
- Design: Crown
- Switching clamp: 2
- REACH Information obligation: No
