Elko

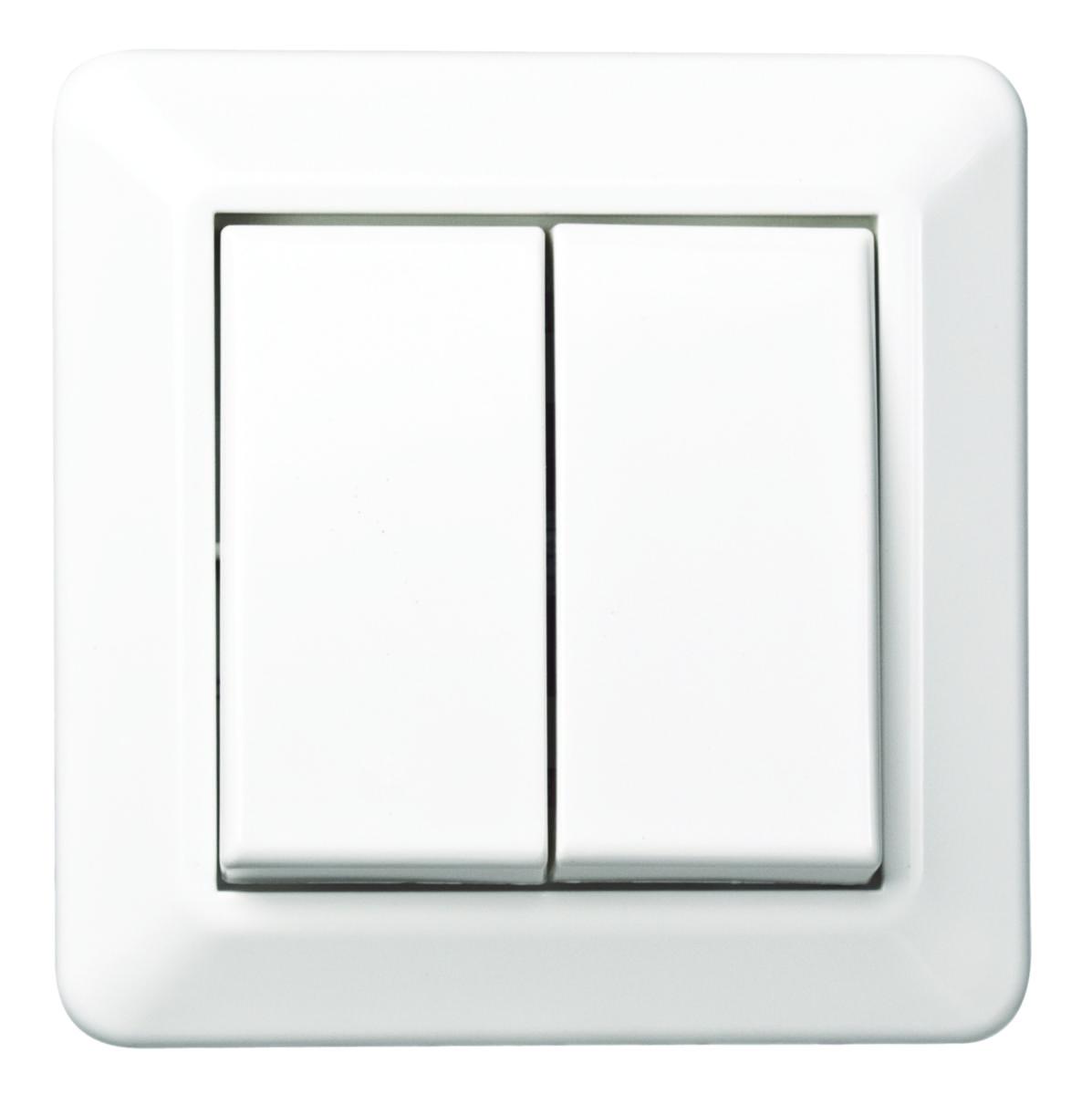

Switch, Elko RS, quick coupling without prongs
H16/5 I SWITCH FLUSH CLAWLESS EKO03643
Article number: Suppl. article no:
1840817
EKO03643
to see price and stock
Quick connection. Rocker switch without chlorine with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixing screw interval 60 mm.
Also intended for combination mounting. IP21 when mounted in elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
Also intended for combination mounting. IP21 when mounted in elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
- Article number: 1840817
- Suppl. article no: EKO03643
- Ean no: 7020160364302
- Material class QH3200
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/2000 ST
- Type: EKO03643
- Product series: RS
- Wiring system: Series switch
- Operating method: Rocker/button
- Number of rockers: 2
- Colour: White
- RAL-number (similar): 9010
- Lighting: No
- Connection type: Push-in clamp
- Rated current: 16 A
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 38 mm
- Built-in depth: 21 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- Number of modules (module system): 0
- With mounting plate: Yes
- Label space/information surface: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
