Elko

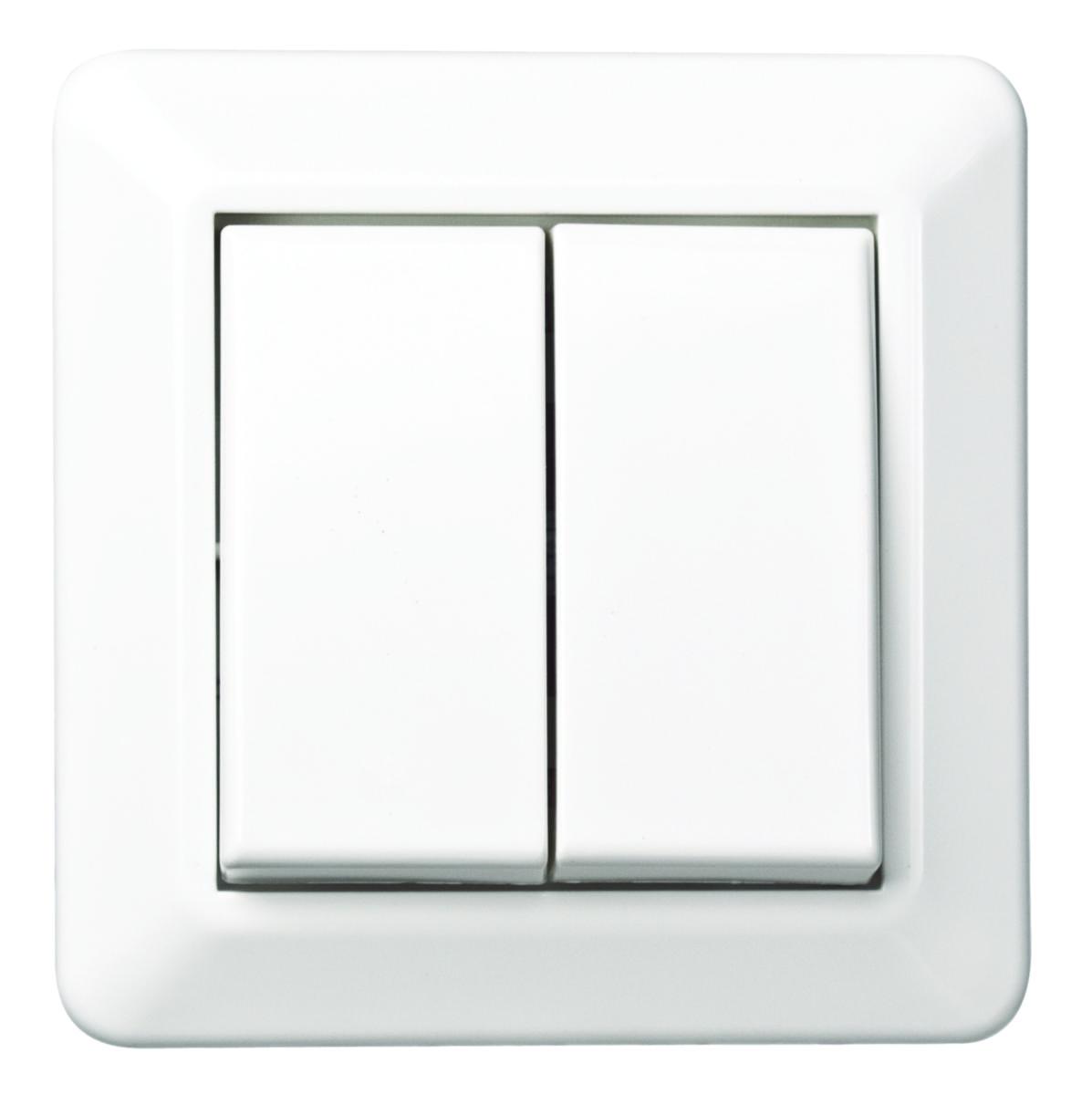

Switch, Elko RS, quick coupling, ELKO
H16/5 I SWITCH FLUSH "Q" PW
Article number: Suppl. article no:
1840816
EKO03632
to see price and stock
Quick connection. Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws.
Fixing screw interval 60 mm. Designed also for combination assembly.
IP21 for assembly in elevation frame.
With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
* Can also be provided with light.
Supplemented with lamp, transparent mounting frame and rocker with raster.
** Cannot be used for IP21 or IP44
Fixing screw interval 60 mm. Designed also for combination assembly.
IP21 for assembly in elevation frame.
With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
* Can also be provided with light.
Supplemented with lamp, transparent mounting frame and rocker with raster.
** Cannot be used for IP21 or IP44
- Article number: 1840816
- Suppl. article no: EKO03632
- Ean no: 7020160363206
- Material class QH3202
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/2000 ST
- Type: EKO03632
- Product series: RS
- Wiring system: Series switch
- Operating method: Rocker/button
- Number of rockers: 2
- Colour: White
- RAL-number (similar): 9010
- Connection type: Push-in clamp
- Rated current: 16 A
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 21 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Type of fastening: Mounting with claw and screw
- REACH Date: 2022-08-09
- REACH Information obligation: No
