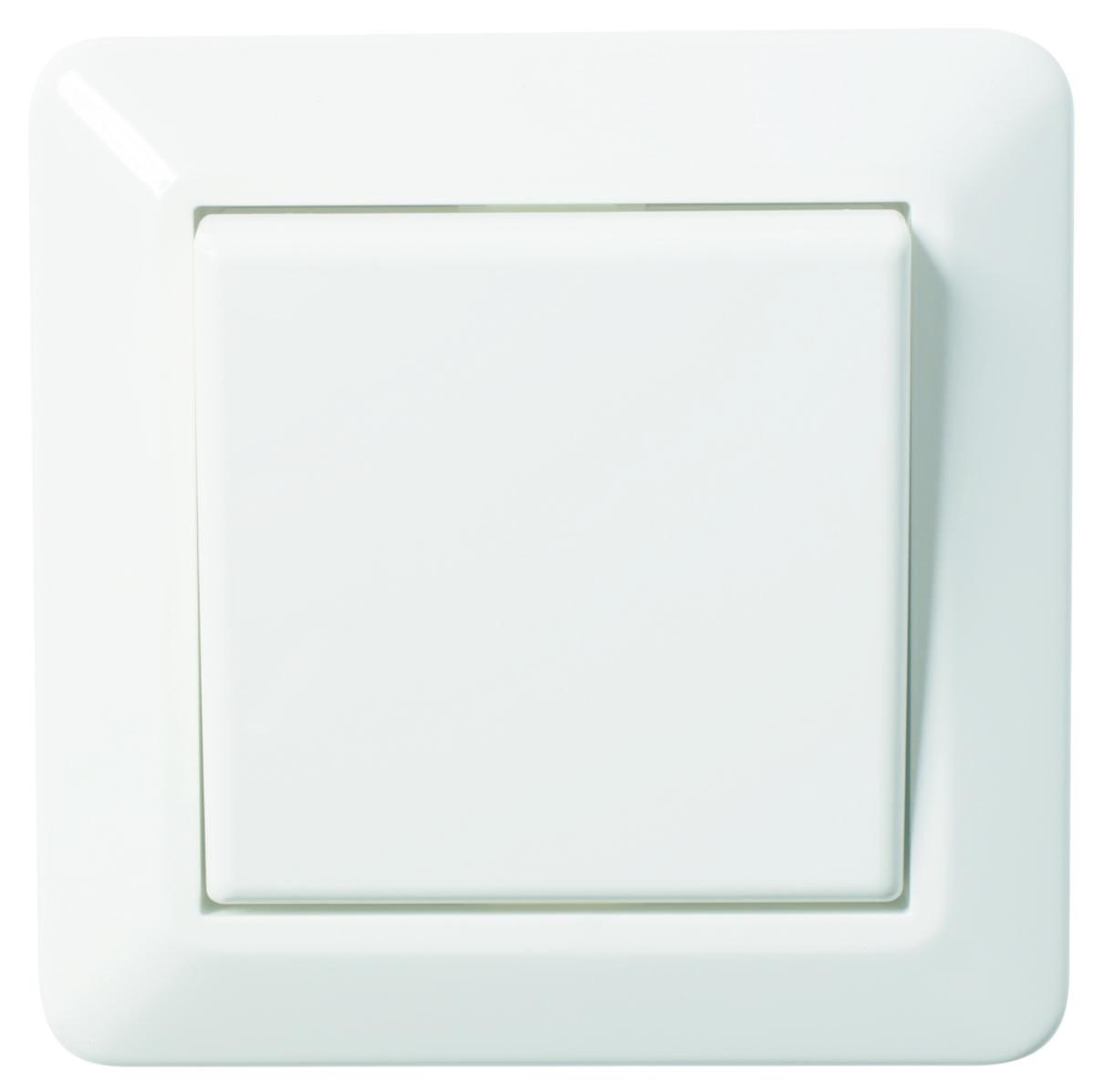

Switch, Elko RS, screw coupling

RS16/6 IS SWITCH FLUSH "S" PW

Article number:

1840621

Suppl. article no:

EKO03679

‌
‌
‌

‌
‌

to see price and stock

Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixing screw interval 60 mm.
Screw connection of the leads by means of a lift clamp. Cutover 400V. Also intended for combination assembly. Assembly depth 11.5mm. IP21 with mounting on elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44. Does not apply to 1840636.

Article number:
1840621
Copy to clipboard
Suppl. article no:
EKO03679
Copy to clipboard
Ean no:
7020160367907
Copy to clipboard
Material class
QH3201
Copy to clipboard

Technical data

Packagin Size: 1 ST/5 ST/50 ST/2250 ST
Type: EKO03679
Product series: RS
Wiring system: Two-way switch
Operating method: Rocker/button
Number of rockers: 1
Colour: White
RAL-number (similar): 9010
Lighting: No
Connection type: Screwed terminal
Rated current: 16 A
Suitable for degree of protection (IP): IP20
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Mounting method: Flush-mounted
Device width: 84 mm
Device height: 84 mm
Device depth: 22 mm
Built-in depth: 11.5 mm
Switching current for fluorescent lamps: 10 AX
Assembly arrangement: Basic element with full cover plate
Nominal voltage: 250 V
Washing machine switch: No
Push button switch: No
Type of fastening: Mounting with claw and screw
Surface finishing: Glossy
Surface protection: Untreated
Monitoring contact: No
Number of modules (module system): 0
With mounting plate: Yes
Label space/information surface: No
REACH Date: 2022-08-09
REACH Information obligation: No
