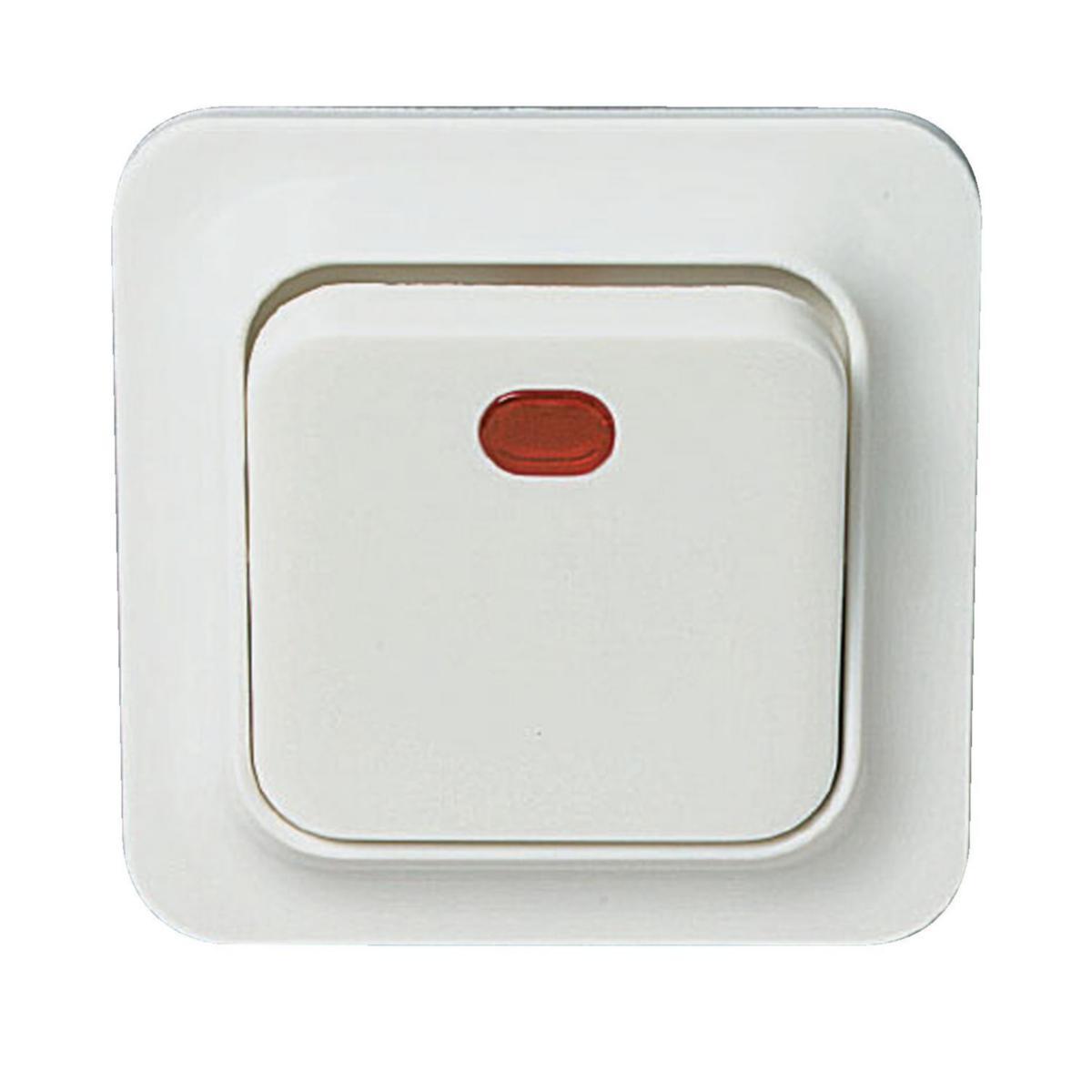

Switch rocker button switch 16 A 250 V

PUSH BUTTON 1-POL P-WHITE

Article number:

1830147

Suppl. article no:

183014700

‌
‌
‌

‌
‌

to see price and stock

With alternating contact. Supplied with lamp and red window. Lamp 230V E 18 305 24.

Technical data

Packagin Size: 1 ST/5 ST/60 ST/1920 ST
Design: 1-pole alt
Operating method: Rocker
Number of contacts as normally open contact: 1
Number of contacts as normally closed contact: 1
Number of contacts as change-over contact: 1
Number of revolving contacts: 0
With lighting: Yes
With light source: Yes
With signal lamp: Yes
Type of fastening: Mounting with claw and screw
Halogen free: Yes
Number of rockers: 1
Number of poles: 1
Colour: White
RAL-number (similar): 9010
Nominal voltage: 250 V
Rated current: 16 A
Device height: 82 mm
Device width: 82 mm
Device depth: 41 mm
Min. depth of built-in installation box: 24 mm
Suitable for degree of protection (IP): IP20
Impact strength: IK03
Label space/information surface: No
Imprint: None
Material: Plastic
Material quality: Thermoplastic
Model: Single push button
Compatible with Amazon Alexa: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
IFTTT support available: No
Assembly arrangement: Basic element with full cover plate
Mounting method: Flush-mounted
Transparent: No
Surface finishing: Glossy
Surface protection: Untreated
Monitoring contact: No
Anti-bacterial treatment: No
Connection type: Push-in clamp
Product series: Trend
REACH Date: 2025-07-18
REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
REACH Information obligation: Yes
