Schneider Electric
Switch Trend flush mounted quick connect, Schneider-Electric

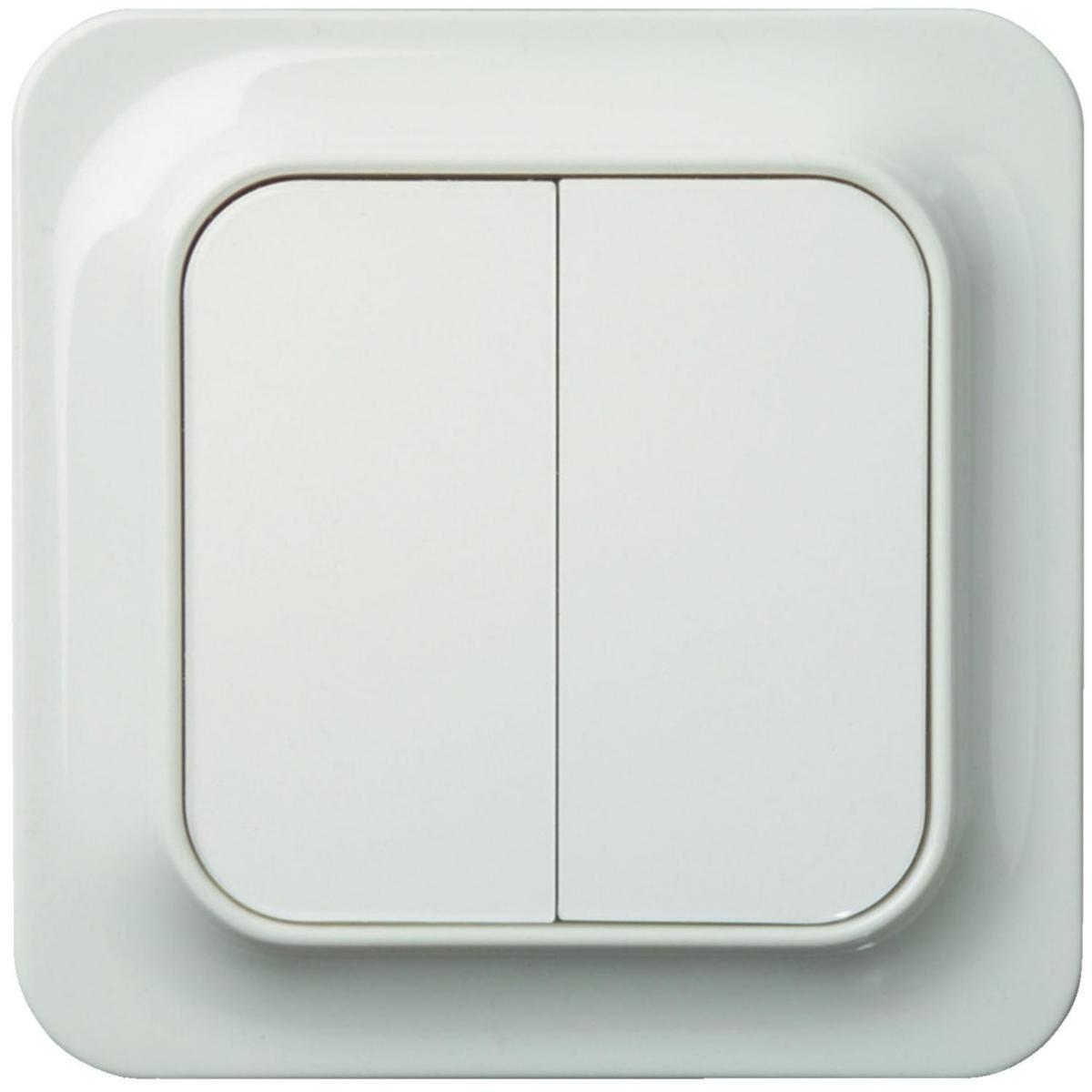

SWITCH CROWN P-WHITE
Article number: Suppl. article no:
1830117
183011700
to see price and stock
Trend was launched in 1988 with the basic idea of offering all device functions in one unified design. For recessed mounting in apparatus box c/c 60 mm. For surface mounting, a 18 mm frame, E18 307 93, is used. The switches have two neutral transfer clamps (not d step, 2+1 and 3x1-pole).
Can be supplemented with a glow lamp incl holder E18 305 26.
Can be supplemented with a glow lamp incl holder E18 305 26.
- Article number: 1830117
- Suppl. article no: 183011700
- Ean no: 6438054017615
- Replaces art.nbr: 1838016
- Material class QH0301
Technical data
- Packagin Size: 1 ST/5 ST/60 ST
- Product series: Trend
- Wiring system: Series switch
- Operating method: Rocker/button
- Number of rockers: 2
- Colour: White
- RAL-number (similar): 9010
- Lighting: No
- Connection type: Push-in clamp
- Rated current: 16 A
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 82 mm
- Device height: 82 mm
- Device depth: 15 mm
- Built-in depth: 15 mm
- Switching current for fluorescent lamps: 0 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Mounting with claw and screw
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- With mounting plate: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
