Schneider Electric

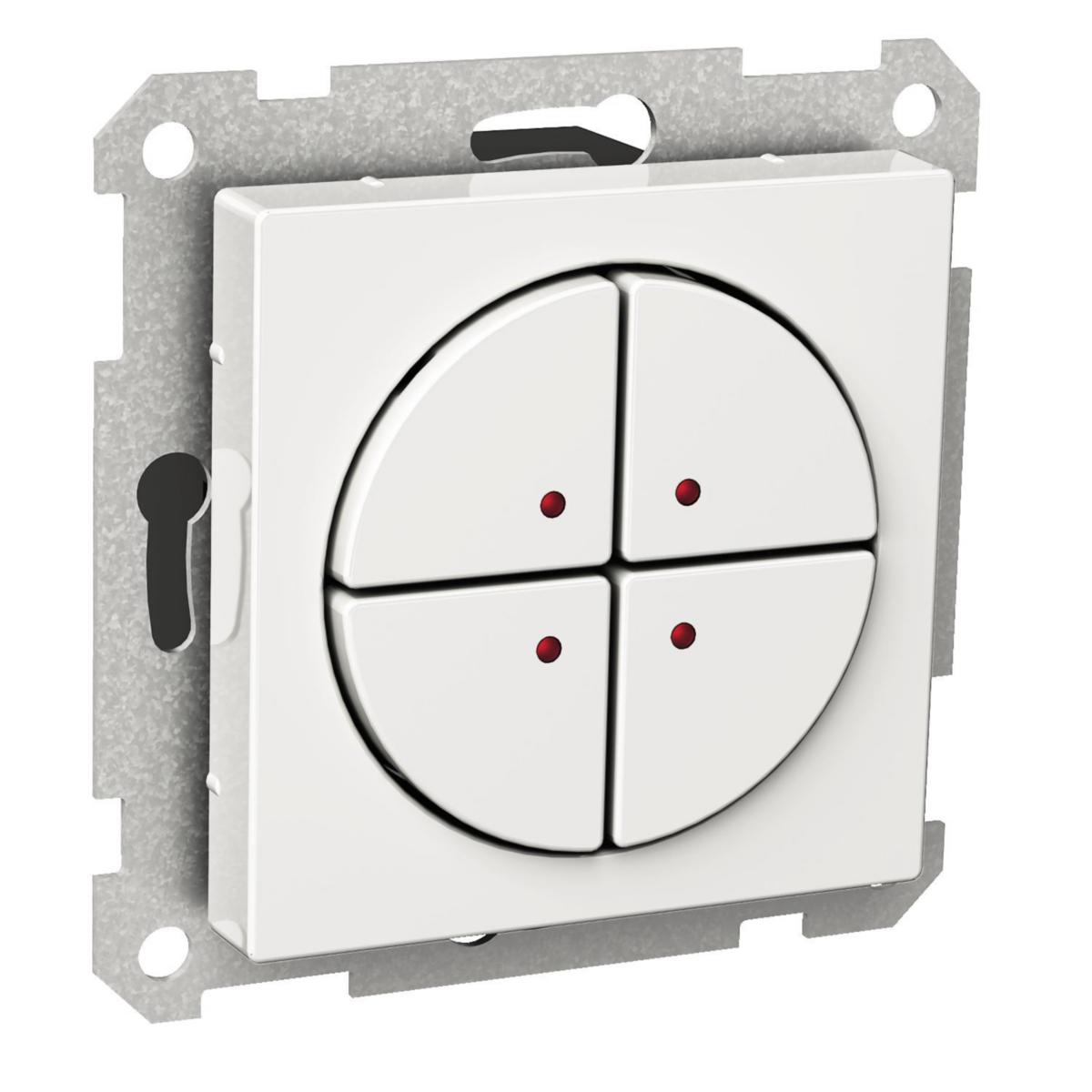

Low-voltage button 400mA
SELV PB 4G W LED WH EXXACT
Article number: Suppl. article no:
1821184
WDE002394
to see price and stock
Low-voltage button 400mA with LEDs. For recessed IP20 mounting in apparatus box c/c 60 mm. For surface mounting box 35mm is used. For conventional relays with operational current 12-24V A/C and 12-30V D/C.
- Article number: 1821184
- Suppl. article no: WDE002394
- Ean no: 3606480207082
- Material class QH170A
Technical data
- Packagin Size: 1 ST/10 ST
- Operating method: Push button
- Number of contacts as normally open contact: 4
- Number of contacts as normally closed contact: 0
- Number of contacts as change-over contact: 0
- Number of revolving contacts: 0
- Contactless type: No
- With lighting: Yes
- With light source: Yes
- With signal lamp: Yes
- Type of fastening: Screw mounting
- Halogen free: Yes
- Number of rockers: 4
- Number of poles: 4
- Colour: White
- RAL-number (similar): 9003
- Nominal voltage: 24 V
- Rated current: 0.4 A
- Device height: 71 mm
- Device width: 71 mm
- Device depth: 39 mm
- Min. depth of built-in installation box: 35 mm
- Suitable for degree of protection (IP): IP20
- Impact strength: IK02
- Label space/information surface: No
- Imprint: None
- Material: Plastic
- Material quality: Thermoplastic
- Model: Group push button
- Assembly arrangement: Basic element with central cover plate
- Mounting method: Flush-mounted
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- Anti-bacterial treatment: No
- Connection type: Screwed terminal
- Product series: Exxact
- REACH Date: 2025-07-18
- REACH contains candidate substances: Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
