ÖÖ - Strömställare Vipptryckknapp

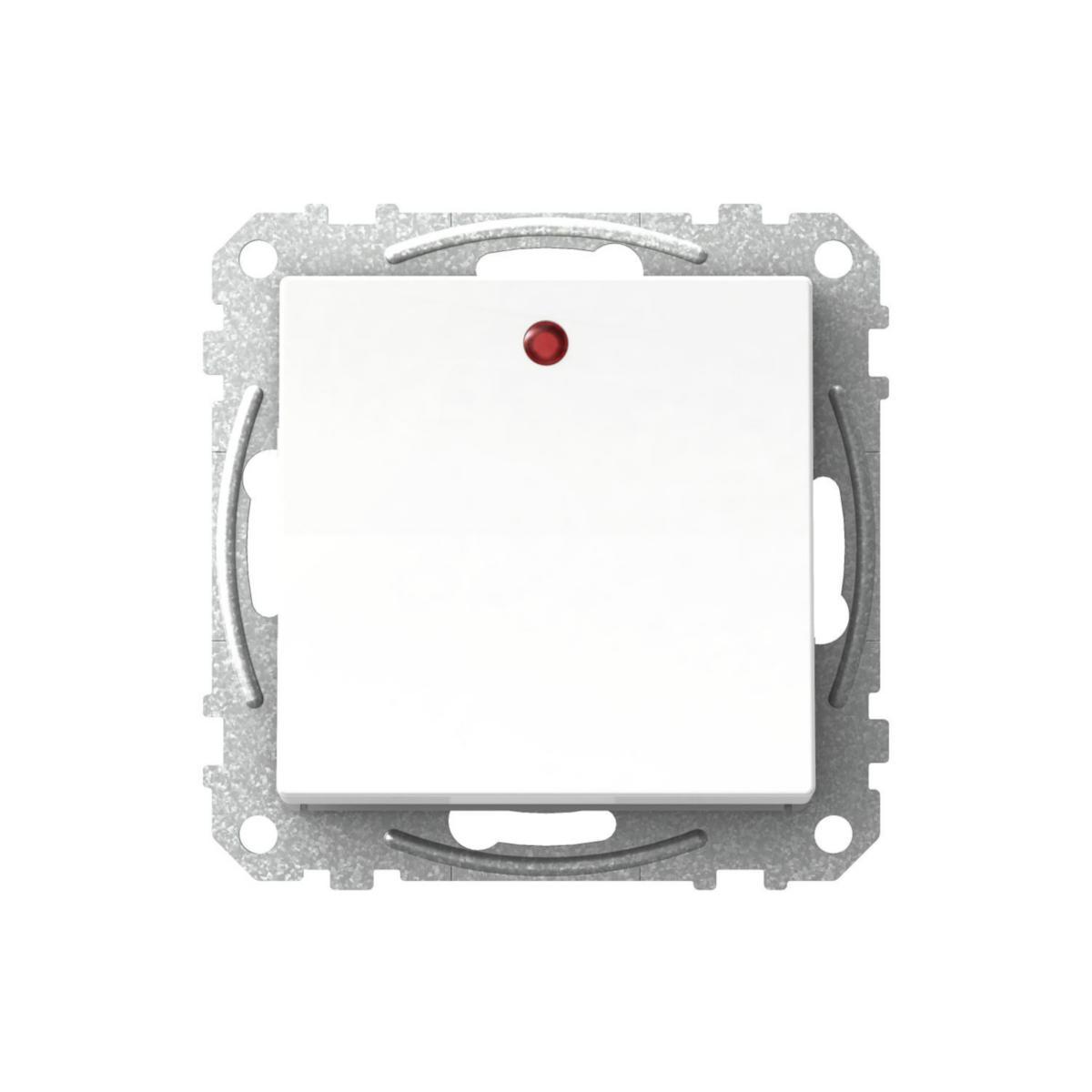

P-BUTTON SEP LAMP WH EXXACT

Article number:

1820151

Suppl. article no:

WDE002151

‌
‌
‌

‌
‌

to see price and stock

Momentary pushbuttons with and without LED indication.

Technical data

Packagin Size: 1 ST/5 ST/60 ST
Design: 1 -pole, with LED (sep lamp circuit)
Operating method: Rocker
Number of contacts as normally open contact: 1
Number of contacts as normally closed contact: 0
Number of contacts as change-over contact: 0
Number of revolving contacts: 0
Contactless type: No
With lighting: No
Separate lamp circuit: Yes
With light source: No
With signal lamp: No
Type of fastening: Screw mounting
Halogen free: Yes
Number of rockers: 1
Number of poles: 2
Colour: White
RAL-number (similar): 9003
Nominal voltage: 250 V
Rated current: 16 A
Device height: 71 mm
Device width: 71 mm
Device depth: 31 mm
Min. depth of built-in installation box: 15 mm
Suitable for degree of protection (IP): IP21
Impact strength: IK03
Label space/information surface: No
Imprint: None
Material: Plastic
Material quality: Thermoplastic
Model: Single push button
Assembly arrangement: Basic element with central cover plate
Mounting method: Flush-mounted
Transparent: No
Surface finishing: Glossy
Surface protection: Untreated
Monitoring contact: No
Anti-bacterial treatment: No
Connection type: Push-in clamp
Product series: Exxact
REACH Date: 2025-07-18
REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
REACH Information obligation: Yes
