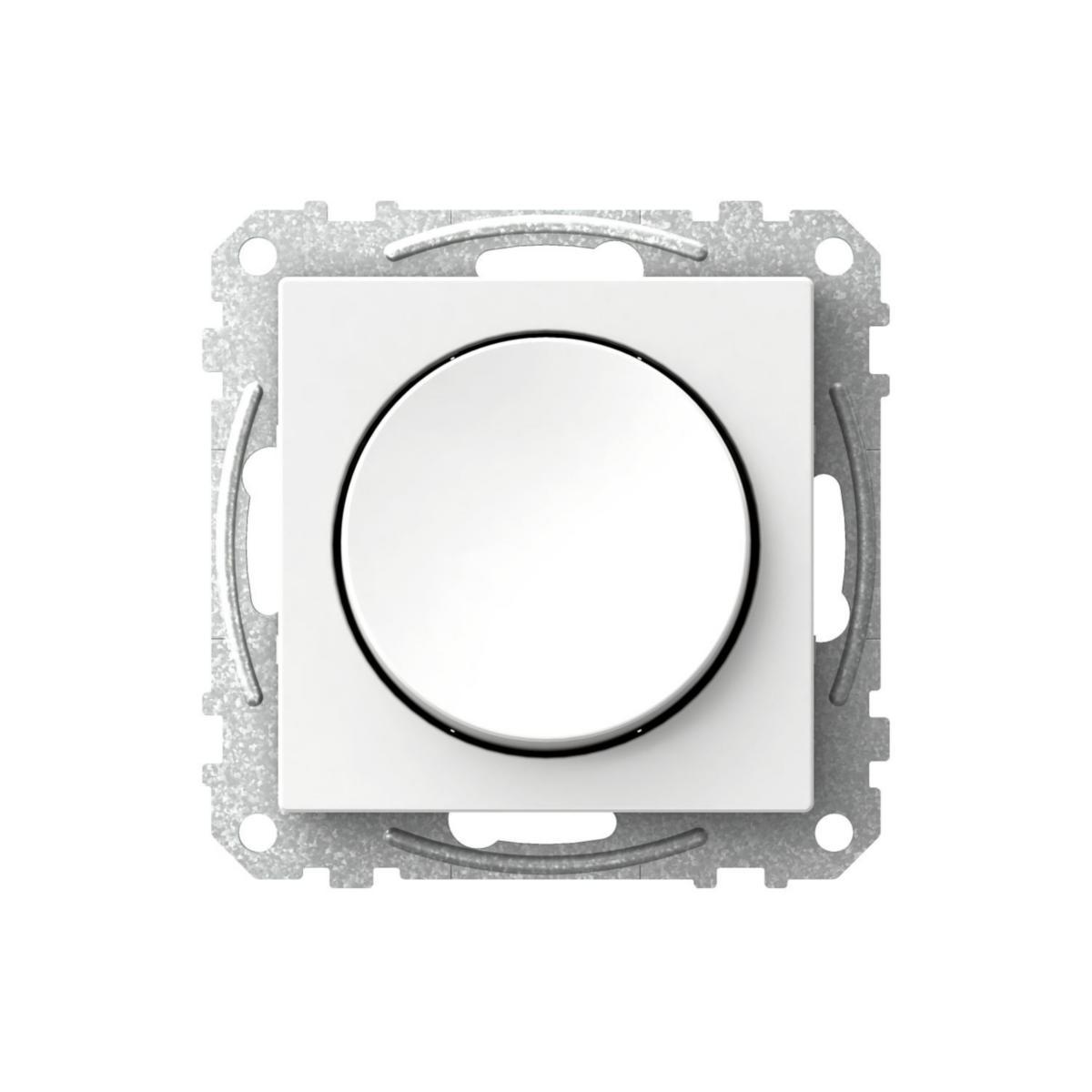

Switch Exxact with round rocker switch White
SW TWO WAYSCREWLW EXXACT ROUND DESIGN
Article number: Suppl. article no:
1820122
WDE002321
to see price and stock
Switch with round white rocker switch, for recessed IP20 mounting in
apparatus box c/c 60 or externally in surface-mounted box 21 mm.
Quick connection, snap fastening of rocker switch, screw fastening of the centre plate.
The switches have two neutral bridging clamps except for on; Double trap (connection 6+6).
It is possible to change the centre plate to a transparent colour insert or one in brushed steel.
Supplied without claws. Klo-kit can be ordered separately. Supplemented by optional Exxact frame
apparatus box c/c 60 or externally in surface-mounted box 21 mm.
Quick connection, snap fastening of rocker switch, screw fastening of the centre plate.
The switches have two neutral bridging clamps except for on; Double trap (connection 6+6).
It is possible to change the centre plate to a transparent colour insert or one in brushed steel.
Supplied without claws. Klo-kit can be ordered separately. Supplemented by optional Exxact frame
- Article number: 1820122
- Suppl. article no: WDE002321
- Ean no: 3606480201912
- Material class QH170A
Technical data
- Packagin Size: 1 ST/5 ST/75 ST
- Type: WDE002321
- Product series: Exxact
- Wiring system: Two-way switch
- Operating method: Rocker/button
- Number of rockers: 1
- Colour: White
- RAL-number (similar): 9003
- Lighting: No
- Function lighting: Other
- Connection type: Push-in clamp
- Rated current: 16 A
- Colour of switch operator: White
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 33 mm
- Built-in depth: 15 mm
- Switching current for fluorescent lamps: 16 AX
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- Type of lighting: Other
- With mounting plate: Yes
- Label space/information surface: No
- Anti-bacterial treatment: No
- Heating switch: No
- REACH Date: 2025-07-18
- REACH contains candidate substances: Triphenyl phosphate
- REACH Information obligation: Yes
