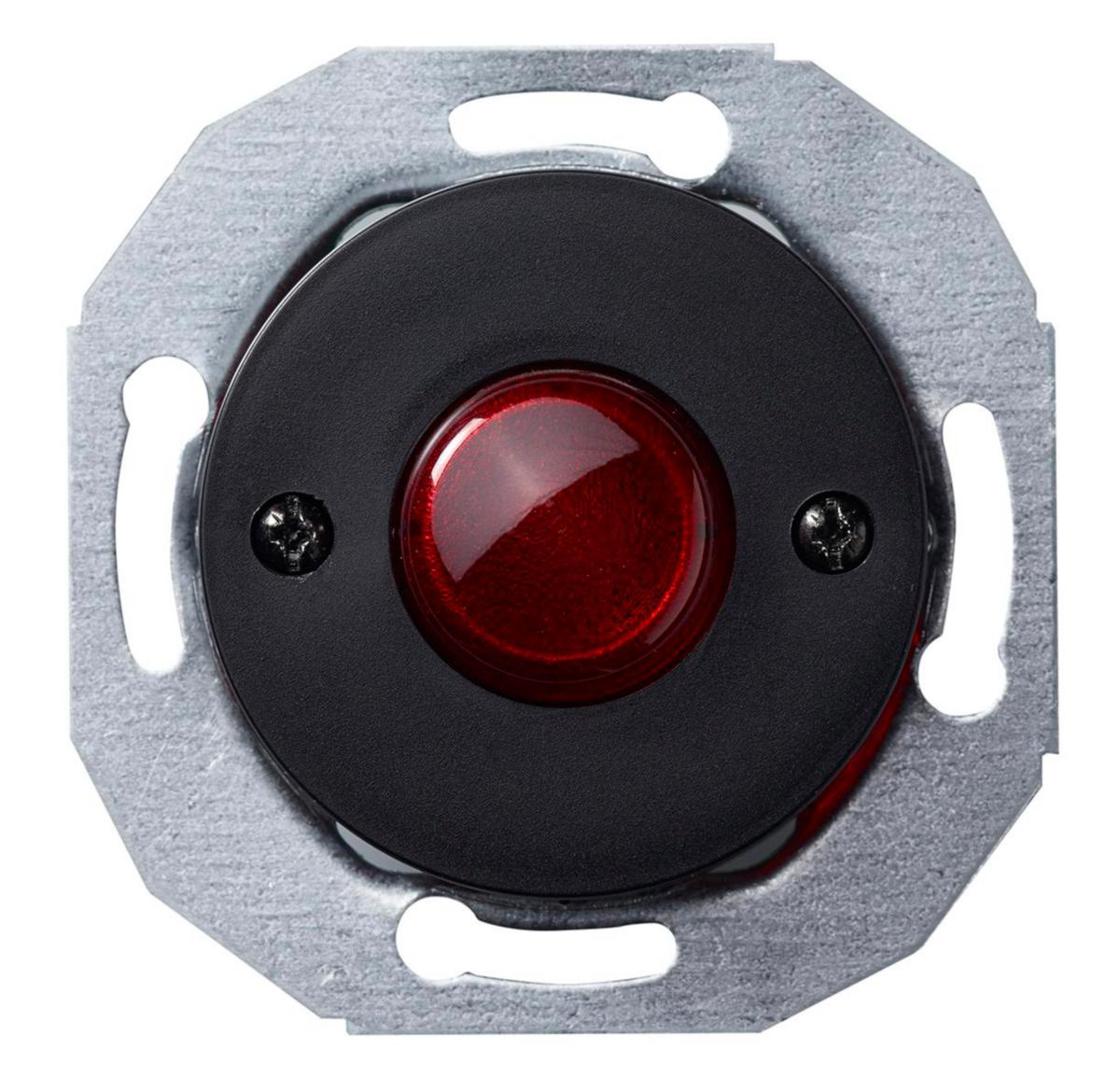

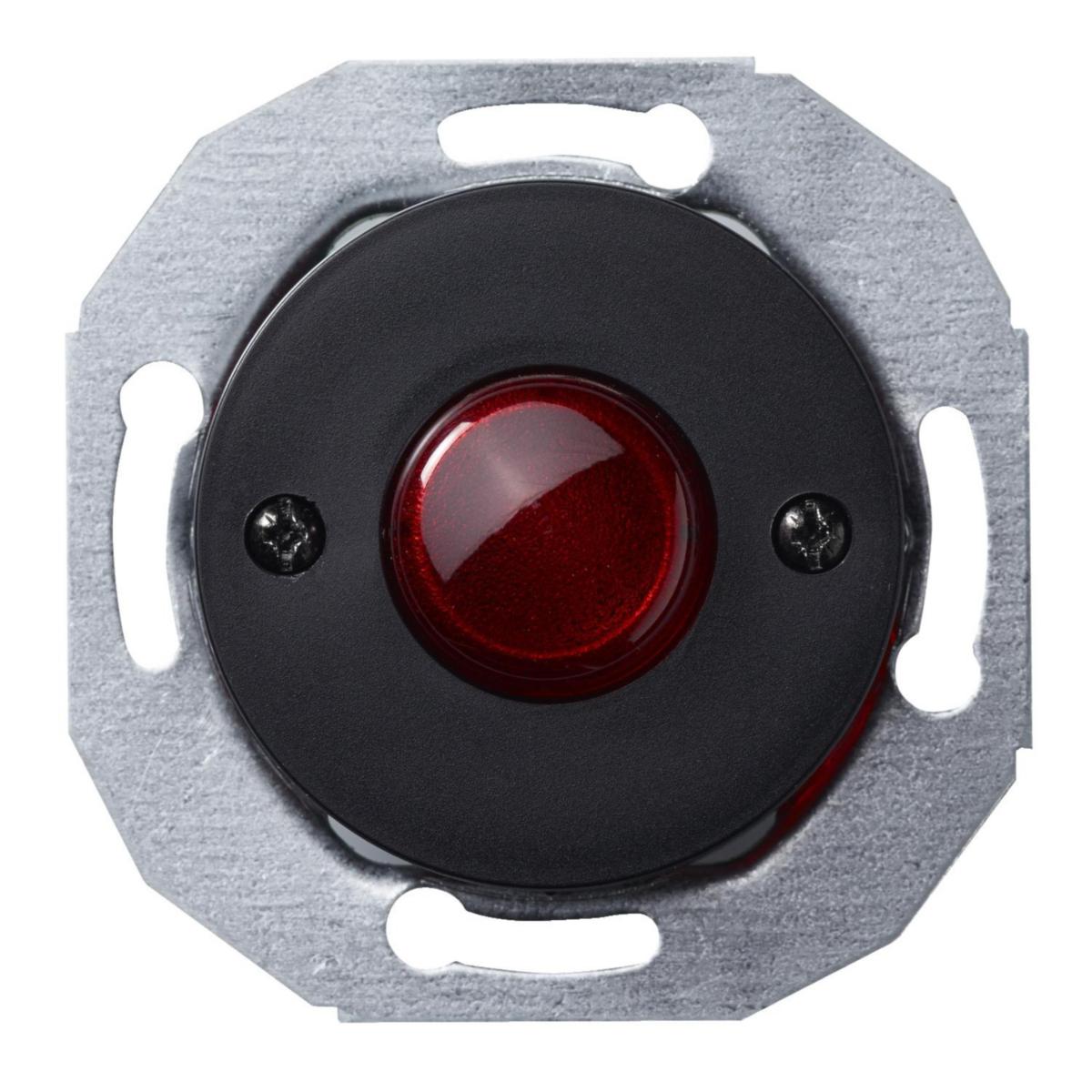

Parallel pushbutton with lamp 1A 230V without frame, Renova
PARALLELL PB 1-POLE BK KOMPLETTERA MED VALFRI RAM
Article number: Suppl. article no:
1820069
WDE011248
to see price and stock
Renova equipment is available in two colours – black and white
These can be supplemented with frames and covers in metallised or marbled versions. Common for all: modern technology for the latest
everyday electronics is under the cover, form dimmers, timers and motion detectors to broadband connections. For recessed mounting in apparatus boxes incl. fixing claws.
Screw connections ans two bridging clamps. Always delivered without a frame
These can be supplemented with frames and covers in metallised or marbled versions. Common for all: modern technology for the latest
everyday electronics is under the cover, form dimmers, timers and motion detectors to broadband connections. For recessed mounting in apparatus boxes incl. fixing claws.
Screw connections ans two bridging clamps. Always delivered without a frame
- Article number: 1820069
- Suppl. article no: WDE011248
- Ean no: 3606480660931
- Material class QH110A
Technical data
- Packagin Size: 1 ST/5 ST/50 ST
- Model: Single push button
- Colour: Black
- Number of poles: 1
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 0
- Number of revolving contacts: 0
- With lighting: Yes
- With light source: Yes
- With signal lamp: Yes
- Number of rockers: 1
- Imprint: None
- Device width: 71 mm
- Device depth: 41 mm
- Min. depth of built-in installation box: 24 mm
- Label space/information surface: No
- RAL-number (similar): 9005
- Halogen free: Yes
- Device height: 71 mm
- Suitable for degree of protection (IP): IP20
- Operating method: Push button
- Material: Plastic
- Material quality: Thermoplastic
- Assembly arrangement: Basic element with central cover plate
- Mounting method: Flush-mounted
- Nominal voltage: 250 V
- Rated current: 1 A
- Transparent: No
- Surface finishing: Matt
- Surface protection: Untreated
- Monitoring contact: No
- Type of fastening: Mounting with claw and screw
- Anti-bacterial treatment: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Impact strength: IK03
- Connection type: Push-in clamp
- Product series: Renova
- REACH Date: 2025-07-18
- REACH contains candidate substances: Triphenyl phosphate
- REACH Information obligation: Yes
