Hager

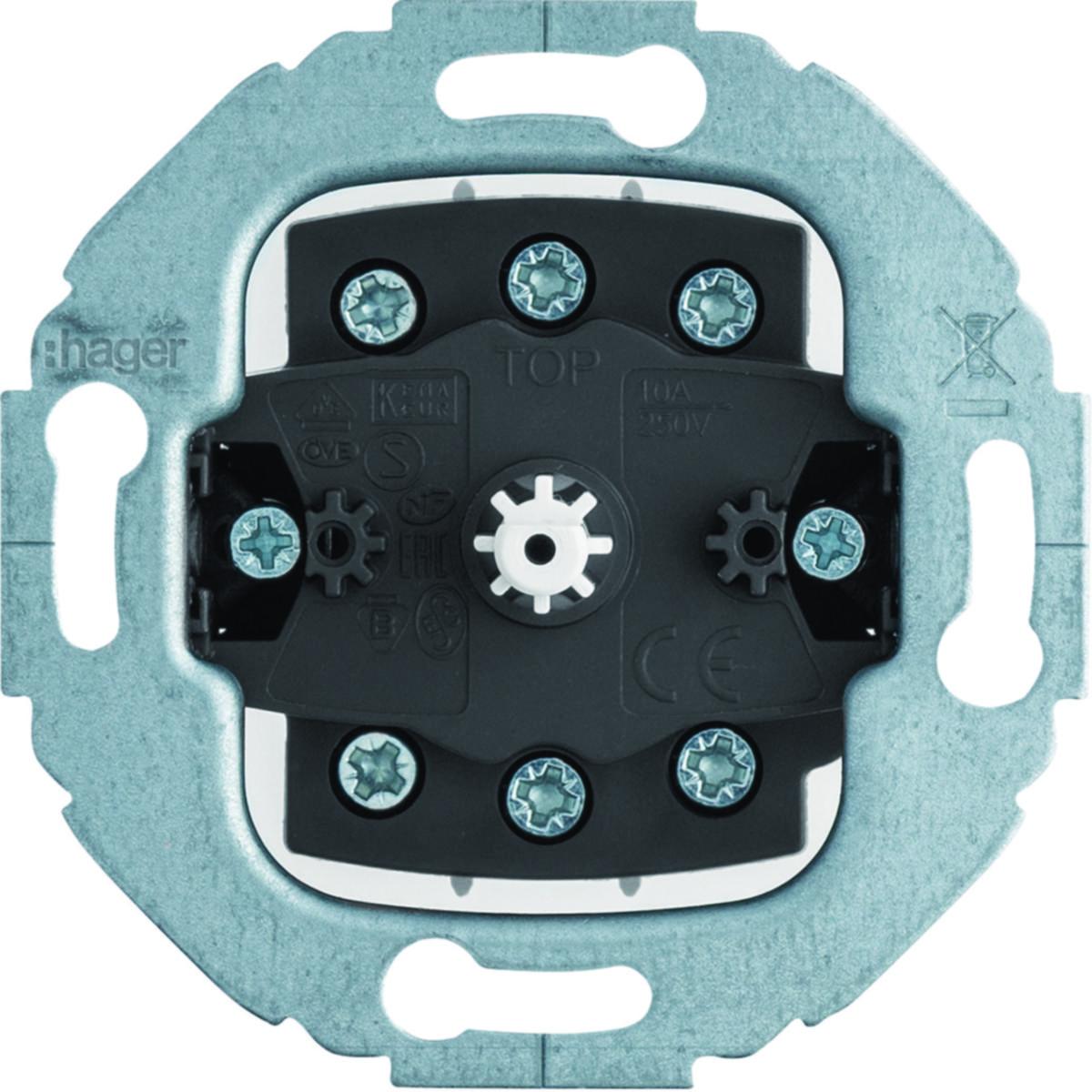

Rotary pushbutton 2-pole 1930
GROUP SPRING RETURN PB
Article number: Suppl. article no:
1802030
WDE383803
to see price and stock
Swivel pushbutton, 2-pin, insulated input clamps.
- Article number: 1802030
- Suppl. article no: WDE383803
- Ean no: 3250610090800
- Material class QH8510
- This is an alternative to item 1801976
Technical data
- Packagin Size: 1 PCS/32 PCS/768 PCS
- Model: Group push button
- Colour: Other
- Number of poles: 2
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 1
- Number of revolving contacts: 1
- With lighting: No
- With light source: No
- With signal lamp: No
- Number of rockers: 0
- Imprint: None
- Device width: 71 mm
- Device depth: 42 mm
- Min. depth of built-in installation box: 35 mm
- Label space/information surface: No
- RAL-number (similar): 7035
- Halogen free: Yes
- Device height: 71 mm
- Suitable for degree of protection (IP): IP20
- Operating method: Other
- Material: Other
- Material quality: Other
- Assembly arrangement: Basic element
- Mounting method: Flush-mounted
- Nominal voltage: 250 V
- Rated current: 10 A
- Transparent: No
- Surface finishing: Matt
- Surface protection: Untreated
- Monitoring contact: No
- Number of modules (module system): 0
- Type of fastening: Mounting with claw and screw
- Anti-bacterial treatment: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Contactless type: No
- IFTTT support available: No
- Impact strength: IK07
- Operating principle: Electromechanical
- Connection type: Screwed terminal
- Product series: 1930
- REACH Date: 2025-06-02
- REACH Information obligation: No
