AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsSwitchesJalusi switch
Elko
Jalusibryatre RS recessed
RS16/2 MI F/EL SHUTTER PW EKO30109
Article number: Suppl. article no:
1848655
EKO30109
to see price and stock

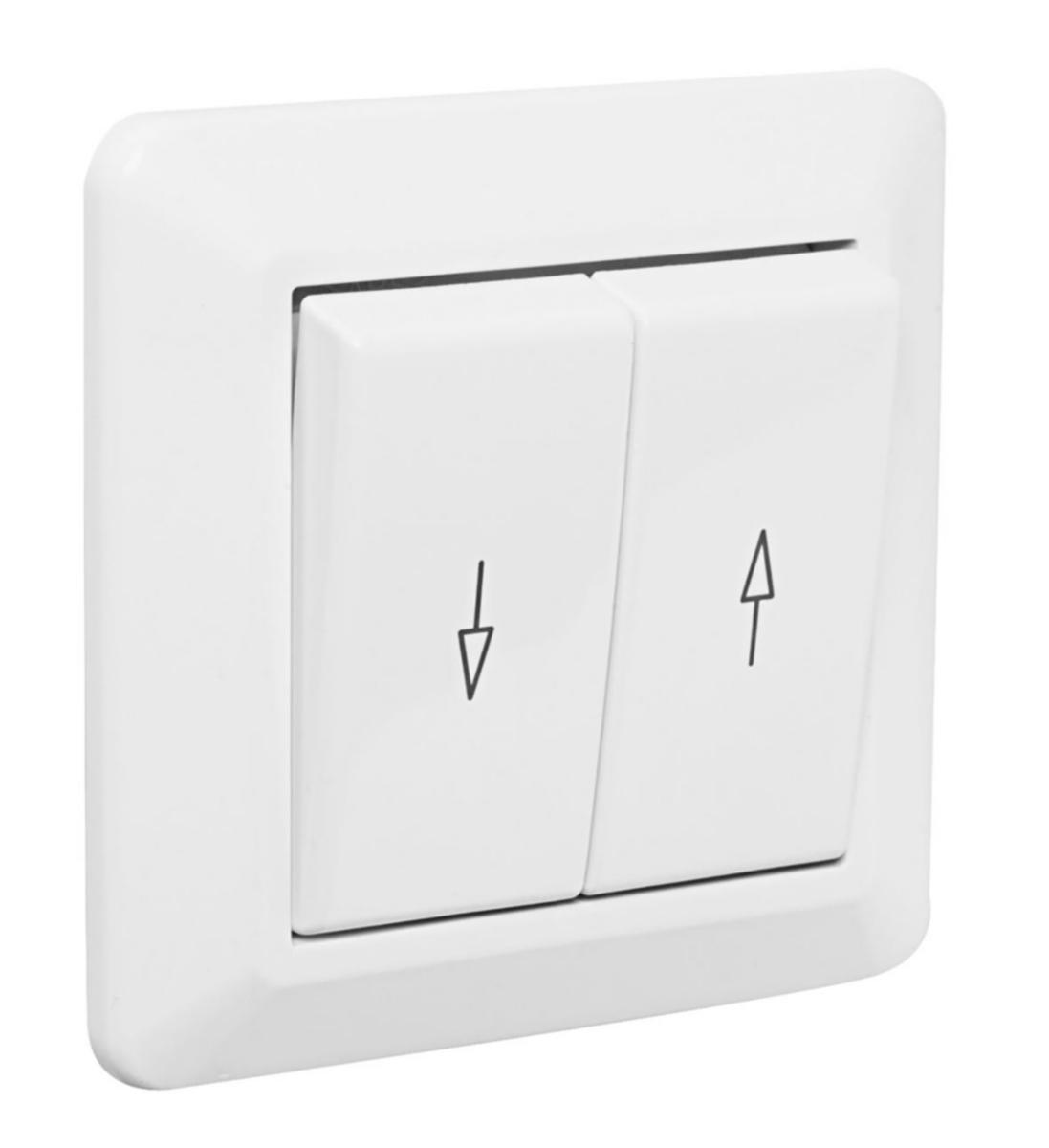

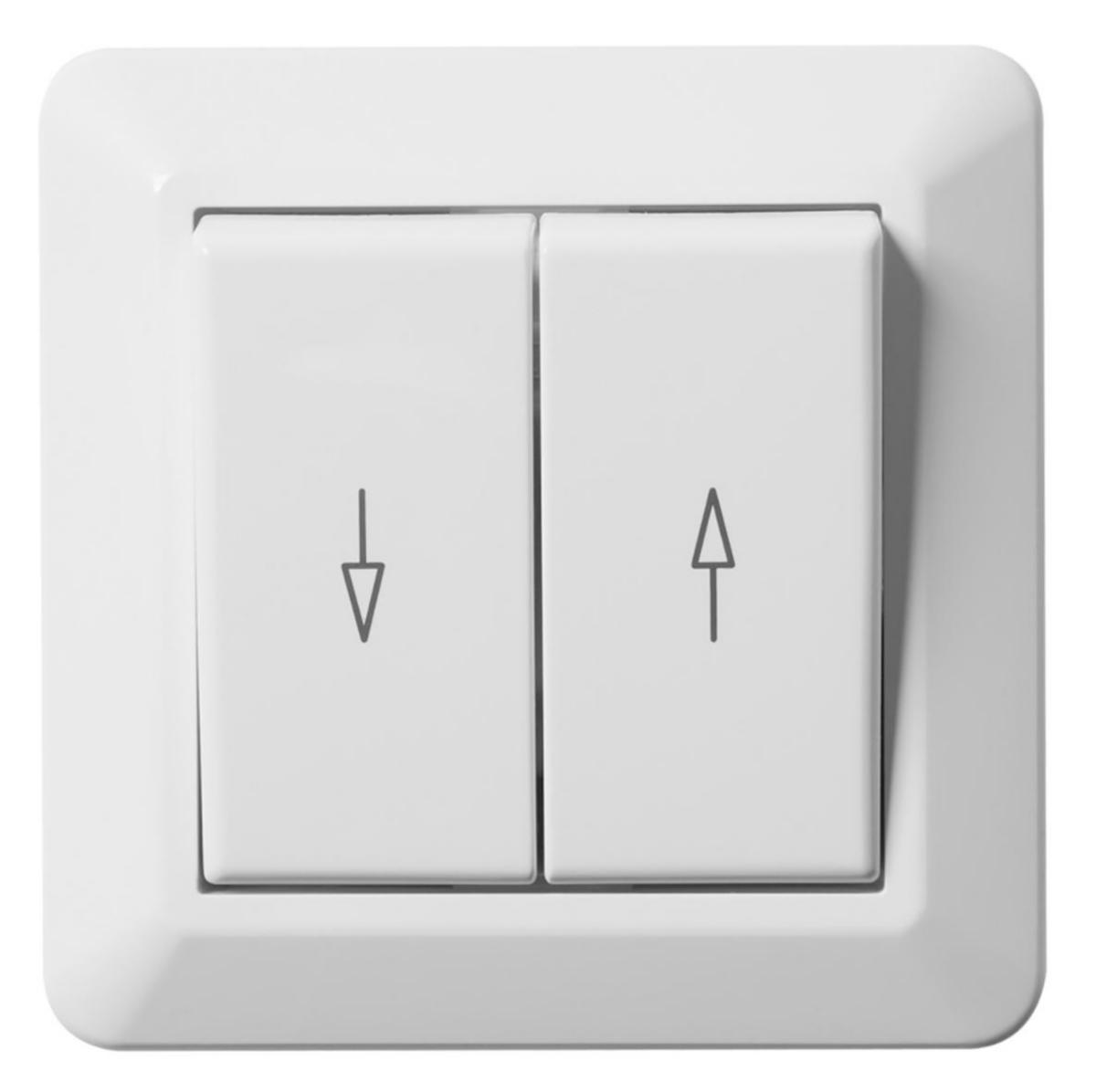

Switch for awning or shutter with screw connection for flush mounting
- Article number: 1848655
- Suppl. article no: EKO30109
- Ean no: 7020161301092
- Material class QH3300
Technical data
- Packagin Size: 1 ST/5 ST/1000 ST
- Product series: RS
- Model: 2-pole switch and push switch
- Colour: White
- RAL-number (similar): 9003
- For venetian blinds: Yes
- For awnings: Yes
- For roller blinds: Yes
- Number of buttons: 2
- Number of poles: 3
- Electronic controllable: No
- With electrical latch: No
- With mechanical locking: Yes
- Operating method: Rocker
- Device width: 84 mm
- Min. depth of built-in installation box: 12 mm
- Device depth: 22 mm
- Device height: 84 mm
- Built-in height: 50 mm
- Built-in width: 50 mm
- Halogen free: Yes
- Suitable for degree of protection (IP): IP20
- Label space/information surface: No
- Material: Plastic
- Material quality: Thermoplastic
- Mechanical controllable: Yes
- Mounting method: Flush-mounted
- Nominal voltage: 250 V
- Rated current: 16 A
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- Built-in depth: 11.5 mm
- Connection type: Screwed terminal
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- REACH Date: 2024-07-31
- Max. switching power: 3600 W
- Frequency: 50-60 Hz
- With memory function: No
- Switch-off protection: No
- With Astro program: No
- Substation input: No
- Random generator: No
- REACH Information obligation: No
- Suitable for wind sensor: No
- Suitable for rain sensor: No
- With glass breaking detector connection: No
- With brightness sensor connection: No
- Integrated timer: No
