Schneider Electric

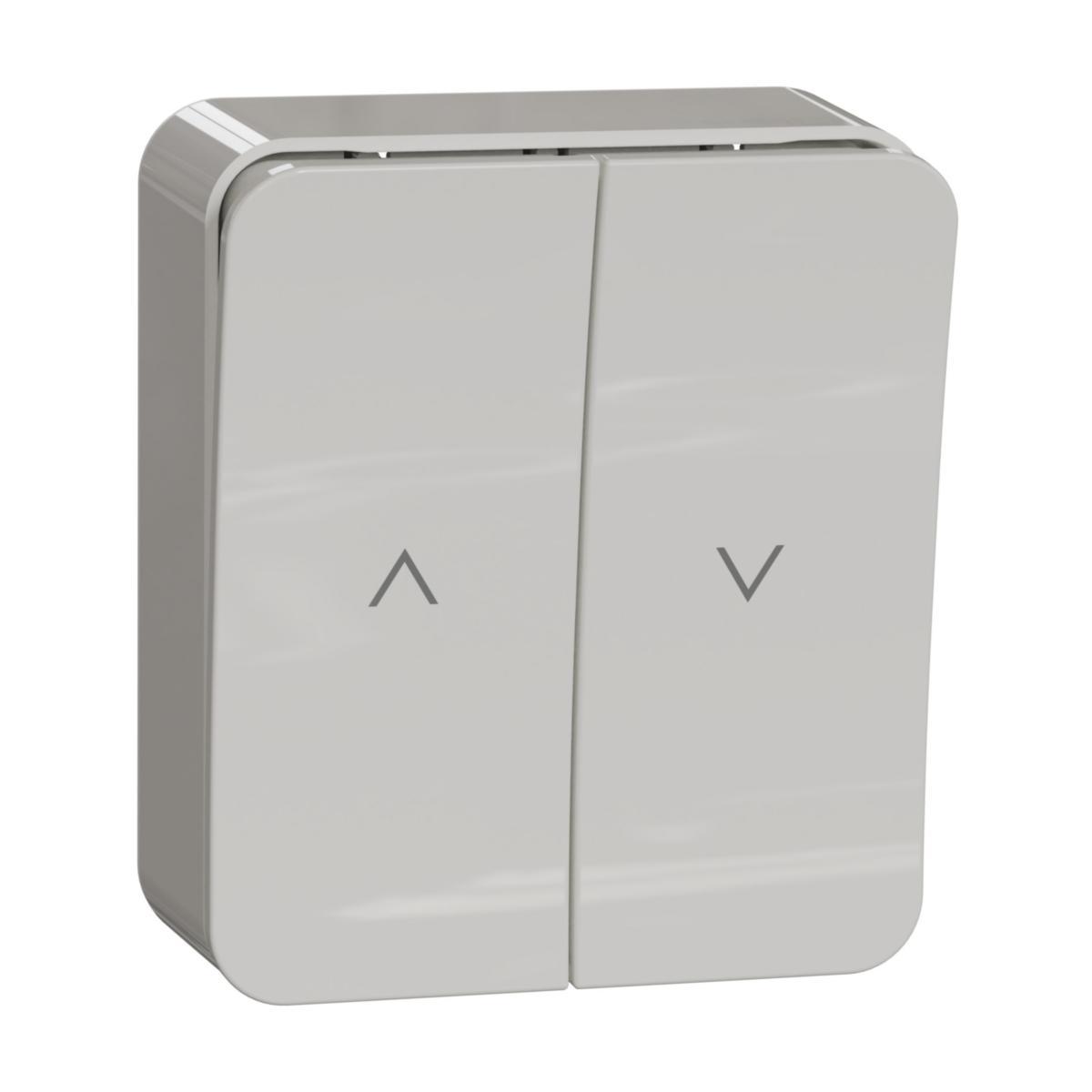

Shutter switch Exxact surface-mounted
PB JALOUSIE SCREWLESS
Article number: Suppl. article no:
1820285
WDE015554
to see price and stock
Shutter switch for surface installation with integrated base plate. 16AX, 250V and with 2 neutral switching terminals. Quick connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below. Possibility of further screw fastening of the lid.
- Article number: 1820285
- Suppl. article no: WDE015554
- Ean no: 3606489504267
- Material class QH160A
Technical data
- Packagin Size: 1 ST/5 ST/60 ST
- Product series: Exxact
- Model: 1-pole push button
- Colour: White
- RAL-number (similar): 9003
- For venetian blinds: No
- For awnings: No
- For roller blinds: Yes
- Number of buttons: 2
- Number of poles: 1
- Electronic controllable: No
- Operating method: Rocker
- Device width: 65 mm
- Device depth: 27 mm
- Device height: 75 mm
- Halogen free: Yes
- Suitable for degree of protection (IP): IP20
- Label space/information surface: No
- Material: Plastic
- Material quality: Thermoplastic
- Mechanical controllable: No
- Assembly arrangement: Basic element with complete housing
- Mounting method: Surface mounted
- Nominal voltage: 250 V
- Rated current: 16 A
- Transparent: No
- Type of fastening: Mounting with screw
- Surface finishing: Glossy
- Surface protection: Untreated
- Connection type: Push-in clamp
- REACH Date: 2025-07-18
- REACH contains candidate substances: Triphenyl phosphate
- REACH Information obligation: Yes
