Schneider Electric

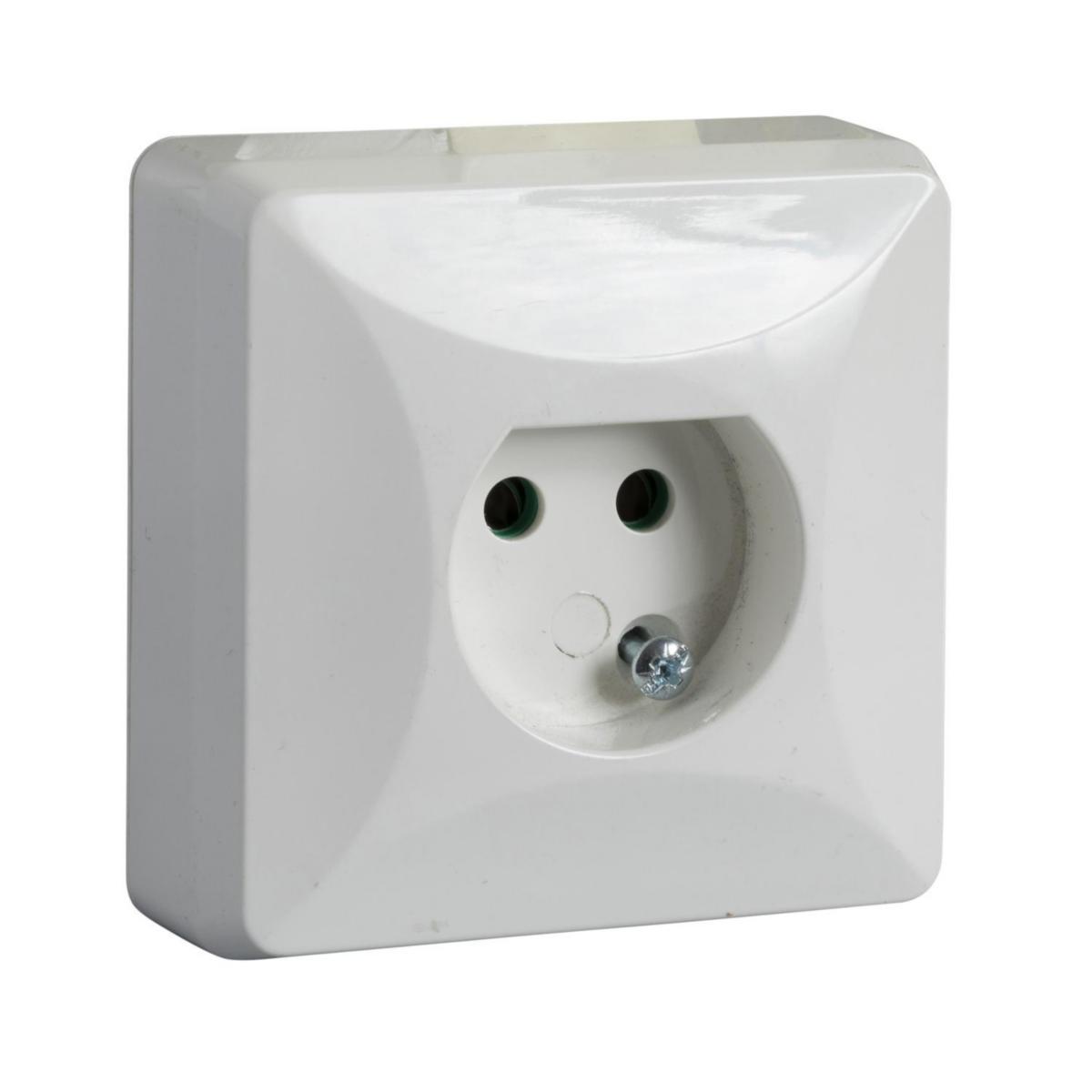

Lamp socket 1-way rectangular for surface-mounting
LAMP SOCKET 2-POL EUNGROUNDED
Article number: Suppl. article no:
1895082
189508200
to see price and stock
For wall or ceiling mounting. 2-pole and 2 pole with earthing have quick connection of wires, 3-pole has screw connection. Integrated bottom plate (not 3-pole). Made of polar white thermoplastic.
- Article number: 1895082
- Suppl. article no: 189508200
- Ean no: 6438054018520
- Material class QH280A
Technical data
- Packagin Size: 1 ST/10 ST/60 ST/1440 ST
- Number of poles: 2
- Model: Without protective contact
- Colour: White
- Number of units: 1
- Device width: 65 mm
- Device height: 65 mm
- Device depth: 26 mm
- Nominal current: 6 A
- Nominal voltage: 250 V
- RAL-number (similar): 9010
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Mounting method: Surface mounted
- Transparent: No
- Surface protection: Untreated
- Suitable for degree of protection (IP): IP20
- Type of fastening: Mounting with screw
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Fault current protection: No
- Frequency: 50-60 Hz
- Eject-mechanism: No
- Lockable: No
- With miniature fuse: No
- With function lighting: No
- With enhanced contact protection: No
- With hinged lid: No
- With orientation lighting: No
- Label space/information surface: No
- Rated fault current: 0 mA
- Rotated central insert: No
- Special power supply: No special power supply
- For heavy conditions according to VDE: No
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
