Elko

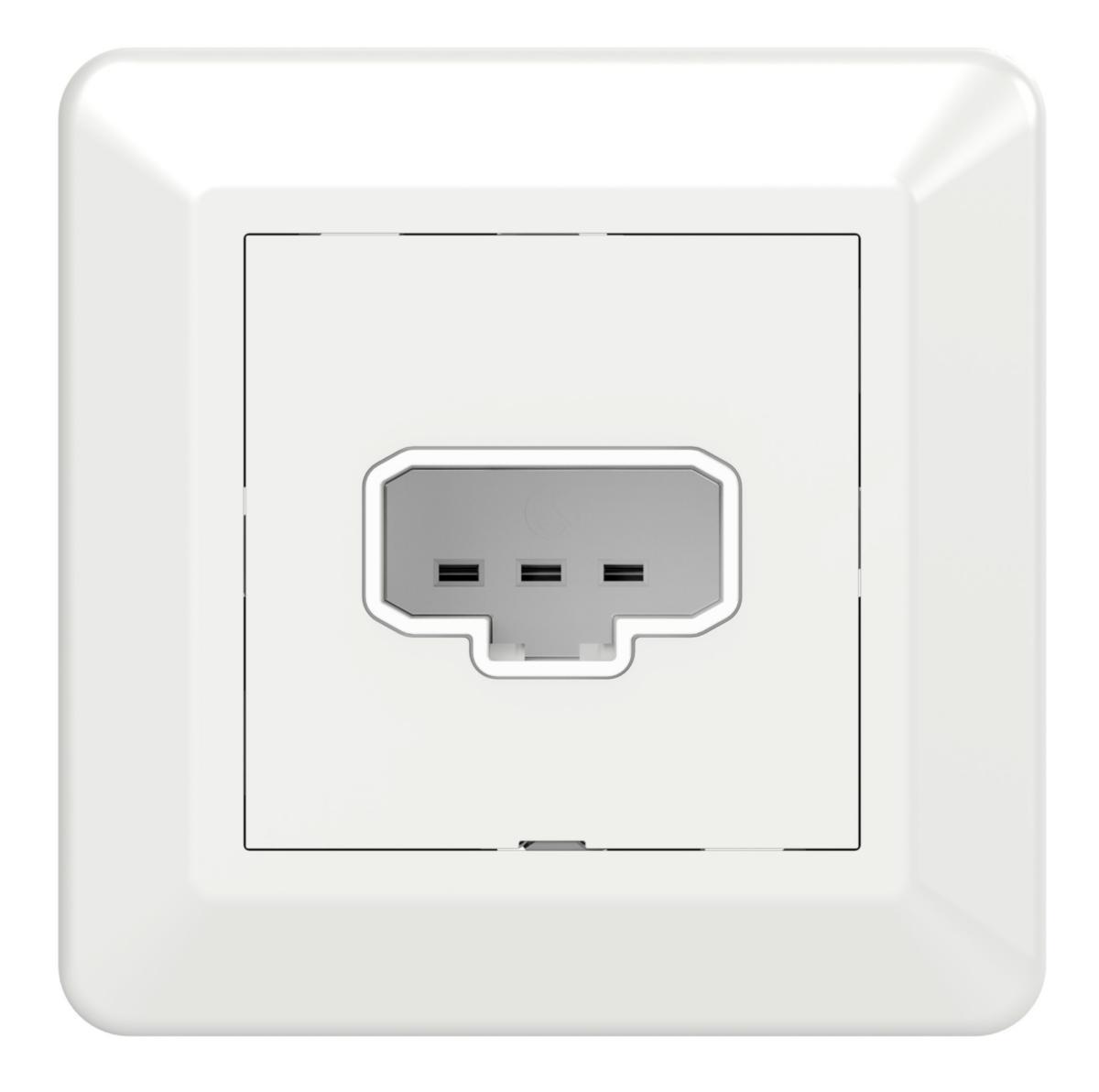

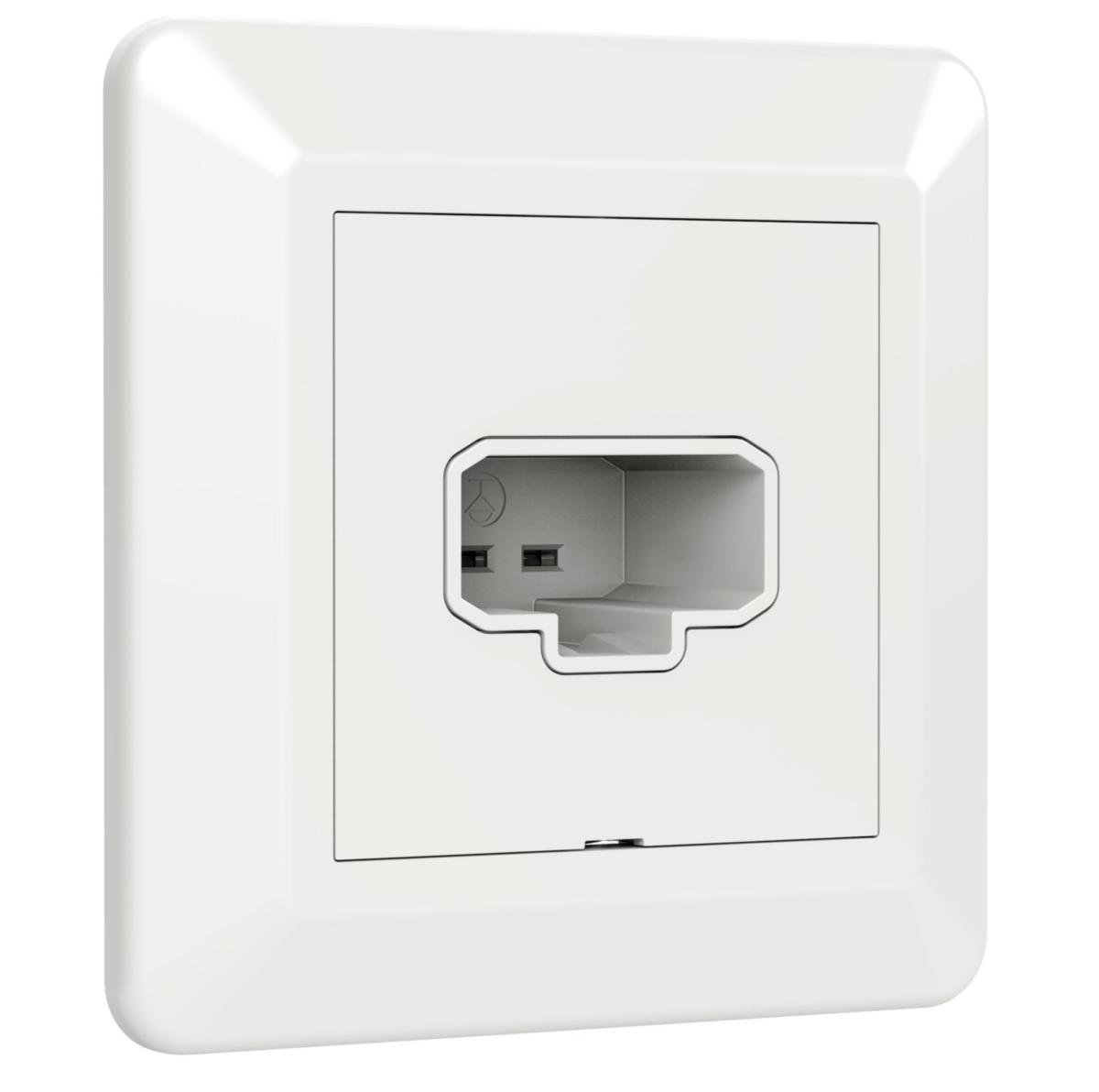

Lamp socket wall DCL. Elko RS
WALL OUTL. DCL RS16 PW EKO07373
Article number: Suppl. article no:
1885143
EKO07373
to see price and stock
DCL means Device for Connection of Luminaires, and is a plug and socket system for connecting the fixed lighting equipment. DCL wall socket in ELKO RS. Quick Connect. Lamp socket for wall. Fits all ELKO combination frames.
- Article number: 1885143
- Suppl. article no: EKO07373
- Ean no: 7020160737304
- Material class QH5200
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Model: DCL
- Colour: White
- Number of units: 1
- Number of socket outlets switchable: 1
- Number of phases: 1
- Number of socket outlets: 1
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 28 mm
- Nominal current: 6 A
- Nominal voltage: 250 V
- RAL-number (similar): 9003
- With built-in USB power supply: No
- Connection type: Screwed terminal
- Surface finishing: Glossy
- Mounting method: Flush-mounted
- Transparent: No
- Surface protection: Untreated
- Suitable for degree of protection (IP): IP20
- Type of fastening: Mounting with screw
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- With on/off switch: No
- Insulated mounting: Yes
- With loop through function: No
- Fault current protection: No
- Frequency: 50-60 Hz
- Eject-mechanism: No
- Lockable: No
- With miniature fuse: No
- With function lighting: No
- With enhanced contact protection: No
- With hinged lid: No
- With orientation lighting: No
- Label space/information surface: No
- Rotated central insert: No
- Special power supply: None
- Number of active contacts (flat): 2
- Number of modules (module system): 0
- Anti-bacterial treatment: No
- Imprint/indication: None
- For heavy conditions according to VDE: No
- With signal lamp: No
- Min. depth of built-in installation box: 29 mm
- Overvoltage protection: No
- Metallic colour: No
- Concurrently switching neutral conductor: No
- Protective contact: Flat
- Compliant with UK Building Regulations Part M: No
- Product series: RS
- REACH Date: 2024-07-31
- Socket outlets phase-separated: No
- REACH Information obligation: No
- Assembly arrangement: Basic element with complete housing
