Elko

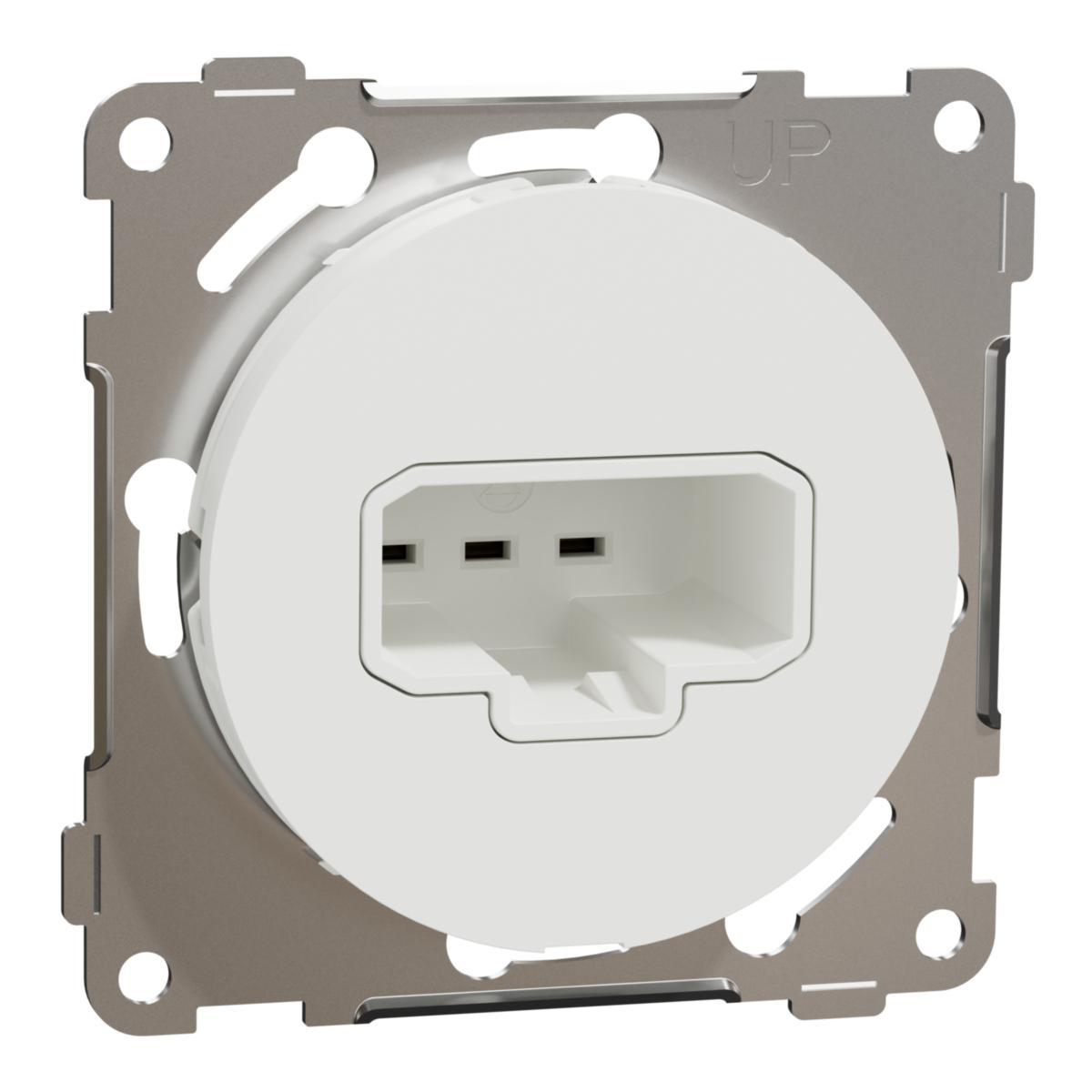

Lamp socket DCL wall, Elko One
DCL outlet for wall screwless
Article number: Suppl. article no:
1840102
EKO50087
to see price and stock
Lamp socket, ELKO, One, recessed, for wall, ceiling, mounting, 250V, IP21, screw connection.
- Article number: 1840102
- Suppl. article no: EKO50087
- Ean no: 7020160500878
- Material class QH3250
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Type: EKO50087
- Product series: One
- Model: DCL
- Number of socket outlets: 1
- Protective contact: Flat
- Socket outlets phase-separated: No
- Colour: White
- RAL-number (similar): 9003
- Connection type: Push-in clamp
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 84 mm
- Device width: 84 mm
- Device depth: 28 mm
- Lockable: No
- Number of phases: 1
- Surface finishing: Matt
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 6 A
- Nominal voltage: 230 V
- Suitable for degree of protection (IP): IP20
- Special power supply: None
- Fault current protection: No
- Frequency: 50-60 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: No
- Min. depth of built-in installation box: 28 mm
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- With built-in bluetooth speaker: No
- Concurrently switching neutral conductor: No
- With Wi-Fi signal repeater: No
- Number of loop throughs: 1
- Number of active contacts (flat): 2
- Number of active contacts (square): 0
- Number of active contacts (round): 0
- Metallic colour: No
- Assembly arrangement: Basic element with central cover plate
- Transparent: No
- REACH Date: 2024-07-31
- REACH Information obligation: No
- Compliant with UK Building Regulations Part M: No
