Lamp socket ceiling DCL RS, with DCL plug, Elko - CEILING OUTLET DCL EKO04974
/external-assets/JPEGlarge800_800/04/94/ProductImage36360494.jpg
/external-assets/JPEGlarge800_800/04/95/ProductImage36360495.jpg
Elko

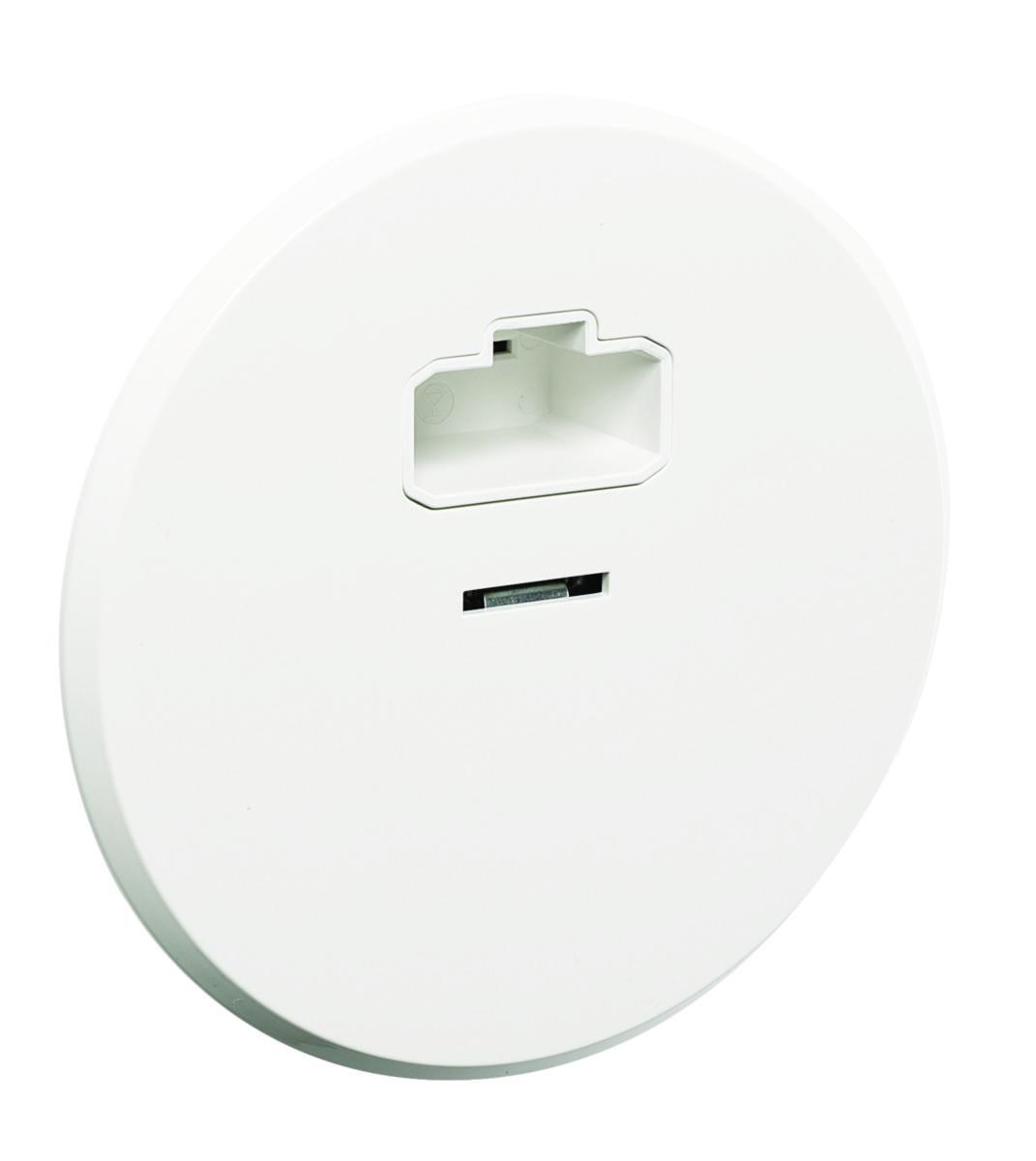

Lamp socket ceiling DCL RS, with DCL plug, Elko

CEILING OUTLET DCL EKO04974
Article number:
1895242
Suppl. article no:
EKO04974
‌
‌
‌
‌
‌
 to see price and stock
DCL means Device for Connection of Luminaires, and is a plug and socket system for connecting the fixed lighting equipment. DCL roof sockets fit all ELKO roof boxes and mounting hooks for loads up to 15 kg. If the roof box is shallower than 40 mm, separate elevation frame E18 952 43 are used.
Supplied with DCL plug. Screw connection. Mounting depth 31 mm, Max load on roof hook 15 kg.
  • Article number:
    1895242
  • Suppl. article no:
    EKO04974
  • Ean no:
    7020160497406
  • Material class
    QH5200
Technical data
  • Packagin Size: 1 PCS/50 PCS
  • Type: EKO04974
  • Design: Including DCL plug
  • Model: DCL
  • Colour: White
  • Number of phases: 1
  • Number of socket outlets: 1
  • Device width: 115 mm
  • Device height: 115 mm
  • Device depth: 39 mm
  • Nominal current: 6 A
  • Nominal voltage: 230 V
  • RAL-number (similar): 9010
  • Connection type: Screwed terminal
  • Surface finishing: Glossy
  • Mounting method: Flush-mounted
  • Transparent: No
  • Surface protection: Untreated
  • Suitable for degree of protection (IP): IP20
  • Type of fastening: Mounting with screw
  • Material: Plastic
  • Material quality: Thermoplastic
  • Halogen free: Yes
  • With on/off switch: No
  • Insulated mounting: Yes
  • With loop through function: No
  • Fault current protection: No
  • Frequency: 50-60 Hz
  • Eject-mechanism: No
  • Lockable: No
  • With miniature fuse: No
  • With function lighting: No
  • With enhanced contact protection: No
  • With hinged lid: No
  • With orientation lighting: No
  • Label space/information surface: No
  • Rotated central insert: No
  • Special power supply: None
  • Number of active contacts (flat): 2
  • Anti-bacterial treatment: No
  • Imprint/indication: None
  • With signal lamp: No
  • Min. depth of built-in installation box: 37 mm
  • Overvoltage protection: No
  • Metallic colour: No
  • Concurrently switching neutral conductor: No
  • Protective contact: Flat
  • Assembly arrangement: Basic element with complete housing
  • Socket outlets phase-separated: No
  • Product series: RS
  • REACH Date: 2024-07-31
  • REACH Information obligation: No
  • Compliant with UK Building Regulations Part M: No
  • For heavy conditions according to VDE: No
