Schneider Electric

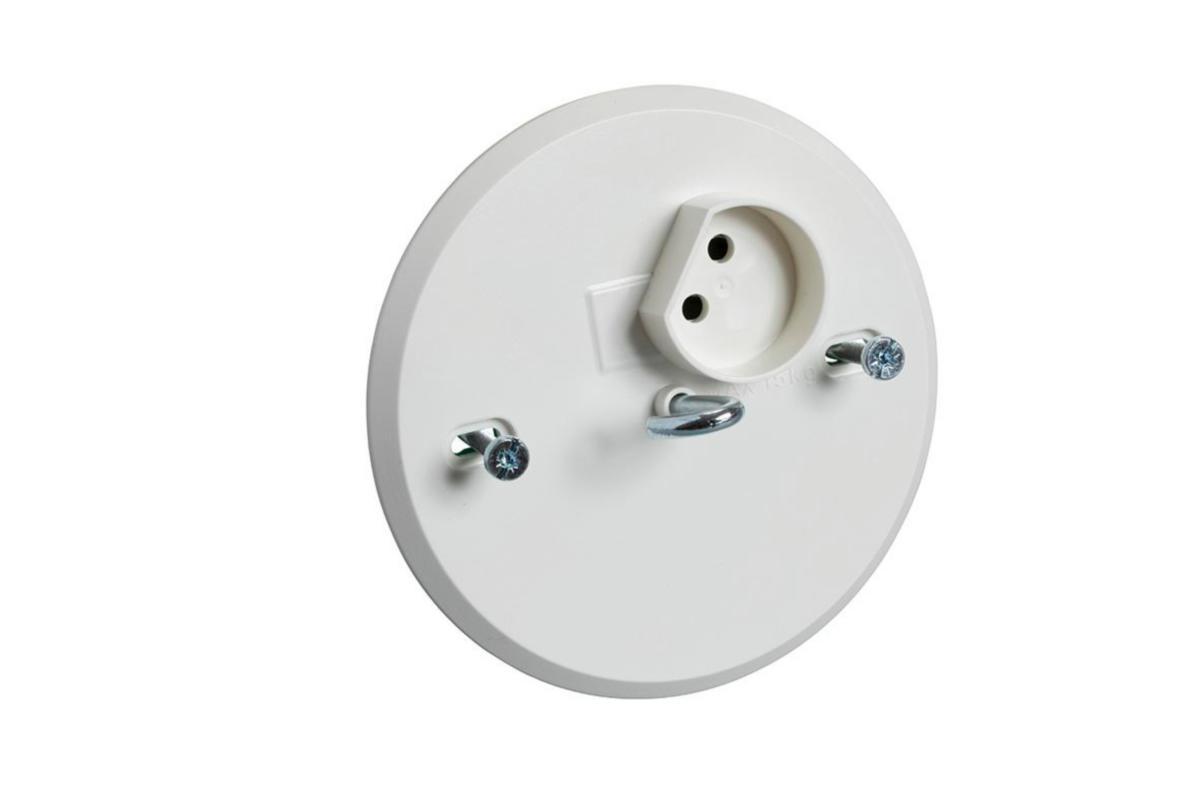

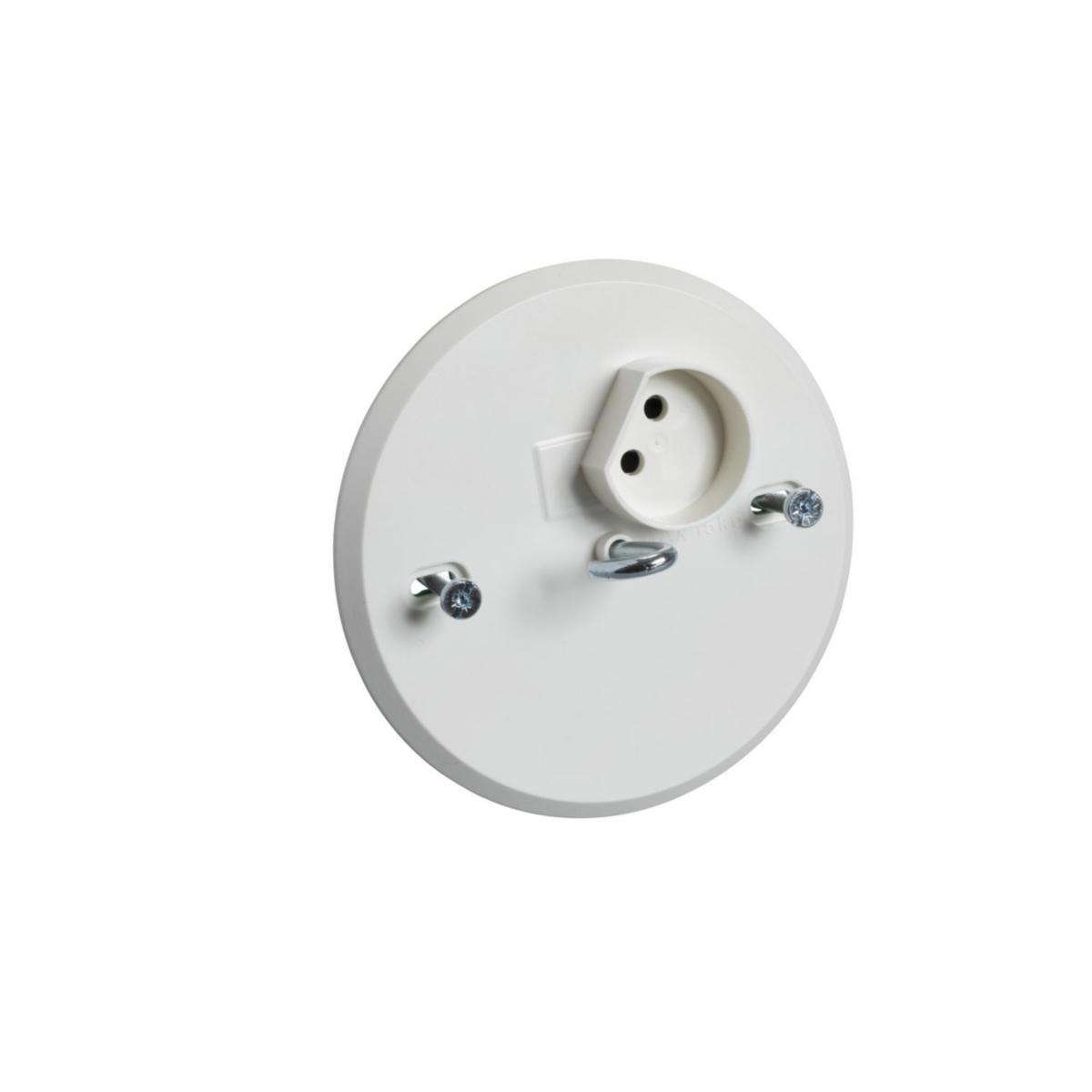

Lamp socket 1-way round for recessed mounting in ceiling
LAMPDON INFÄLLT 1-V 2-P TAK 189504200
Article number: Suppl. article no:
1895042
189504200
to see price and stock
Lamp socket Lamp socket 1-way 2-pole ungrounded for ceiling mounting. Mounted recessed in ceiling box c/c 70 mm. Has detachable hook. Polar white
- Article number: 1895042
- Suppl. article no: 189504200
- Ean no: 6438054018469
- Material class QH2800
Technical data
- Packagin Size: 1 PCS/5 PCS/60 PCS/1440 PCS
- Number of poles: 2
- Model: CEE 7/1 unearthed
- Colour: White
- Number of units: 1
- Number of phases: 1
- Number of socket outlets: 1
- Device width: 65 mm
- Device height: 65 mm
- Device depth: 26 mm
- Device diameter: 110 mm
- Nominal current: 6 A
- Nominal voltage: 250 V
- RAL-number (similar): 9010
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Mounting method: Surface mounted
- Transparent: No
- Surface protection: Untreated
- Suitable for degree of protection (IP): IP20
- Type of fastening: Mounting with screw
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- With on/off switch: No
- Insulated mounting: No
- Impact strength: IK03
- With loop through function: Yes
- Fault current protection: No
- Frequency: 50-60 Hz
- Eject-mechanism: No
- Lockable: No
- With miniature fuse: No
- With function lighting: No
- With enhanced contact protection: No
- With hinged lid: No
- With orientation lighting: No
- Label space/information surface: No
- Rated fault current: 0 mA
- Rotated central insert: No
- Special power supply: None
- Number of active contacts (round): 2
- Anti-bacterial treatment: No
- For heavy conditions according to VDE: No
- With signal lamp: No
- Min. depth of built-in installation box: 28 mm
- Overvoltage protection: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Metallic colour: No
- Concurrently switching neutral conductor: No
- Protective contact: None
- Compliant with UK Building Regulations Part M: No
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- Socket outlets phase-separated: No
- REACH Information obligation: Yes
- Assembly arrangement: Basic element with complete housing
