Combination frames, Plus

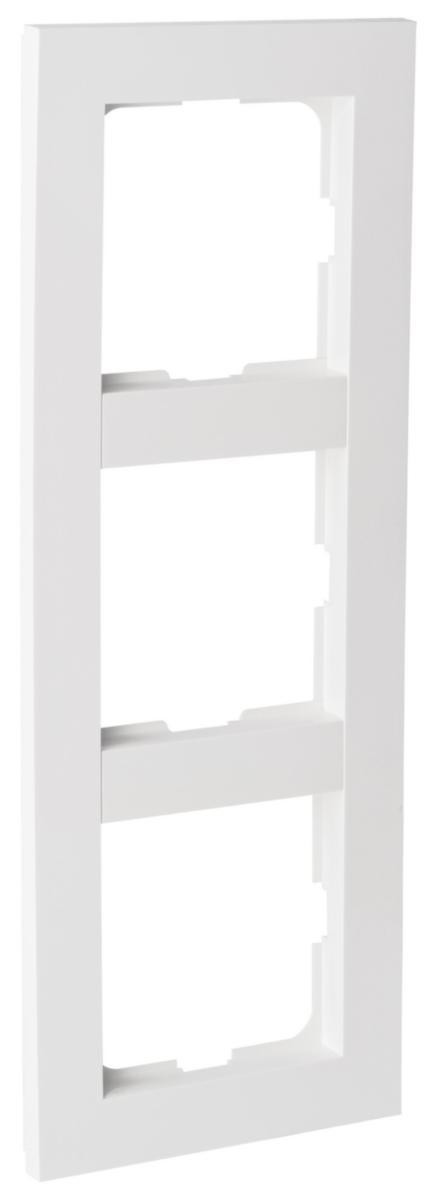

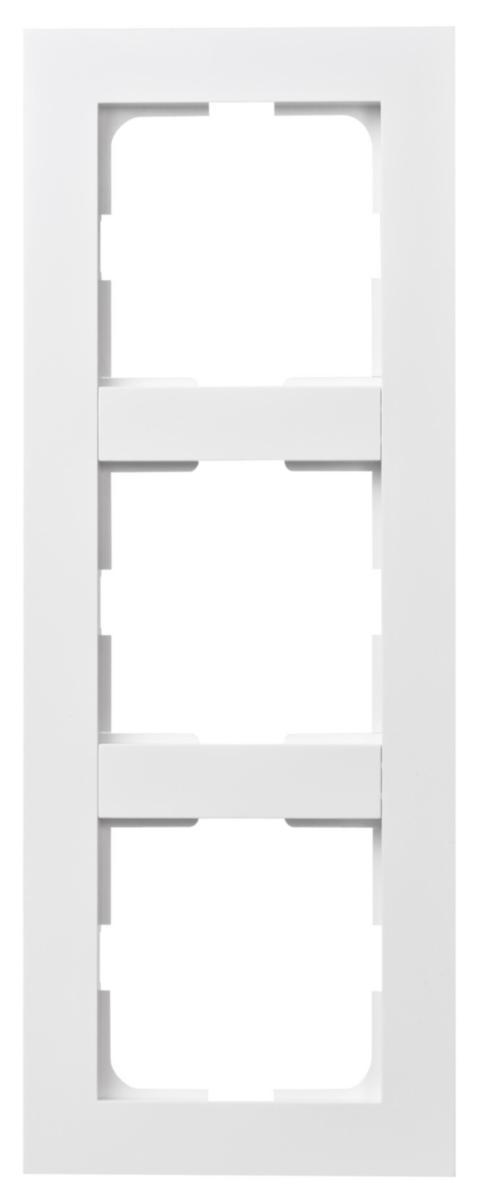

PLUS FRAME 3 H PW
Article number: Suppl. article no:
1848803
EKO03793
to see price and stock
Combination frames for recessed switches, wall sockets etc. The ribs between the hole are detachable, which among other things enables mounting 3-way outlets in two holes. The material is halogen-free thermoplastic. When mounting the switch a fixed frame, which is part of the switch, is used. When assembled within the same frame, the c / c has to be 71mm. When mounted between two frames, the c / c measurement is 85mm.
- Article number: 1848803
- Suppl. article no: EKO03793
- Ean no: 7020160379306
- Material class QH3800
Technical data
- Packagin Size: 1 ST/10 ST/50 ST
- Product series: Plus
- Number of units: 3
- Colour: White
- RAL-number (similar): 9010
- Number of device inserts horizontal: 3
- Number of device inserts vertical: 1
- Width: 228 mm
- Height: 86 mm
- Material: Plastic
- Depth: 10.5 mm
- Material quality: Thermoplastic
- Label space/information surface: No
- Halogen free: No
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: No
- Suitable for wall duct: No
- Surface finishing: Glossy
- With hinged lid: No
- Mounting direction: Horizontal and vertical
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- Anti-bacterial treatment: No
- Flush-mounted installation: Yes
- With mounting grid: No
- REACH Date: 2024-07-31
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
