Combination frames, Plus - PLUS FRAME 1 H PW
Elko

Combination frames, Plus

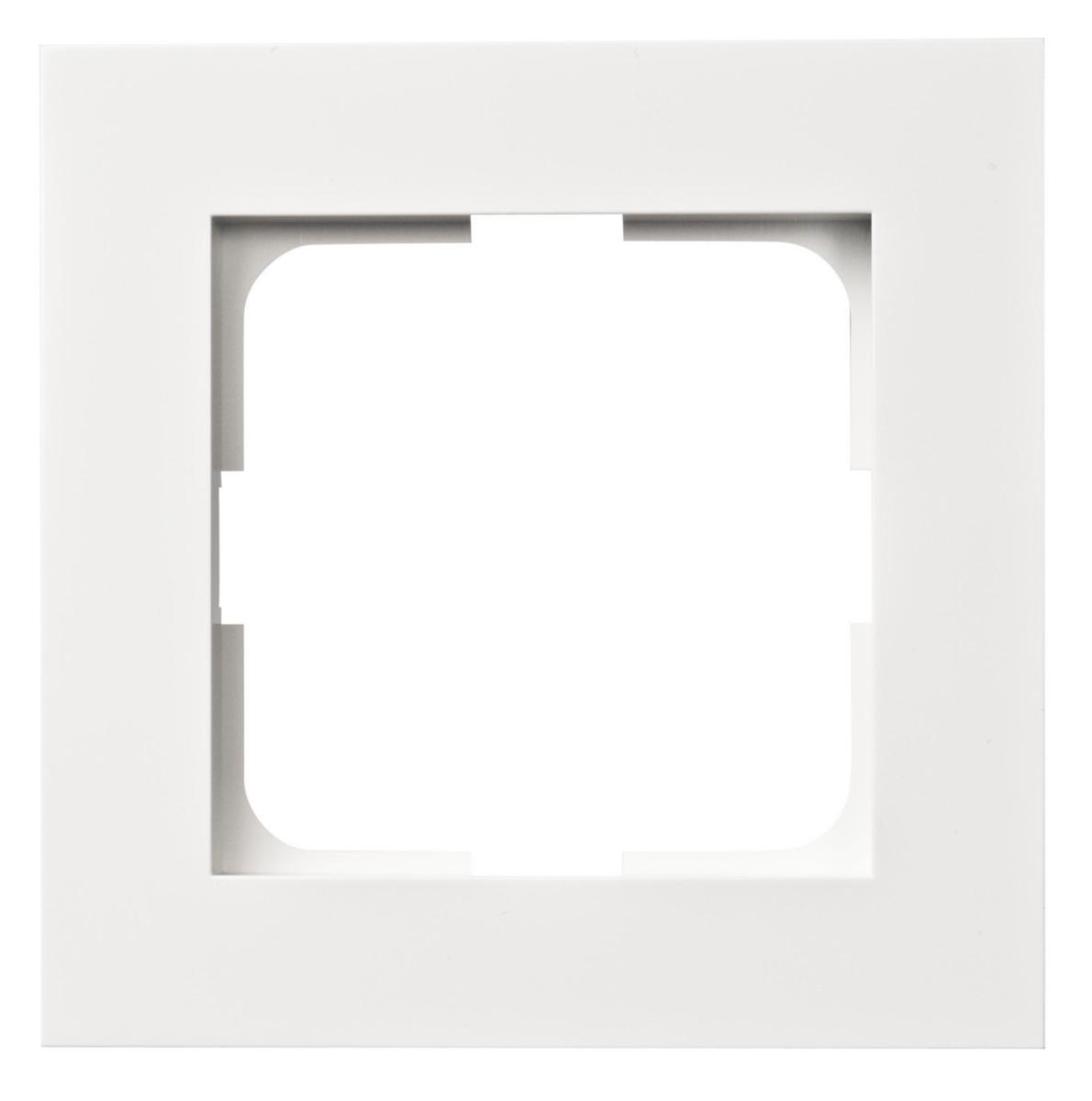

PLUS FRAME 1 H PW
Article number:
1848801
Suppl. article no:
EKO03787
‌
‌
‌
‌
‌
 to see price and stock
Byggvarubedomning: AccepterasREACH Information obligation
Combination frames for recessed switches, wall sockets etc. The ribs between the hole are detachable, which among other things enables mounting 3-way outlets in two holes. The material is halogen-free thermoplastic. When mounting the switch a fixed frame, which is part of the switch, is used. When assembled within the same frame, the c / c has to be 71mm. When mounted between two frames, the c / c measurement is 85mm.
  • Article number:
    1848801
  • Suppl. article no:
    EKO03787
  • Ean no:
    7020160378705
  • Material class
    QH3800
Technical data
  • Packagin Size: 1 ST/10 ST/100 ST
  • Product series: Plus
  • Number of units: 1
  • Colour: White
  • RAL-number (similar): 9010
  • Number of device inserts horizontal: 1
  • Number of device inserts vertical: 1
  • Width: 86 mm
  • Height: 86 mm
  • Material: Plastic
  • Depth: 10.5 mm
  • Material quality: Thermoplastic
  • Label space/information surface: No
  • Halogen free: Yes
  • Suitable for subfloor installation duct box: No
  • Suitable for built-in installation: No
  • Suitable for wall duct: No
  • Surface finishing: Glossy
  • With hinged lid: No
  • Mounting direction: Horizontal and vertical
  • Degree of protection (IP): IP20
  • Transparent: No
  • Type of fastening: Clamp mounting
  • Surface protection: Untreated
  • Anti-bacterial treatment: No
  • Flush-mounted installation: Yes
  • With mounting grid: No
  • REACH Date: 2024-07-31
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
