Schneider Electric
Combination frames, Robust
ROBUST 2 GANG FRAME 183263700
Article number: Suppl. article no:
1832637
WDE000914
to see price and stock

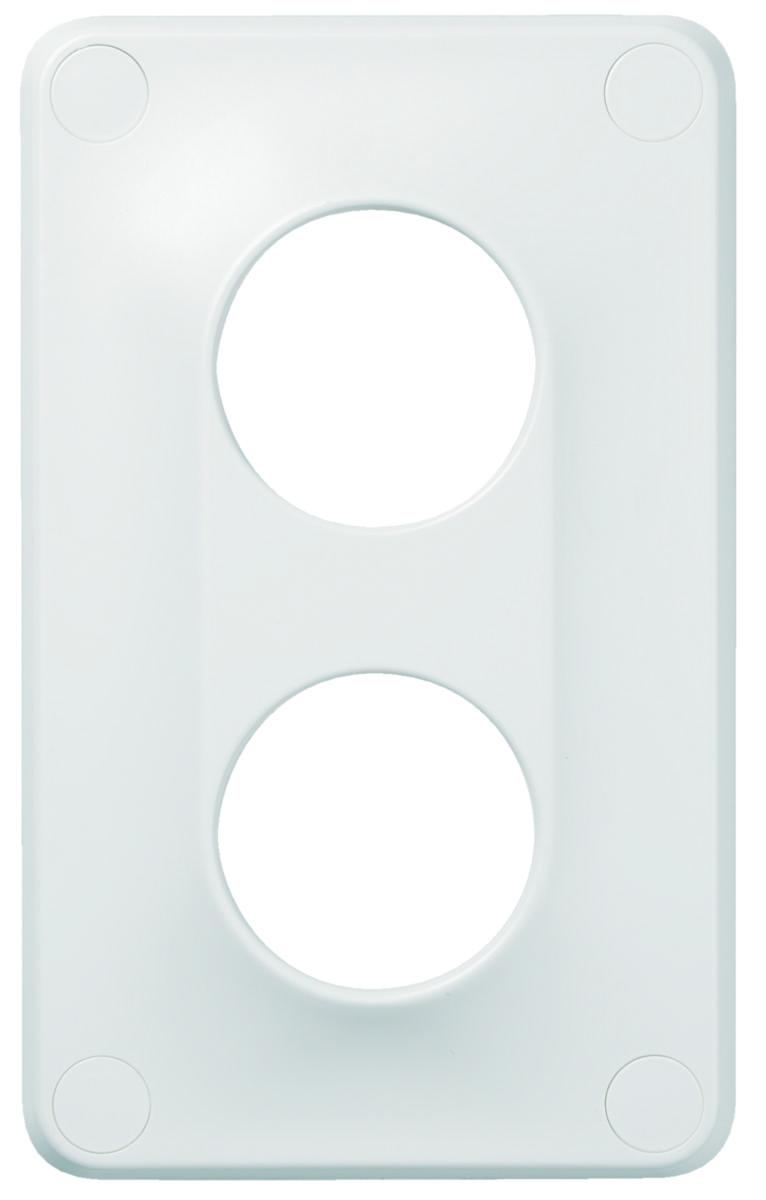

Cover frame 1-2-bay
Cover frame 1-2-bay for mounting of Robust inserts. Recessed IP20. Vertical or horizontal mounting. Four seals are included for the extra mounting holes. Impact resistance IK09 according to standard IEC 62262.
Cover frame 1-2-bay for mounting of Robust inserts. Recessed IP20. Vertical or horizontal mounting. Four seals are included for the extra mounting holes. Impact resistance IK09 according to standard IEC 62262.
- Article number: 1832637
- Suppl. article no: WDE000914
- Ean no: 6438054017233
- Material class QH1800
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/1200 ST
- Design: Cover frame 2-bay
- Product series: Robust
- Number of units: 2
- Colour: White
- RAL-number (similar): 9010
- Number of device inserts horizontal: 1
- Number of device inserts vertical: 2
- Width: 110 mm
- Height: 181 mm
- Material: Plastic
- Depth: 16 mm
- Material quality: Thermoplastic
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: No
- Suitable for wall duct: No
- Surface finishing: Matt
- With hinged lid: No
- Mounting direction: Vertical
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Screw mounting
- Surface protection: Untreated
- Flush-mounted installation: Yes
