Schneider Electric
Multi line frames Design
FRAME 1G W INLAYS TRANS EXXACT DESIGN
Article number: Suppl. article no:
1822171
WDE004341
to see price and stock

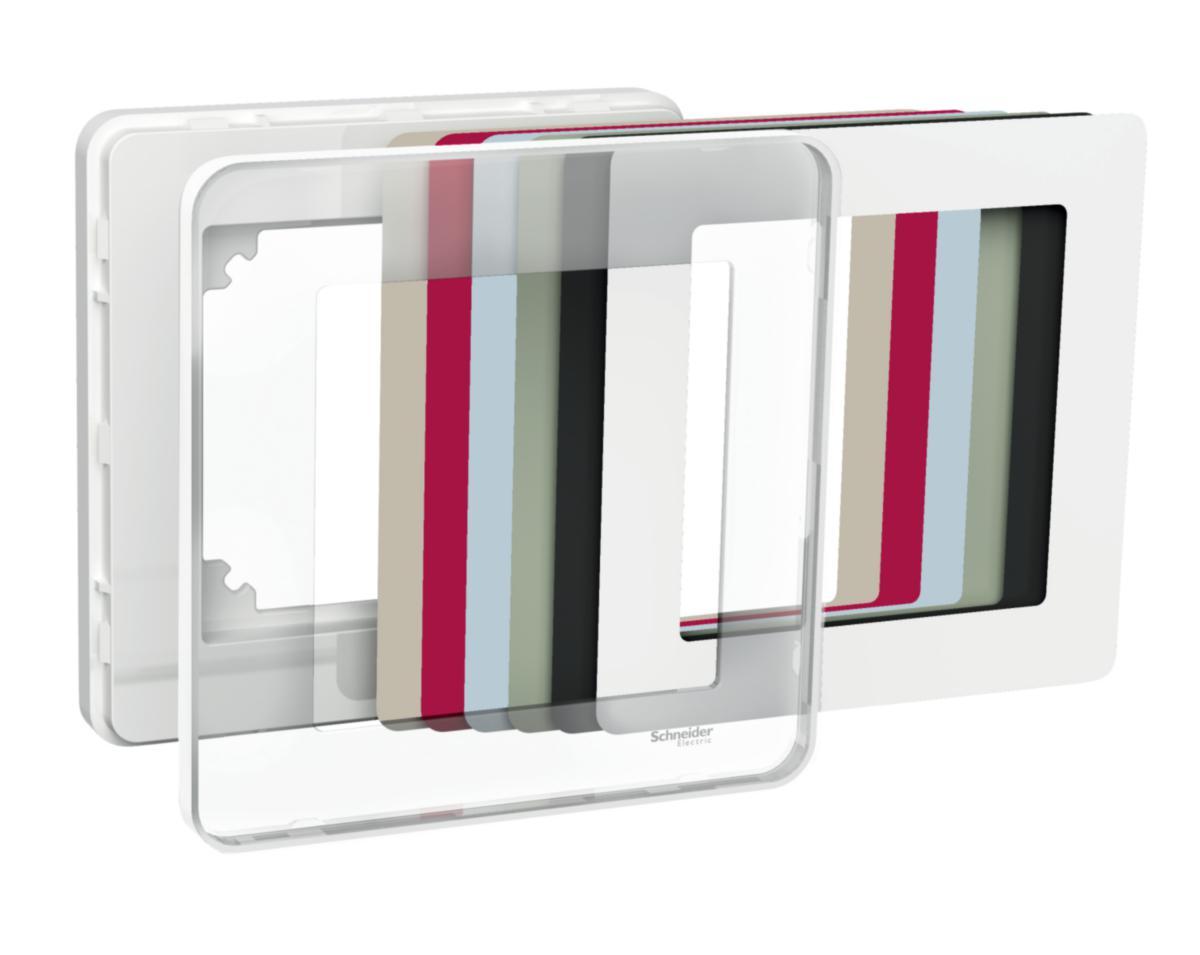

Design combination frames for recessed or surface mounting IP20. Decorative inlay in six different colours as well as a transparent floral pattern are included. It is also possible to cut out your own insert from wallpaper or the like. For vertical or horizontal mounting.
- Article number: 1822171
- Suppl. article no: WDE004341
- Ean no: 3606480208188
- Material class QH1700
Technical data
- Packagin Size: 1 ST/10 ST/60 ST
- Type: WDE004341
- Product series: Exxact
- Number of units: 1
- Colour: White
- Number of device inserts horizontal: 1
- Number of device inserts vertical: 1
- Material: Plastic
- Surface finishing: Glossy
- Width: 87 mm
- Depth: 11.6 mm
- Height: 87 mm
- Flush-mounted installation: Yes
- With mounting grid: No
- Mounting direction: Horizontal and vertical
- Material quality: Thermoplastic
- Label space/information surface: Yes
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: No
- Suitable for wall duct: No
- With hinged lid: No
- RAL-number (similar): 9003
- Degree of protection (IP): IP20
- Transparent: Yes
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- Anti-bacterial treatment: No
- Impact strength: IK03
- REACH Date: 2025-07-18
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- REACH Information obligation: Yes
