Hager

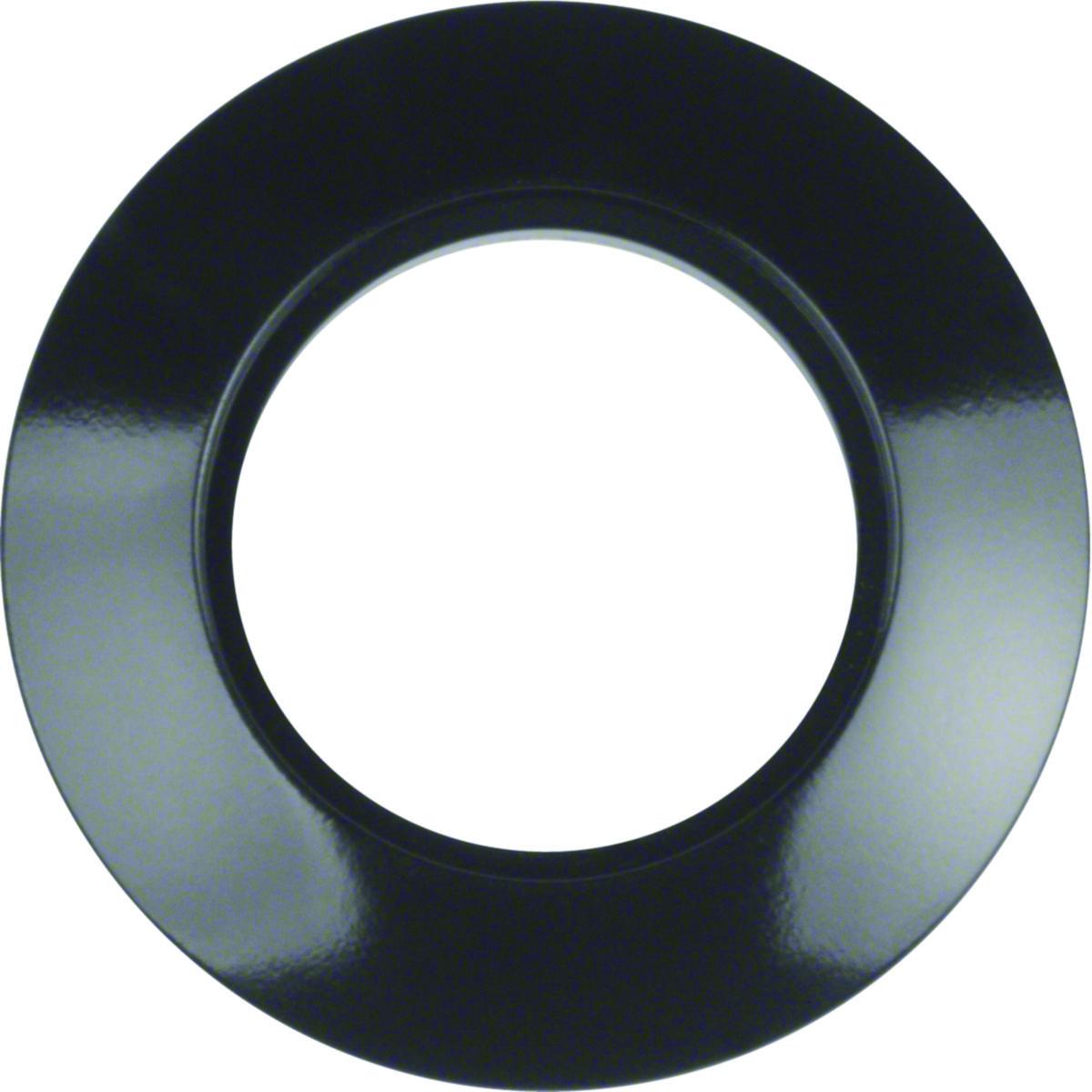

Combination frame series 1930, black
FRAME 1GANG, BLACK GLOSSY
Article number: Suppl. article no:
1802019
WTD3100BG
to see price and stock
Combination frame is used in combination with center washers in the 1930 series.
- Article number: 1802019
- Suppl. article no: WTD3100BG
- Ean no: 3250610090534
- Material class QH8510
- This is an alternative to item 1801134
Technical data
- Packagin Size: 1 PCS/10 PCS/220 PCS/7040 PCS
- Product series: 1930
- Number of units: 1
- Colour: Black
- Number of device inserts horizontal: 1
- Number of device inserts vertical: 1
- Material: Plastic
- Number of modules horizontal (module system): 0
- Surface finishing: Glossy
- Number of modules vertical (module system): 0
- Width: 80 mm
- Depth: 9.9 mm
- Height: 80 mm
- Flush-mounted installation: Yes
- With mounting grid: No
- Mounting direction: Horizontal and vertical
- Material quality: Duroplast
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: Yes
- Suitable for wall duct: Yes
- With hinged lid: No
- RAL-number (similar): 9005
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- Diameter bore hole (opening): 45 mm
- Anti-bacterial treatment: No
- Impact strength: IK02
- REACH Date: 2025-06-01
- REACH Information obligation: No
