AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsCover/Combination framesFrames
Hager

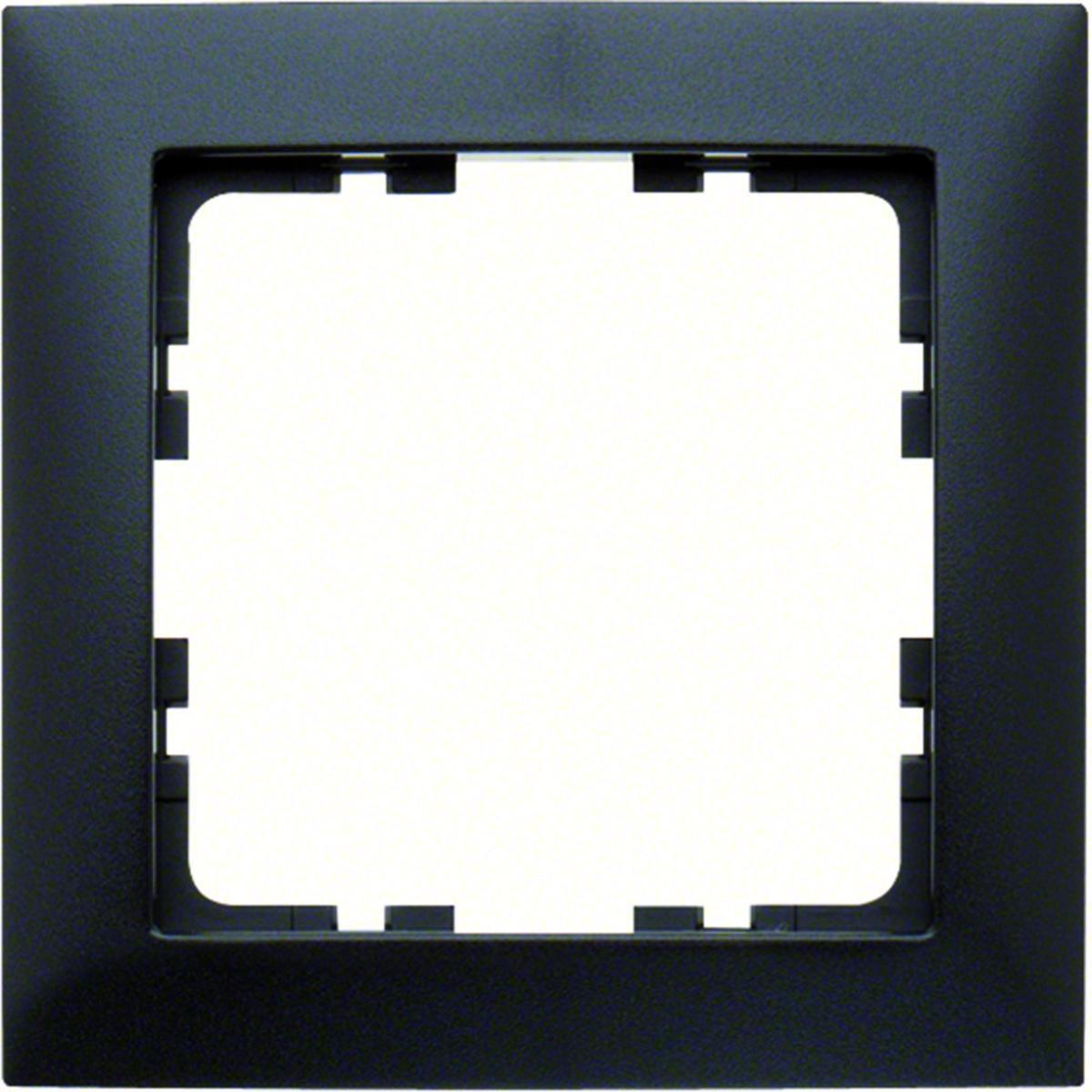

Combination frame, 1-5, S.1 anthracite, Berker
FRAME 1-F S.1 ANTH
Article number: Suppl. article no:
1801064
10119949
to see price and stock
Combined frame made of thermoplastic, series S1. For vertical and horizontal mounting.
- Article number: 1801064
- Suppl. article no: 10119949
- Ean no: 4011334360377
- Material class QH8500
Technical data
- Packagin Size: 1 ST/10 ST/360 ST/14400 ST
- Type: 10119949
- Product series: berker S1
- Number of units: 1
- Colour: Anthracite
- RAL-number (similar): 7021
- Number of device inserts horizontal: 1
- Number of device inserts vertical: 1
- Width: 80.5 mm
- Height: 80.5 mm
- Material: Plastic
- Depth: 9.5 mm
- Number of modules horizontal (module system): 0
- Number of modules vertical (module system): 0
- Material quality: Thermoplastic
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 56 mm
- Built-in height: 56 mm
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: Yes
- Suitable for wall duct: Yes
- Surface finishing: Matt
- With hinged lid: No
- Mounting direction: Horizontal and vertical
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Lacquered
- Diameter bore hole (opening): 0 mm
- Flush-mounted installation: Yes
- With mounting grid: No
- REACH Date: 2021-06-16
- REACH Information obligation: No
