Hager

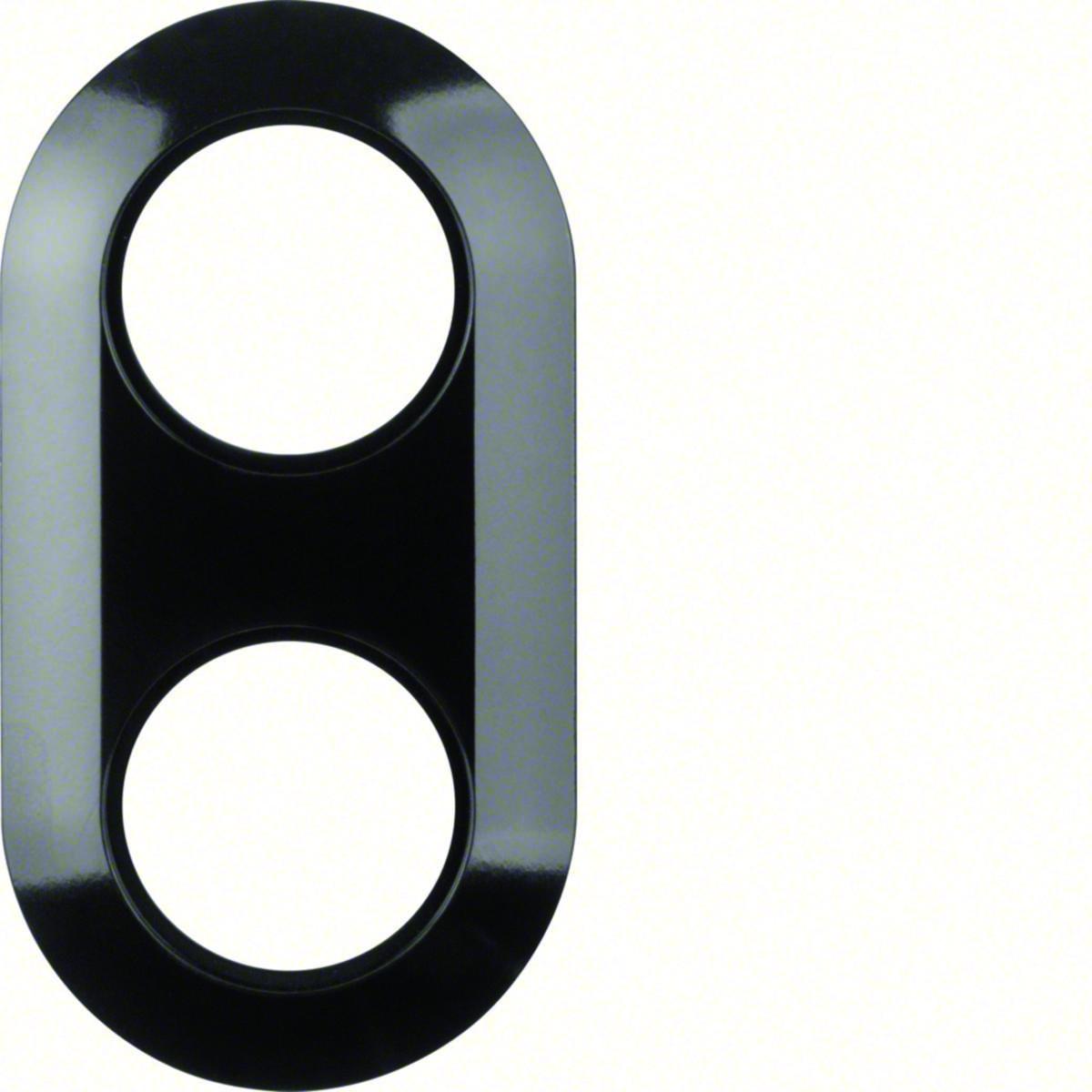

Combination frame black, series 1930
1930 FRAME 2-GANG. BLACK GLOSS 138121
Article number: Suppl. article no:
1800908
138121
to see price and stock
Combination frame is used in combination with center washers in the 1930 series.
- Article number: 1800908
- Suppl. article no: 138121
- Ean no: 4011334219095
- Material class QH8510
Technical data
- Product series: berker 1930
- Number of units: 2
- Colour: Black
- Number of device inserts horizontal: 2
- Number of device inserts vertical: 2
- Material: Plastic
- Number of modules horizontal (module system): 0
- Surface finishing: Glossy
- Number of modules vertical (module system): 0
- Width: 151 mm
- Depth: 9 mm
- Height: 80 mm
- Flush-mounted installation: Yes
- With mounting grid: No
- Mounting direction: Horizontal and vertical
- Material quality: Duroplast
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: Yes
- Suitable for wall duct: Yes
- With hinged lid: No
- RAL-number (similar): 9005
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- Diameter bore hole (opening): 45 mm
- REACH Date: 2021-06-16
- Number of switch inserts: 2
- REACH Information obligation: No
