AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsCover/Combination framesFrames
Hager

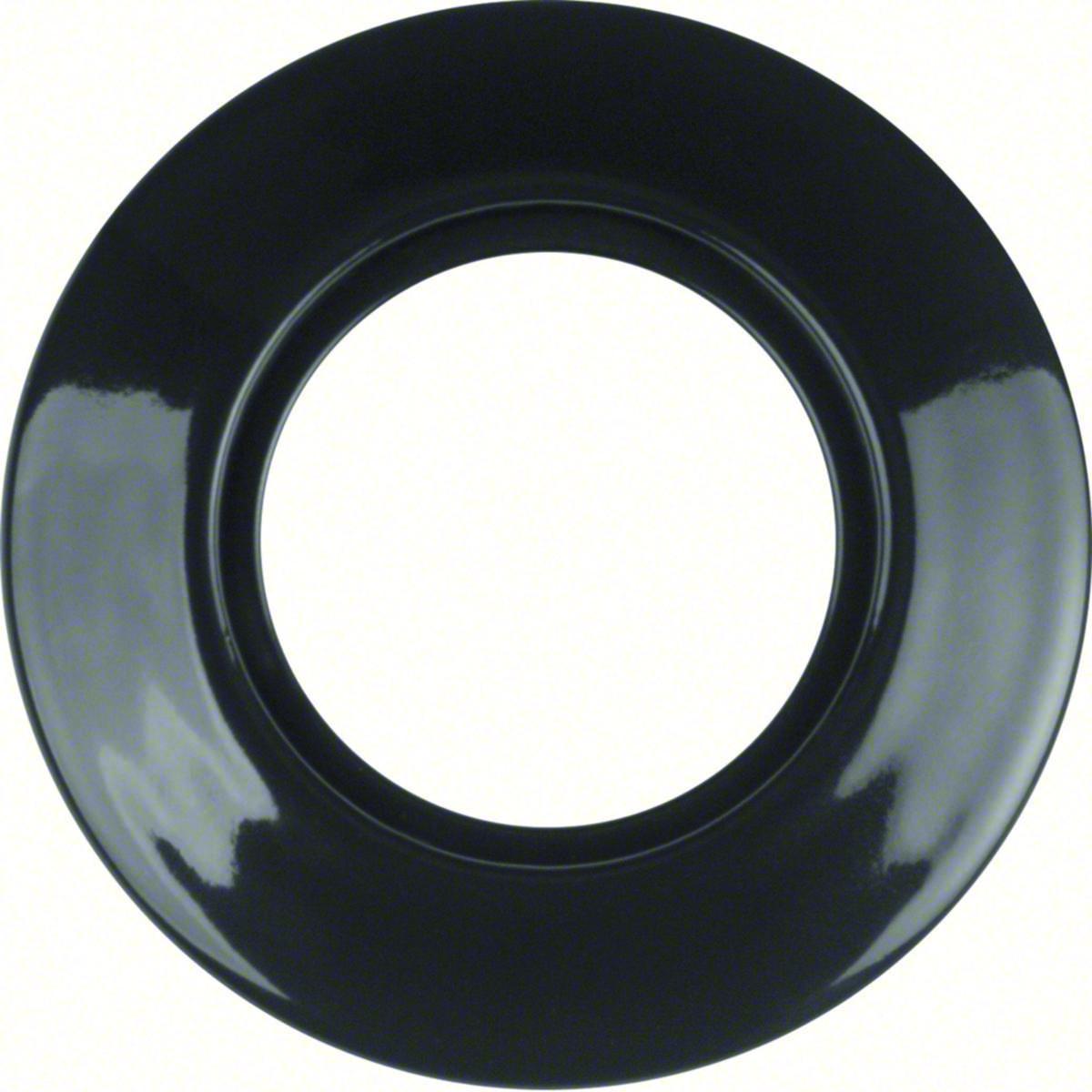

Combination frame black porcelain, series 1930
1930 PORCELLAIN FRAME. BLACK G 138165
Article number: Suppl. article no:
1800175
138165
to see price and stock

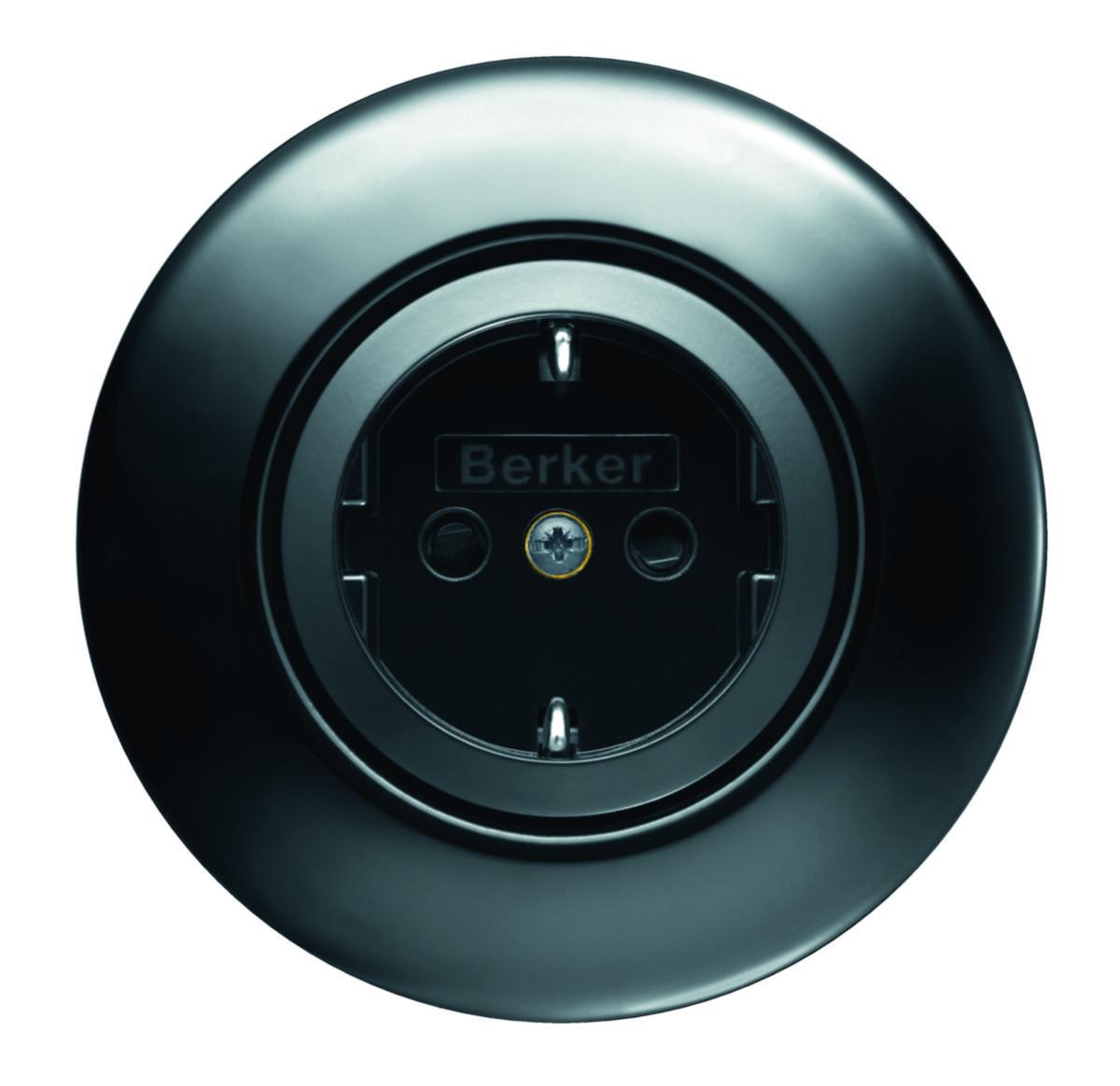

Porcelain frame 1-way, series 1930 in black glossy Rosenthal porcelain. Round retro design with a modern touch, an exclusive and elegant choice for your wall appliances. Complete with center trays or sockets in series 1930 from Hager.
- Article number: 1800175
- Suppl. article no: 138165
- Ean no: 4011334305255
- Material class QH8510
Technical data
- Packagin Size: 1 ST/10 ST
- Product series: berker 1930
- Number of units: 1
- Colour: Black
- Number of device inserts horizontal: 1
- Number of device inserts vertical: 1
- Material: Other
- Number of modules horizontal (module system): 0
- Surface finishing: Glossy
- Number of modules vertical (module system): 0
- Width: 80 mm
- Depth: 9 mm
- Height: 80 mm
- Flush-mounted installation: Yes
- With mounting grid: No
- Mounting direction: Horizontal and vertical
- Material quality: Other
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: Yes
- Suitable for wall duct: Yes
- With hinged lid: No
- RAL-number (similar): 9005
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- Diameter bore hole (opening): 45 mm
- REACH Date: 2021-06-16
- Number of switch inserts: 1
- REACH Information obligation: No
