Schneider Electric

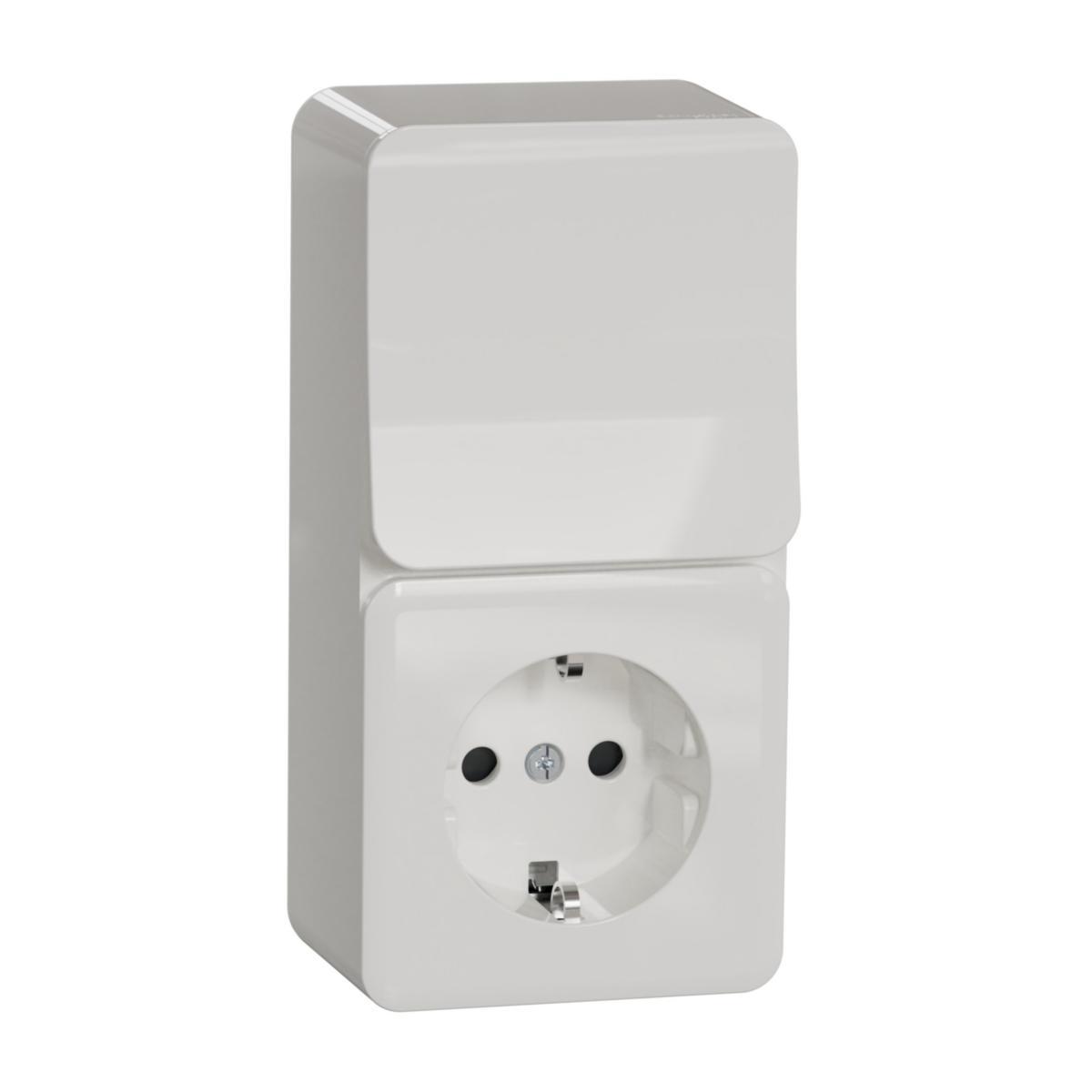

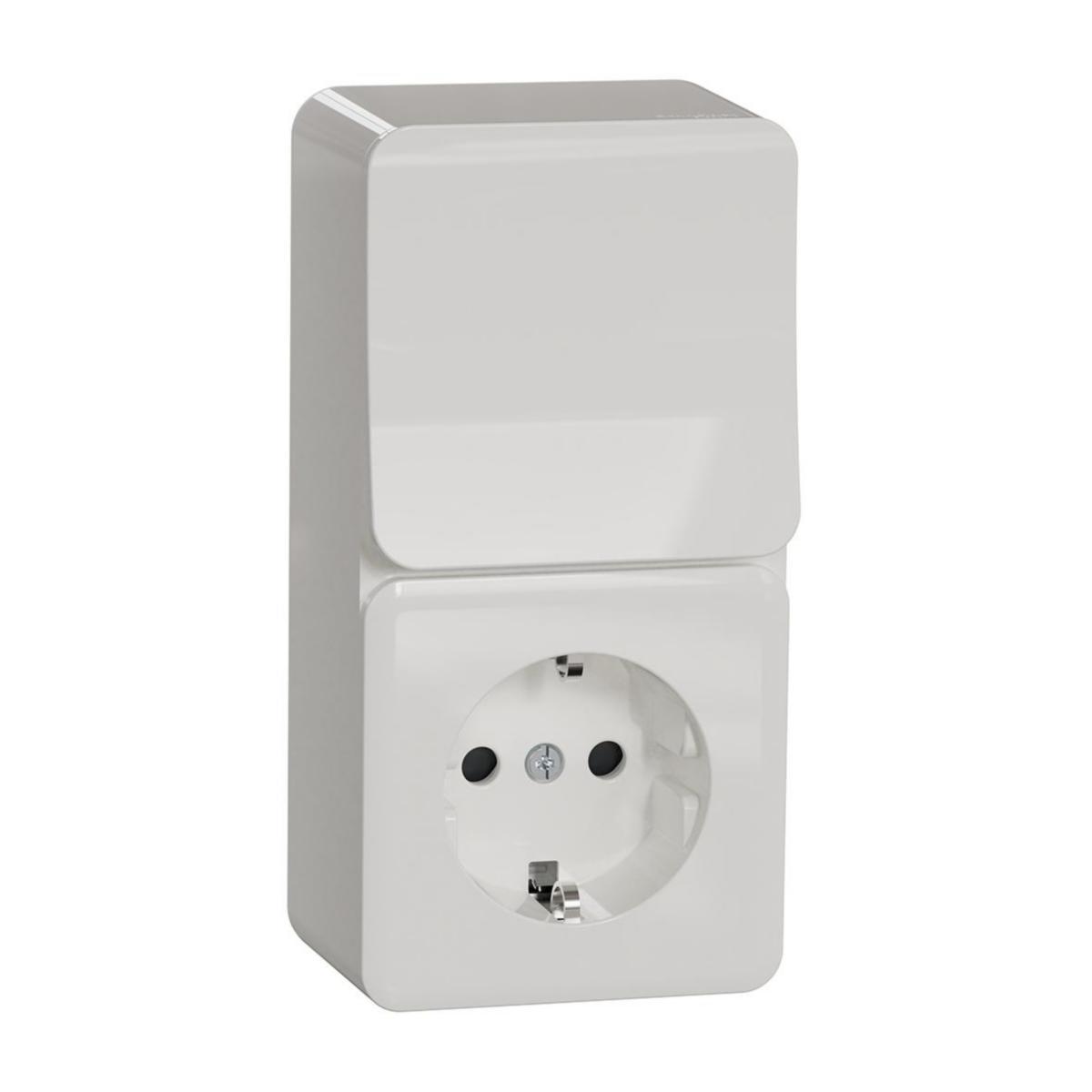

Exxact surface-mounted combi switch
COMBI SW 1P/TWO-WAY WITH SSO WDE015571
Article number: Suppl. article no:
1820310
WDE015571
to see price and stock
Combination of switch and 1-way socket for surface installation with integrated base plate. 16AX, 250V, grounded, socket protected, Quick connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below. Possibility of further screw fastening of the lid. Can easily be equipped with impulse spring, LED lamp and rocker with symbol.
- Article number: 1820310
- Suppl. article no: WDE015571
- Ean no: 3606489504441
- Material class QH1600
Technical data
- Packagin Size: 1 ST/5 ST/60 ST
- Product series: Exxact
- Number of socket outlets: 1
- Type of switch: Two-way switch
- Device width: 65 mm
- Device depth: 42 mm
- Device height: 129 mm
- Colour: White
- Halogen free: Yes
- Suitable for degree of protection (IP): IP20
- Operating method: Rocker/button
- Material: Plastic
- Material quality: Thermoplastic
- With lighting: No
- Mounting method: Surface mounted
- Mounting direction: Vertical
- Nominal voltage: 250 V
- Rated current: 16 A
- Nominal current socket outlet: 16 A
- RAL-number (similar): 9003
- Transparent: No
- Type of fastening: Other
- Type of socket outlet: Protective contact (type F)
- Surface finishing: Glossy
- Surface protection: Untreated
- REACH Date: 2022-07-20
- REACH Information obligation: No
