Elko

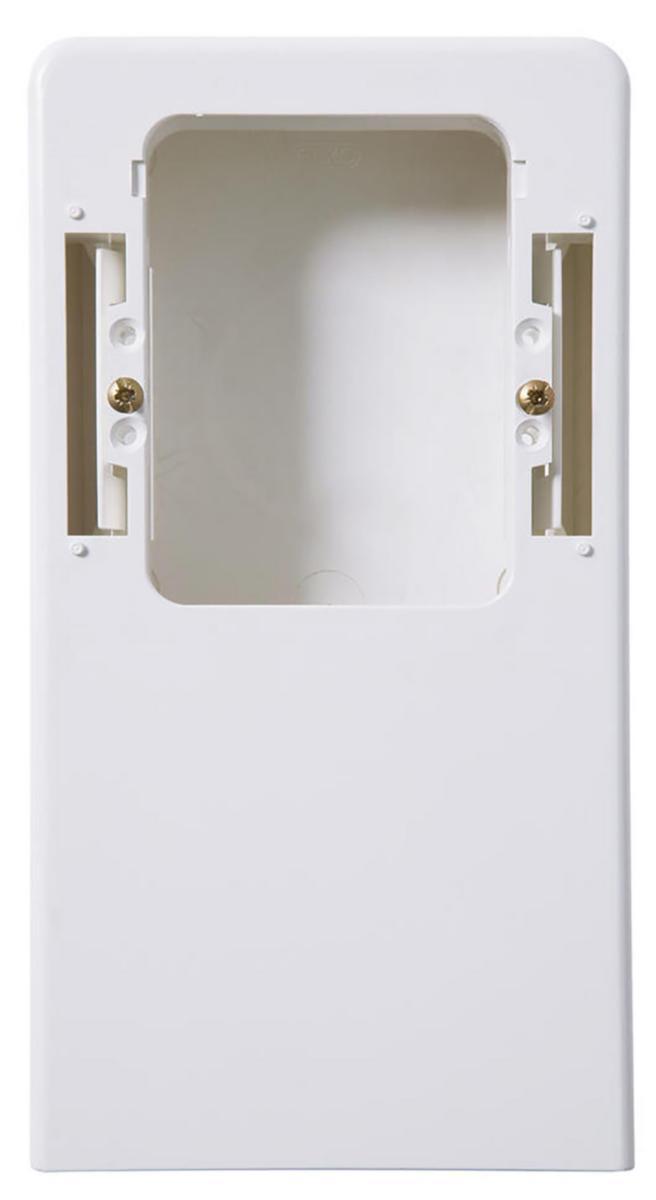

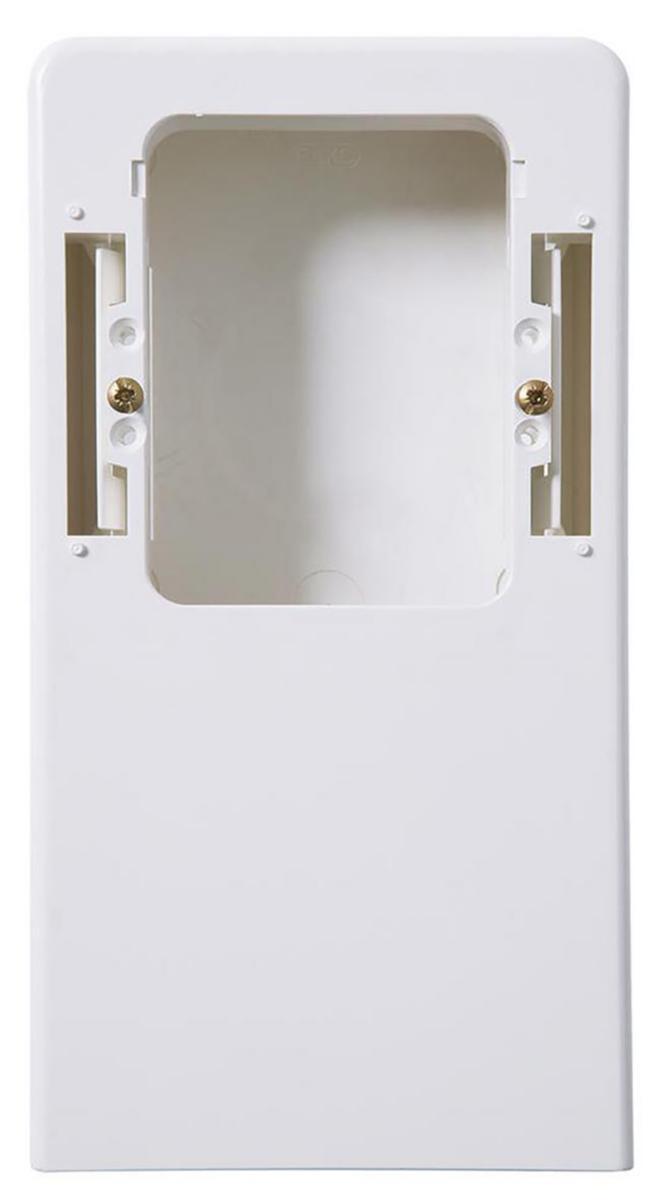

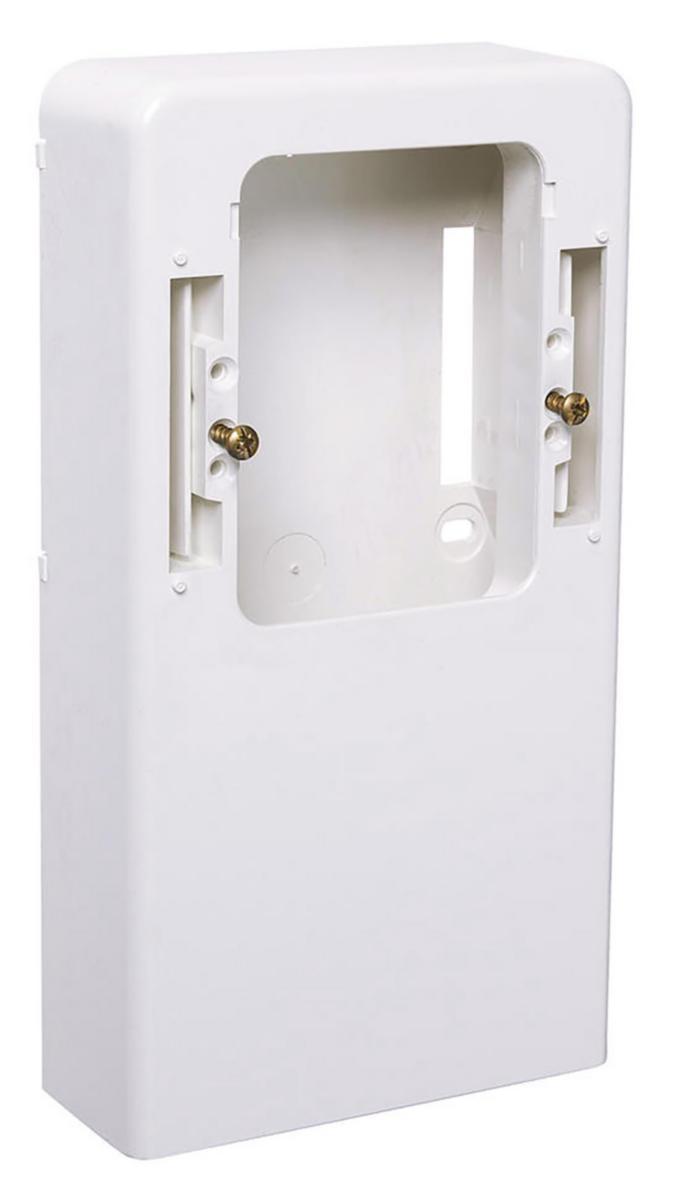

Plinth box
BASE SURFACE HOUSE EKO07693
Article number: Suppl. article no:
1885154
EKO07693
to see price and stock
Used together with weak and strong current in RS design.
- Article number: 1885154
- Suppl. article no: EKO07693
- Ean no: 7020160769305
- Material class QH4290
Technical data
- Packagin Size: 1 ST/10 ST
- Product series: RS
- Number of units: 1
- Number of modules (module system): 1.5
- Colour: White
- Device depth: 34 mm
- Device width: 90 mm
- Device height: 170 mm
- Width: 90 mm
- Depth: 44 mm
- Height: 170 mm
- Material: Plastic
- Surface finishing: Glossy
- Halogen free: Yes
- Degree of protection (IP): IP20
- With cover frame: No
- Suitable for mounting over existing flush-mounted box: No
- RAL-number (similar): 9003
- Material quality: Thermoplastic
- With screw gland entry: No
- With cable entry: No
- With duct entry: No
- Assembly arrangement: Surface mounted box
- Mounting direction: Horizontal and vertical
- Transparent: No
- Surface protection: Untreated
- Suitable for modular domestic switching devices: Yes
- Cross-trunking mounting: No
- Shape: Rectangular
- Number of earthing terminals: 0
- Desktop device: No
- Inlet from the rear: No
- With installation tube entry: No
- Shock resistant: No
- Compliant with BS 4662: No
- REACH Date: 2025-07-18
- REACH Information obligation: No
