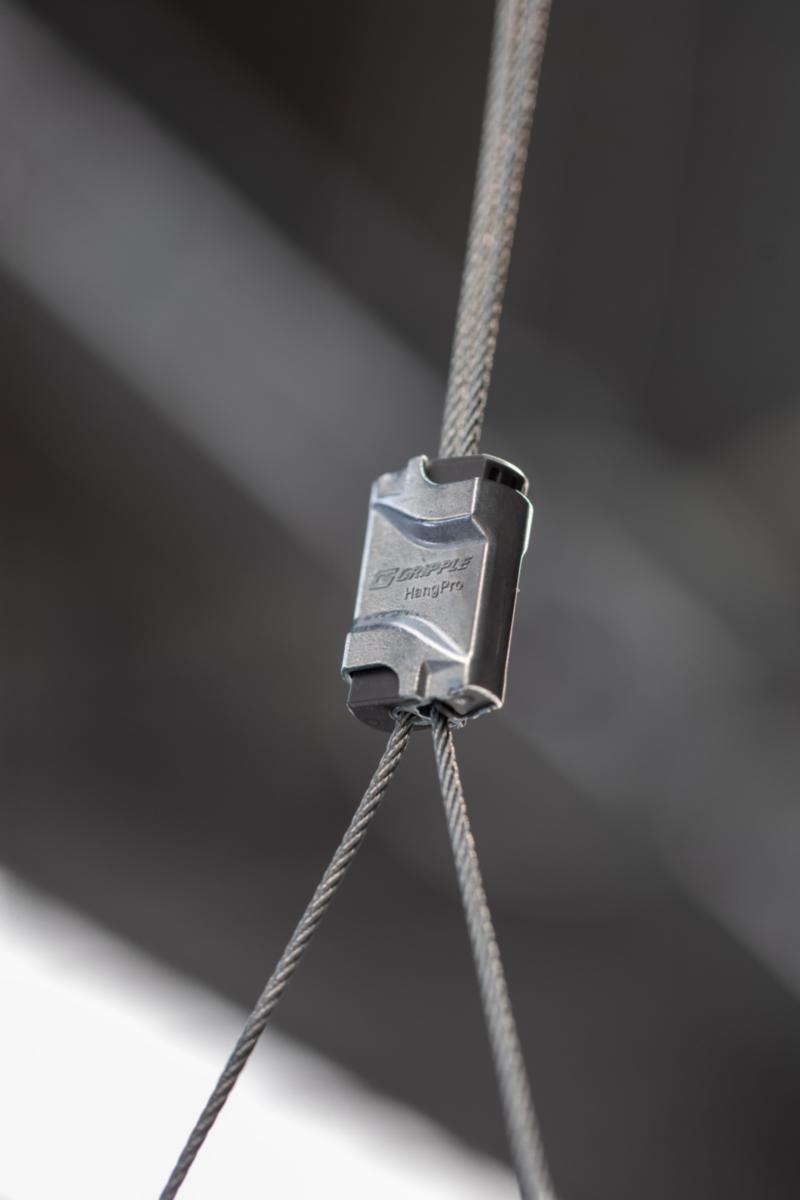

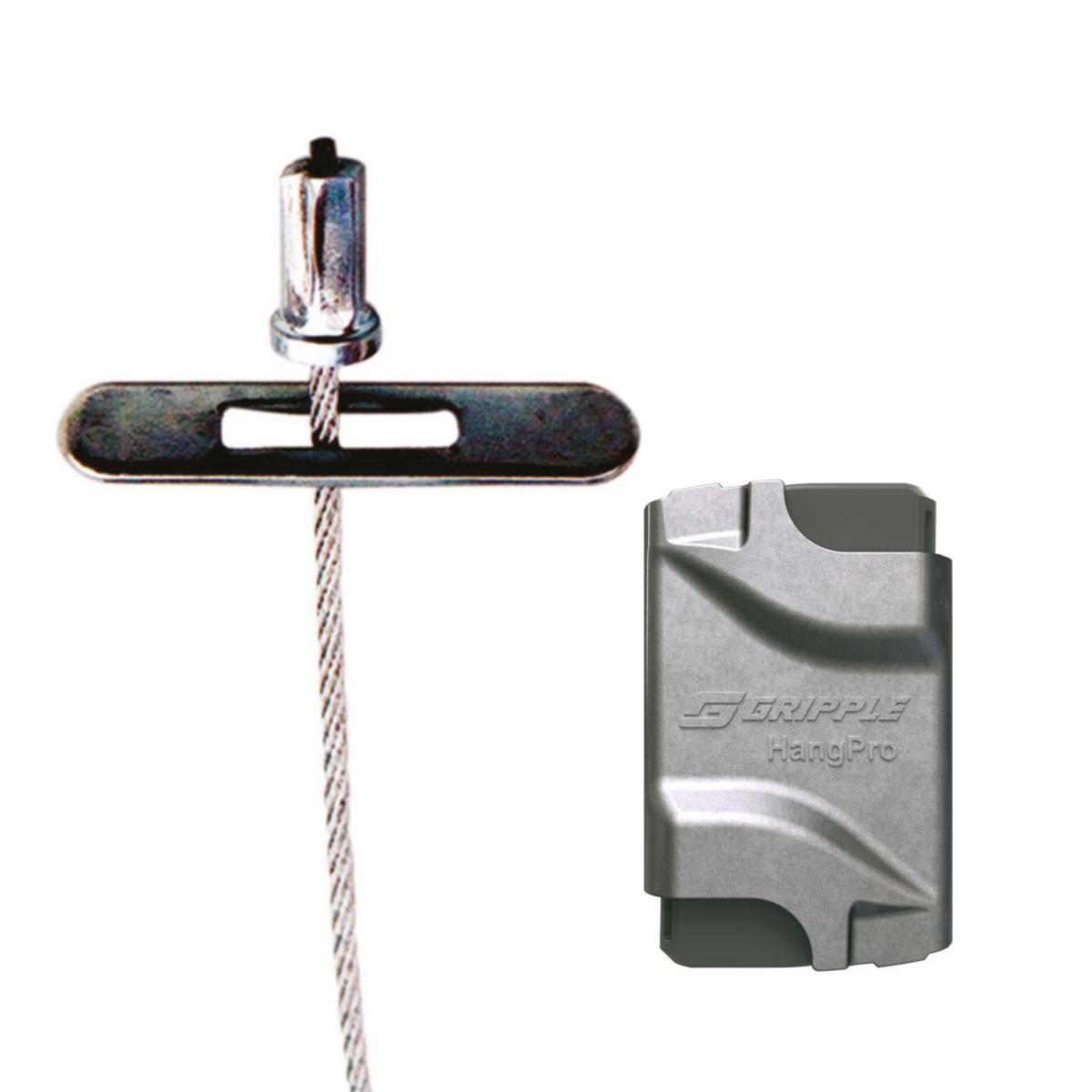

Wire suspension Gripple with toggle/plate bracket HP2

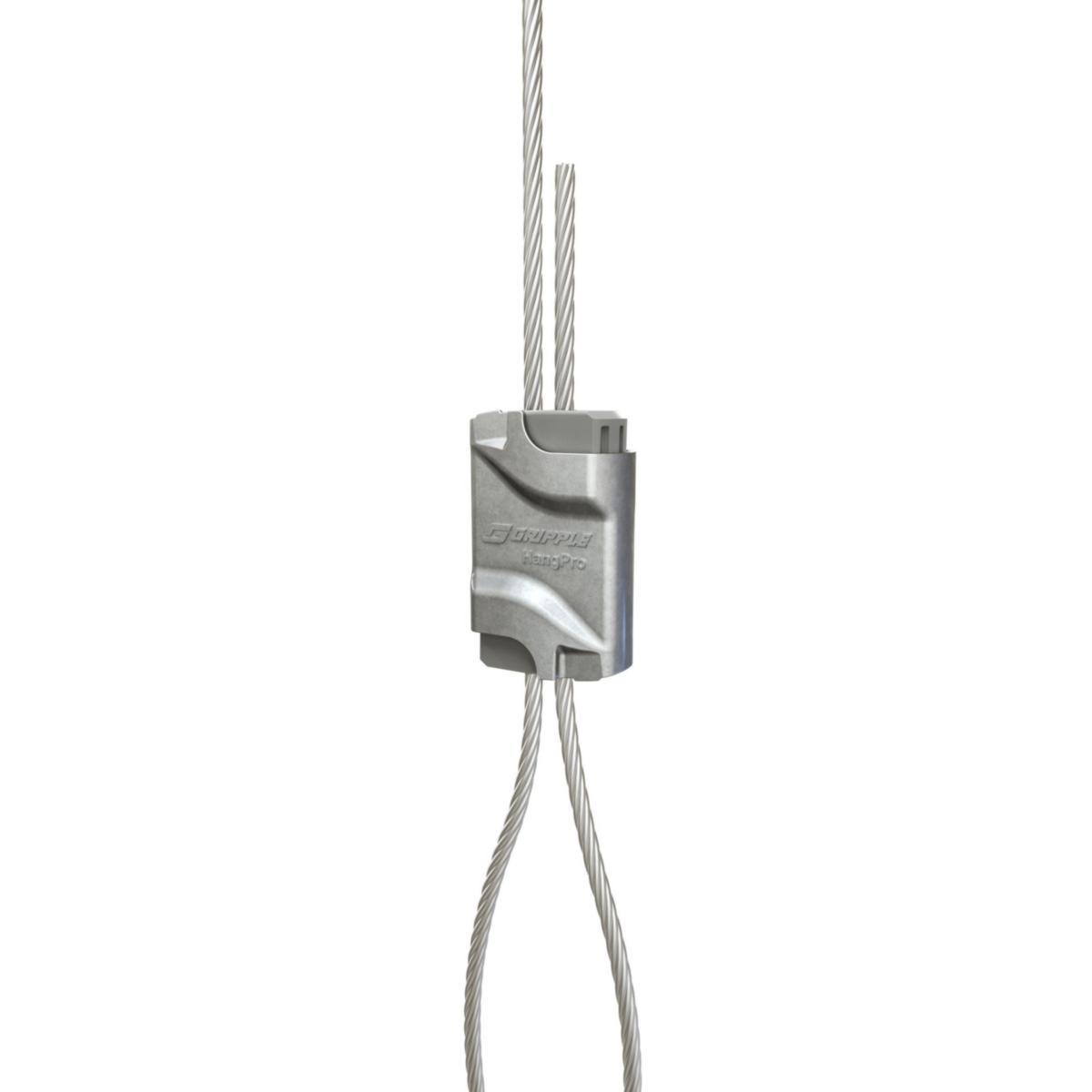

A complete suspension system with an adjustable lock that is easily regulated with a button function at one end and a toggle/plate attachment at the other end. The product is delivered in a pack of 10 from the supplier and is manufactured according to EN 12385. The wire suspension is used to suspend luminaires, spotlight and power rails and ventilation ducts. It is approved for loads from 15 kg up to 325 kg depending on the model, with a safety factor of 5:1. The construction consists of a housing in ZA2 zinc, a wedge in sintered steel that is hardened to at least 56 Rockwell C, a spring in stainless steel type 302 and an end cap in UV-stabilized homopolymer polypropylene. Drill 6mm holes in the metal roof/sheet metal, Place the washer along the wire and thread through the hole, The washer unfolds on the other side of the sheet metal and locks the wire in place. Alternatively, pull the wire around an object (e.g. beam) and thread through the end through the washer and thus create a "loop"/eyelet locking
