Gripple

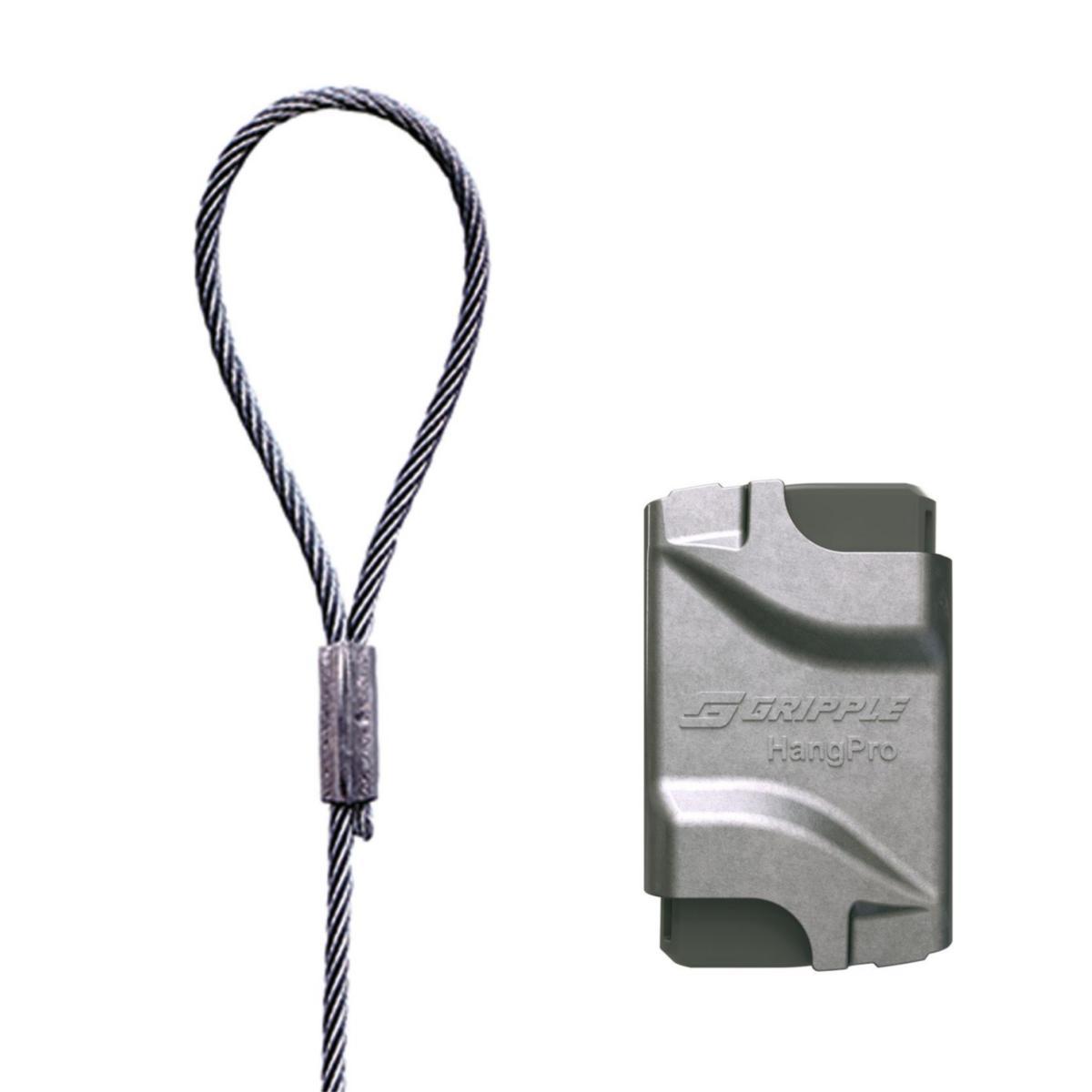

Wire suspension Gripple design with loop/eyelet HP2
WIRE LOOP 2MM X 3M 55KG
Article number: Suppl. article no:
1568325
HP2-LG-3M
to see price and stock

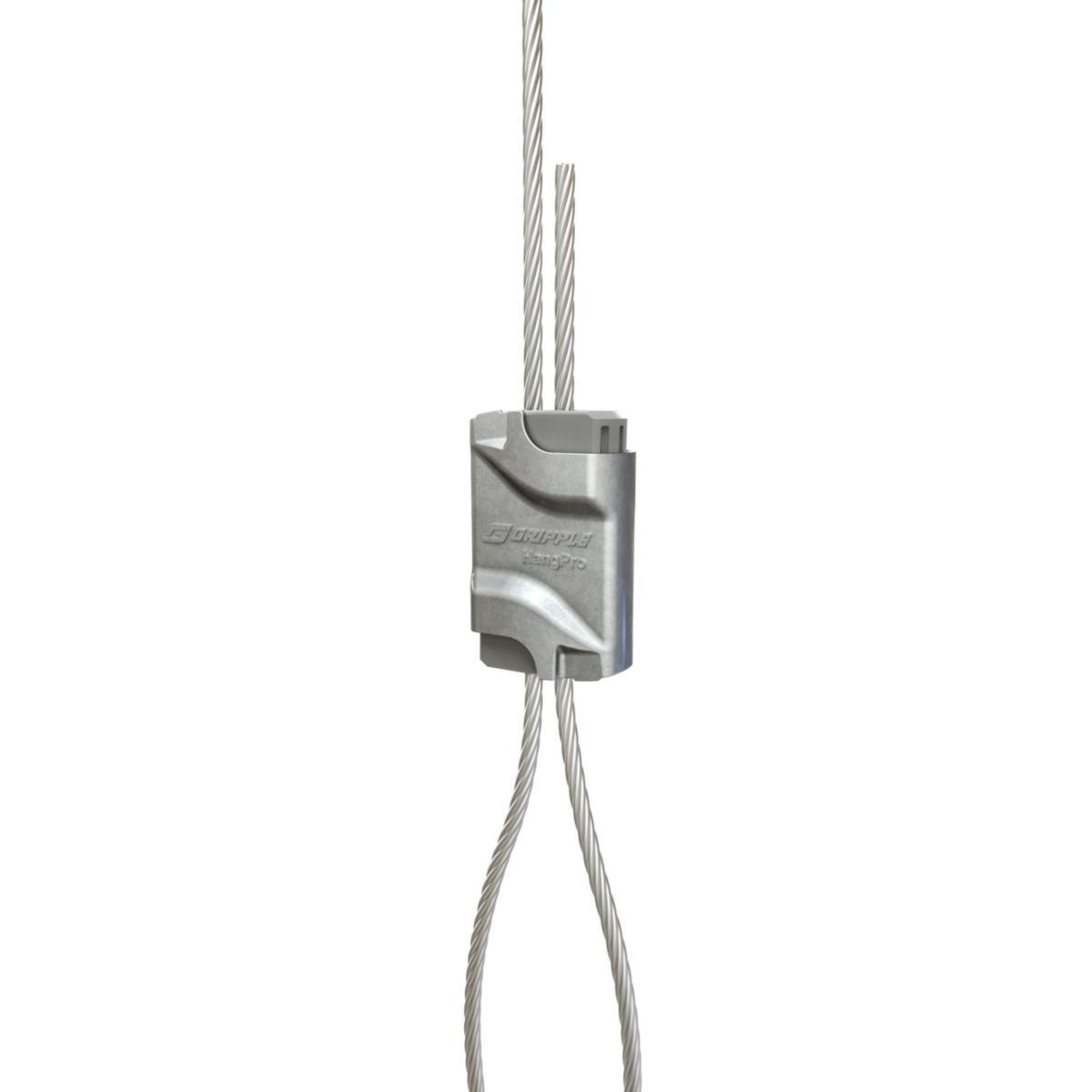

A complete suspension system with adjustable lock that is easily regulated with a button function at one end and a loop at the other end, to pull around a beam, for example, and create an anchor point. The product is delivered in a pack of 10 from the supplier and is manufactured according to EN 12385. The wire suspension is used to suspend luminaires, spotlight and power rails and ventilation ducts. It is approved for loads from 15 kg up to 325 kg depending on the model, with a safety factor of 5:1. The construction consists of a housing in ZA2 zinc, a wedge in sintered steel that is hardened to at least 56 Rockwell C, a spring in stainless steel type 302 and an end cap in UV-stabilized homopolymer polypropylene.
- Article number: 1568325
- Suppl. article no: HP2-LG-3M
- Ean no: 5038006287687
- Material class QE8370
Technical data
- Packagin Size: 10 PCS/100 PCS
- Type: HP2-LG-3M
- End fastening: With loop end
- Cable length: 3 m
- Cable diameter: 2 mm
- Cable material: Steel
- Material locking device/tensioner: Zamac
- Permitted work load: 55 kg
- Suitable for circuit integrity: No
- Colour: Zinc
- Unlocking method: Push button
- With decorative finish: No
- Type of termination: Wire clamp
- Surface protection: Galvanised
- REACH Date: 2025-01-06
- REACH Information obligation: No
