Hensel

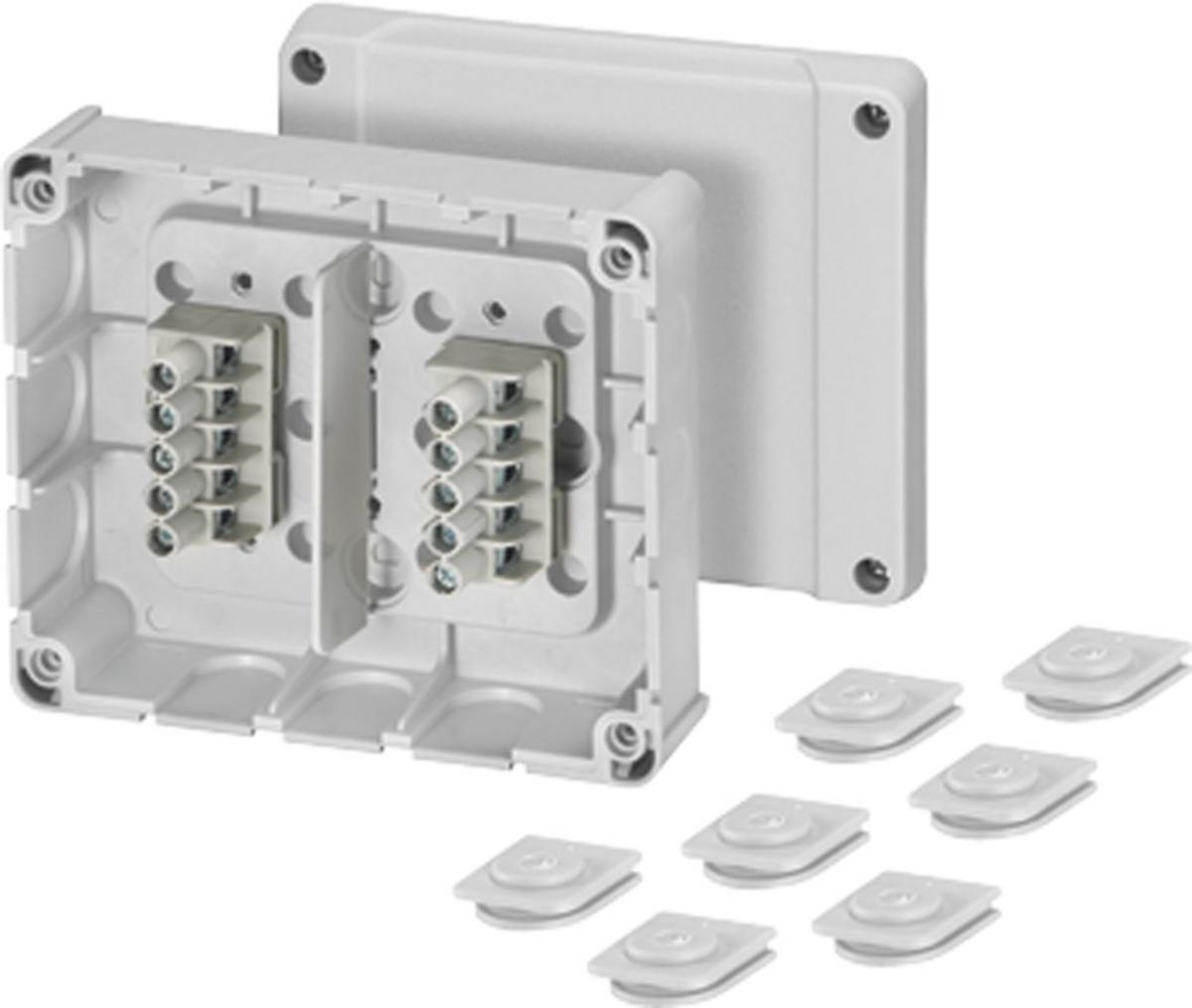

Junction box DP, Hensel
JUNCTION BOX DP9222/S M PLINT IP54 2.5
Article number: Suppl. article no:
1438609
DP 9222
to see price and stock
Junction box of thermoplastic, max 690V. Protection class IP54. Thirteen knockouts for rubber bushing (seven included) from the sides. Colour: Grey (RAL 7035).
- Article number: 1438609
- Suppl. article no: DP 9222
- Ean no: 4012591600428
- Material class QE7020
Technical data
- Packagin Size: 1 ST/2 ST
- Type: DP 9222
- Number of inlets: 13
- Max. conductor cross section: 4 mm²
- Width: 119 mm
- Length: 139 mm
- Depth: 49 mm
- Equipped with: Clamp
- Degree of protection (IP): IP54
- Colour: Grey
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- With screening: No
- Shape: Rectangular
- Inlet from the rear: No
- Type of housing feed-through: Preembossing
- Mounting method: Wall-/ceiling mounting
- Halogen free: Yes
- Weatherproof: No
- Connectable: No
- Cover model: Other
- Cover attachment: Screwed
- Working temperature: -25-40 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 690 V
- Transparent cover: No
- Circuit integrity: None
- REACH Date: 2021-01-19
- REACH Information obligation: No
