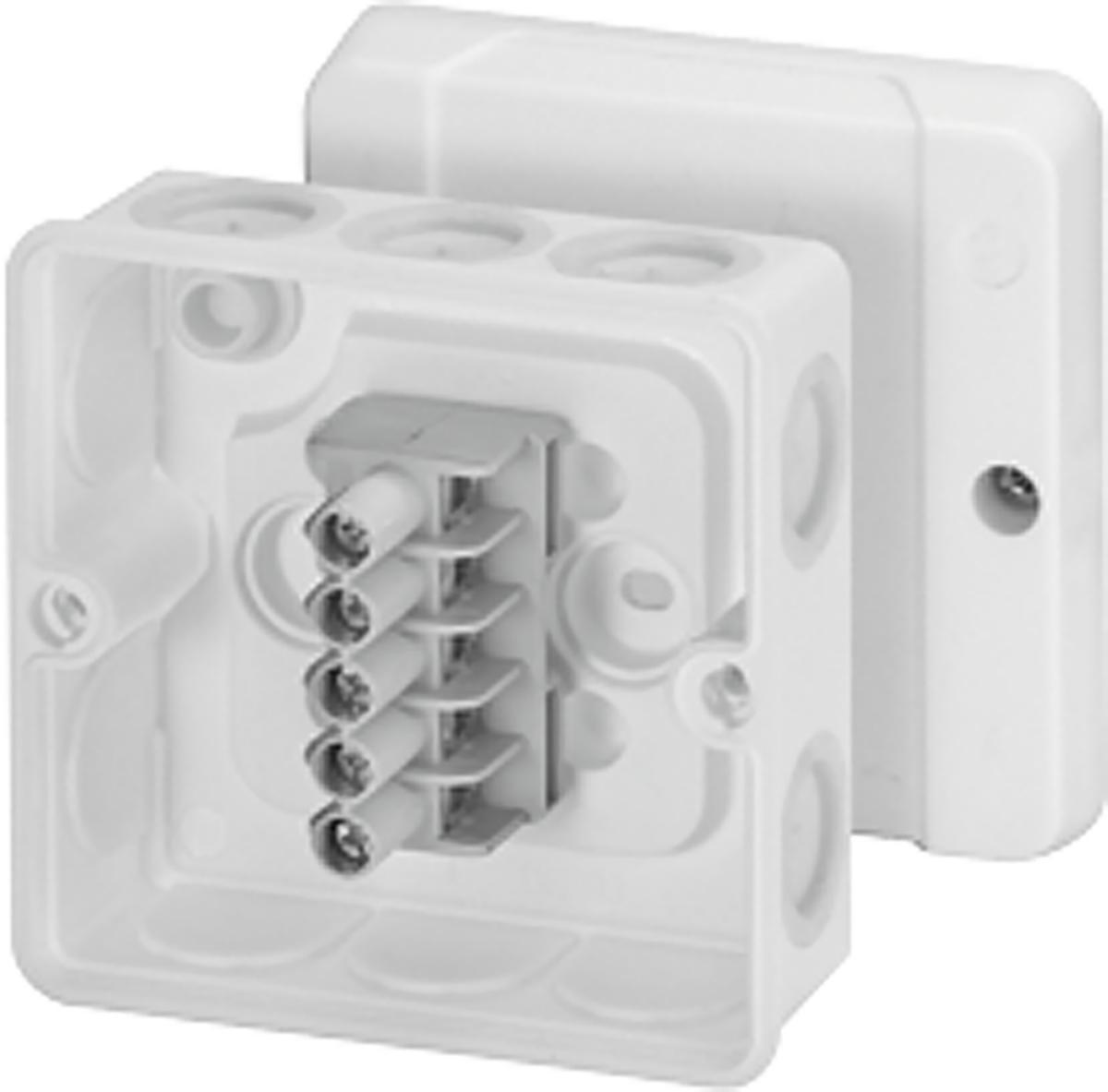

Junction boxes DE, with terminal, Hensel
JUNCTIONBOX DE9325
Article number: Suppl. article no:
1438602
DE 9326
to see price and stock
Made of impact-resistant thermoplastic. Enclosure class IP55. The box contains a 5-pin terminal block. The box has 10 membrane bushings for cables with Ø 6.5-16 mm. All boxes have gasket between lid and box molded into the dose lid, two cover washers for fastening screws are included. The screws for the lids are stainless steel with a large pitch.
- Article number: 1438602
- Suppl. article no: DE 9326
- Ean no: 4012591603320
- Material class QE7020
Technical data
- Packagin Size: 1 ST/5 ST
- Type: DE 9326
- Number of inlets: 10
- Max. conductor cross section: 4 mm²
- Width: 88 mm
- Length: 88 mm
- Depth: 47 mm
- Equipped with: Clamp
- Degree of protection (IP): IP55
- Colour: White
- Material: Plastic
- Mounting under water: FALSE
- Mounting in the soil: FALSE
- With screening: FALSE
- Shape: Square
- Inlet from the rear: FALSE
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Halogen free: TRUE
- Weatherproof: FALSE
- Connectable: FALSE
- Cover model: Other
- Cover attachment: Screwed
- Working temperature: -25-40 °C
- Sealable: TRUE
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: FALSE
- Rated insulation voltage Ui: 690 V
- Transparent cover: FALSE
- Circuit integrity: None
- REACH Date: 2021-01-19
- REACH Information obligation: No
