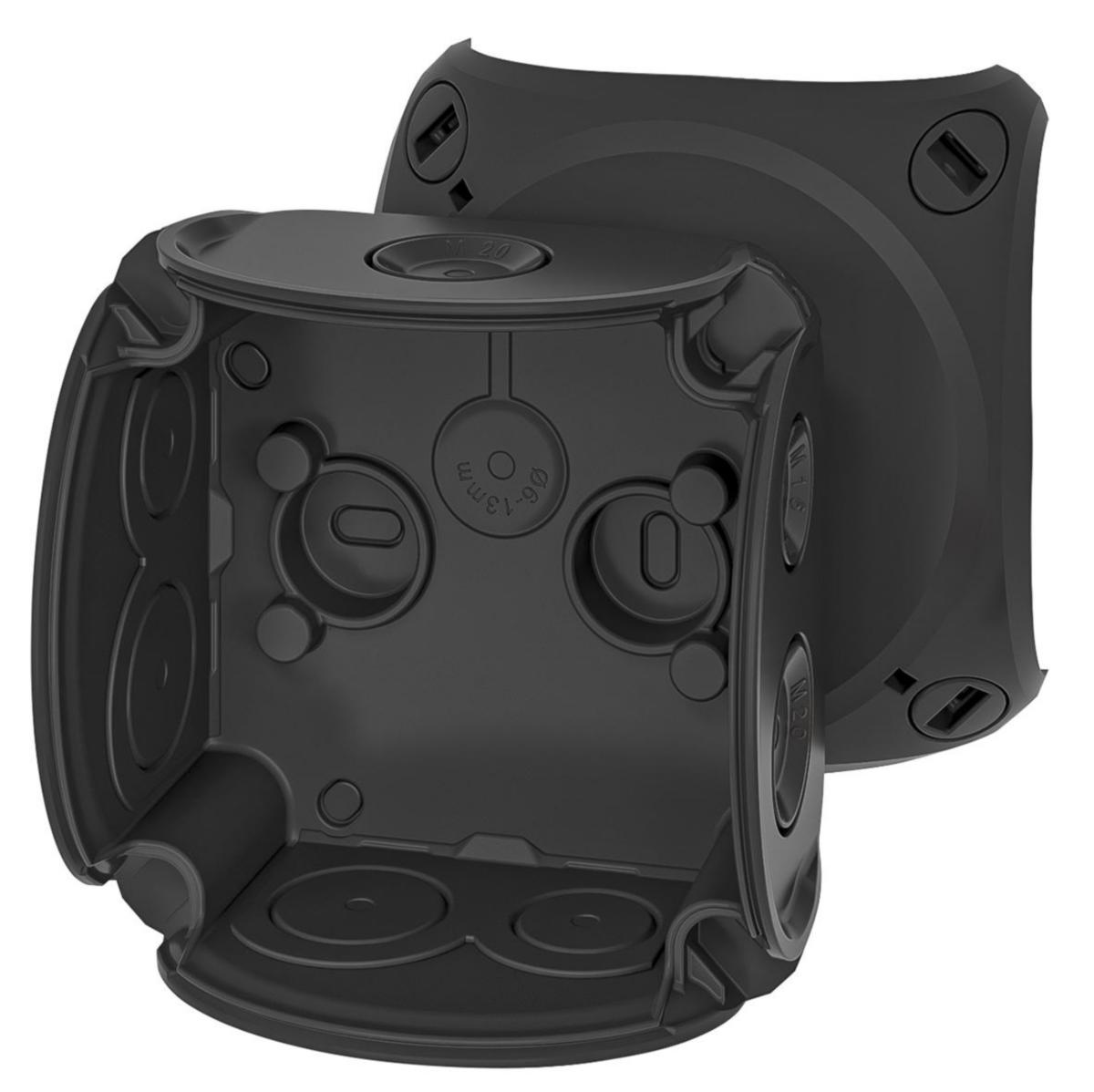

Junction box Enycase DK without terminal black, Hensel
Junction box w/o terminal
Article number: Suppl. article no:
1438580
DK 0100 B
to see price and stock
Without terminals. With integrated elastic membranes that can be easily removed for cable entry via cable glands if necessary. Sealing range 6.0-15.0 mm. The lid screws can be sealed without accessories. External brackets for wall mounting included.
- Article number: 1438580
- Suppl. article no: DK 0100 B
- Ean no: 4012591161523
- Material class QE7020
Technical data
- Packagin Size: 1 PCS/5 PCS/1200 PCS
- Type: DK 0100 B
- Number of inlets: 8
- Width: 84 mm
- Length: 84 mm
- Depth: 55 mm
- Equipped with: None
- Degree of protection (IP): IP66
- Colour: Grey
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: Other
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Halogen free: Yes
- Weatherproof: No
- Connectable: No
- Cover model: Other
- Cover attachment: Screwed
- Working temperature: -25-40 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 1000 V
- Transparent cover: No
- Circuit integrity: None
- With strain relief: No
- Model: Junction box
- REACH Date: 2024-01-23
- REACH Information obligation: No
