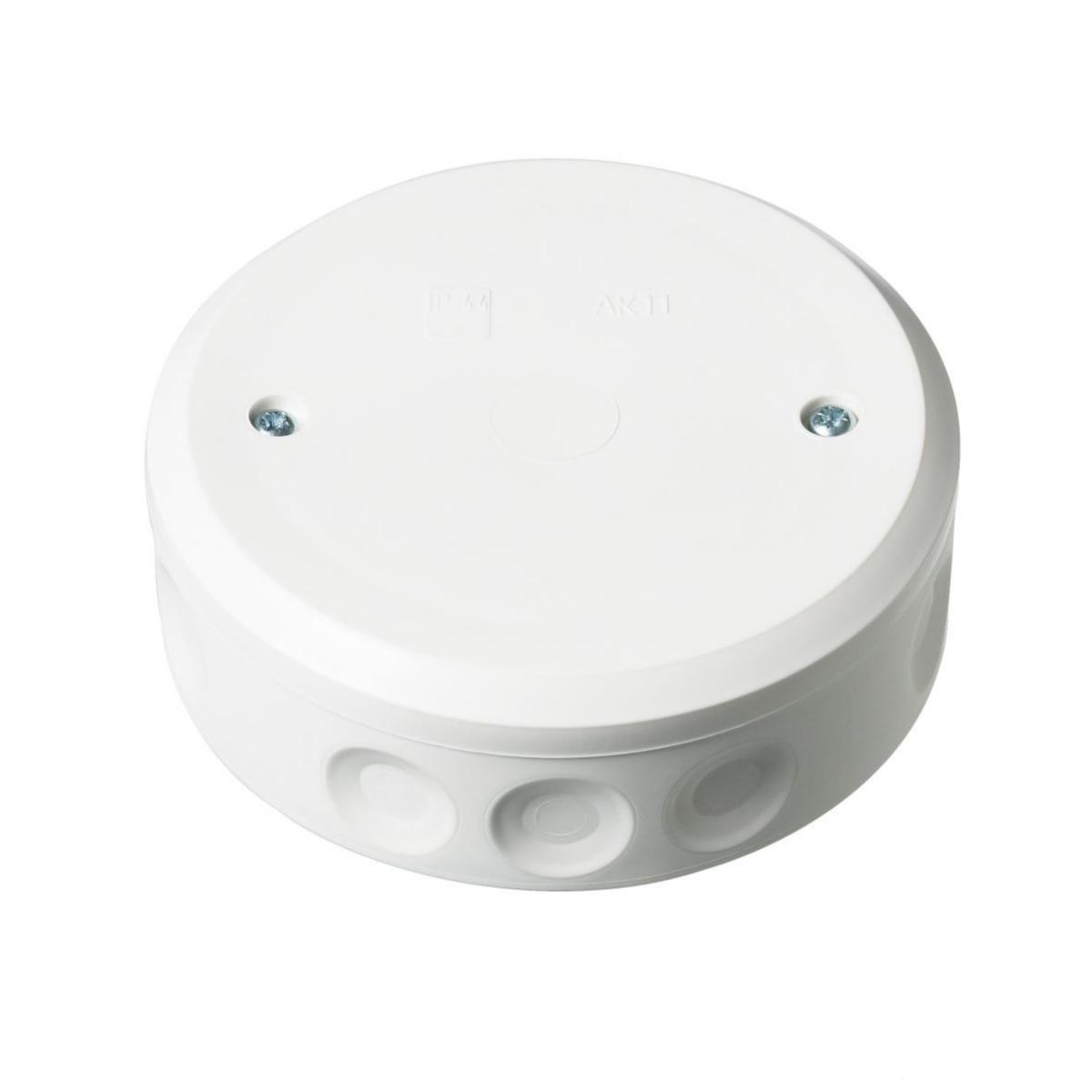

Junction box AP7, Round IP44, ABB
JUNCTION BOX IP44 AP7
Article number: Suppl. article no:
1438403
2TKA140008G1
to see price and stock
Junction box AP7 is equipped with fixed cable bushings of soft-membrane type, 10 on the sides and two at the bottom. The lid attaches with two screws, 78 mm distance. Can be equipped with tension reliever E14 384 01 or 06
- Article number: 1438403
- Suppl. article no: 2TKA140008G1
- Ean no: 6410016125170
- Material class QE701A
Technical data
- Packagin Size: 1 ST/50 ST
- Type: Junction box AP7
- Number of inlets: 12
- Max. conductor cross section: 6 mm²
- Width: 115 mm
- Length: 41 mm
- Depth: 115 mm
- Equipped with: None
- Degree of protection (IP): IP44
- Colour: White
- Casting compound included: FALSE
- Castable: FALSE
- Material: Plastic
- Mounting under water: FALSE
- Mounting in the soil: FALSE
- Diameter: 115 mm
- With screening: FALSE
- Shape: Round
- Inlet from the rear: TRUE
- Type of housing feed-through: Seal membrane
- Mounting method: Universal
- Halogen free: TRUE
- Weatherproof: TRUE
- Connectable: FALSE
- Cover model: Blind cover
- Cover attachment: Screwed
- Working temperature: -15-60 °C
- Sealable: FALSE
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: FALSE
- Rated insulation voltage Ui: 400 V
- Transparent cover: FALSE
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2024-03-14
- REACH Information obligation: No
