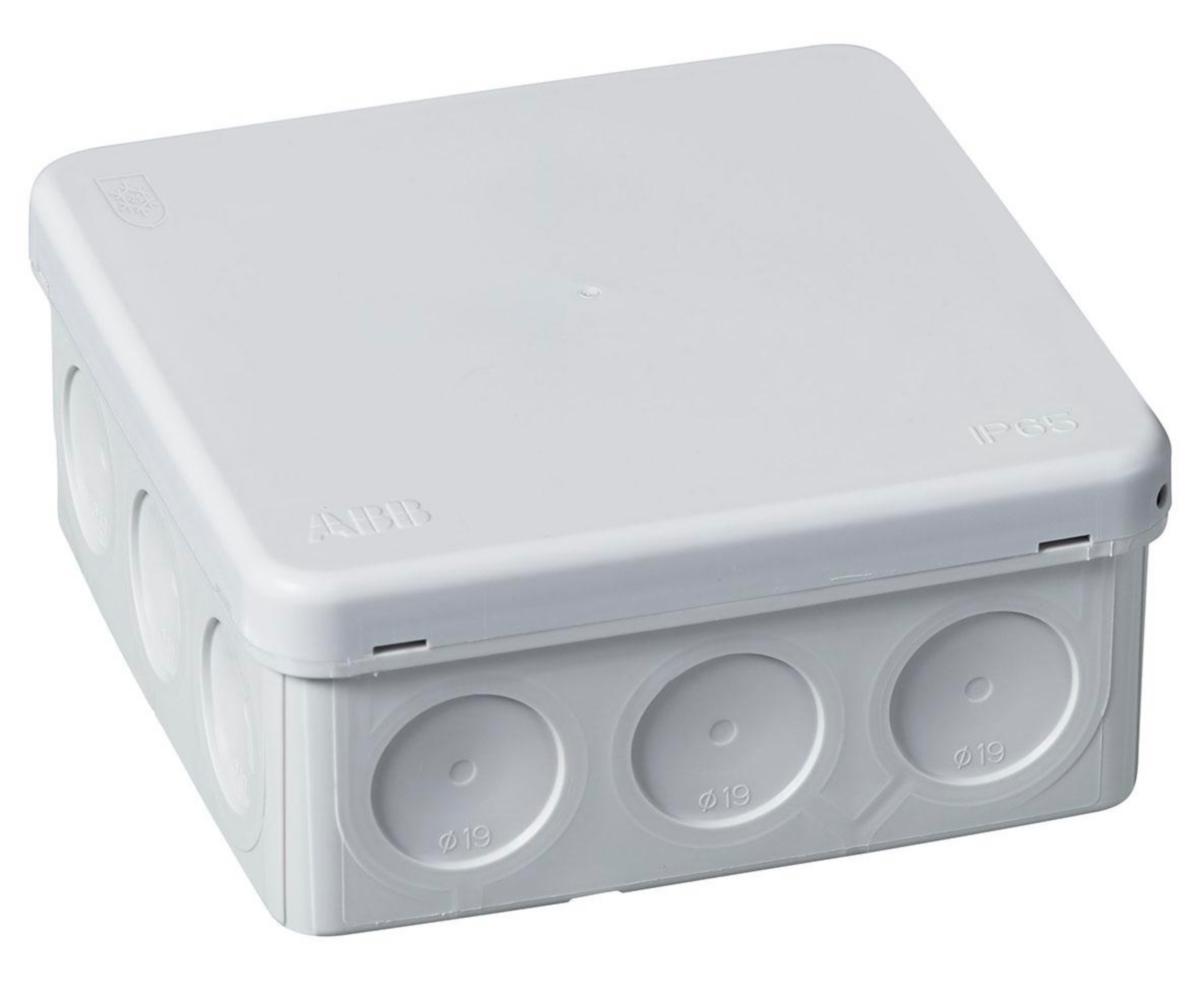

Junction box AP10, IP55, ABB
JUNCTION BOX AP10 IP65 GREY AP10/G
Article number: Suppl. article no:
1438279
2TKA140003G1
to see price and stock
The two-component AP10 junction box (6 mm², 440 V) is equipped with built-in "throttle nipples"; 10 pieces. inserts in the sides and 2 pcs. on the bottom. You insert the cable by pushing through the membrane and the cable ends. For cables max. Ø 19 mm. The box is closed by pressing on each corner of the lid (snap-on). If necessary, open the lid by slightly turning it with a screwdriver under the edge. The box comes with a PMR213 stopper. The box can be equipped with strain relief and 5-pin terminal AS9. Made of halogen-free material (IEC / 61249-2-21)
- Article number: 1438279
- Suppl. article no: 2TKA140003G1
- Ean no: 6418677307287
- Material class QE7010
Technical data
- Packagin Size: 1 ST/5 ST/30 ST/900 ST
- Number of inlets: 12
- Max. conductor cross section: 6 mm²
- Width: 104 mm
- Length: 48 mm
- Depth: 104 mm
- Equipped with: None
- Degree of protection (IP): IP65
- Colour: Grey
- RAL-number (similar): 7035
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: 19 mm
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Universal
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Blind cover
- Cover attachment: Snapped on
- Working temperature: -25-60 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 500 V
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2024-03-14
- REACH Information obligation: No
