Junction box U-56, step plate Schneider
U56 JUNCTBOX WH TRAY PLATE IMT34096
Article number: Suppl. article no:
1438271
IMT34096
to see price and stock

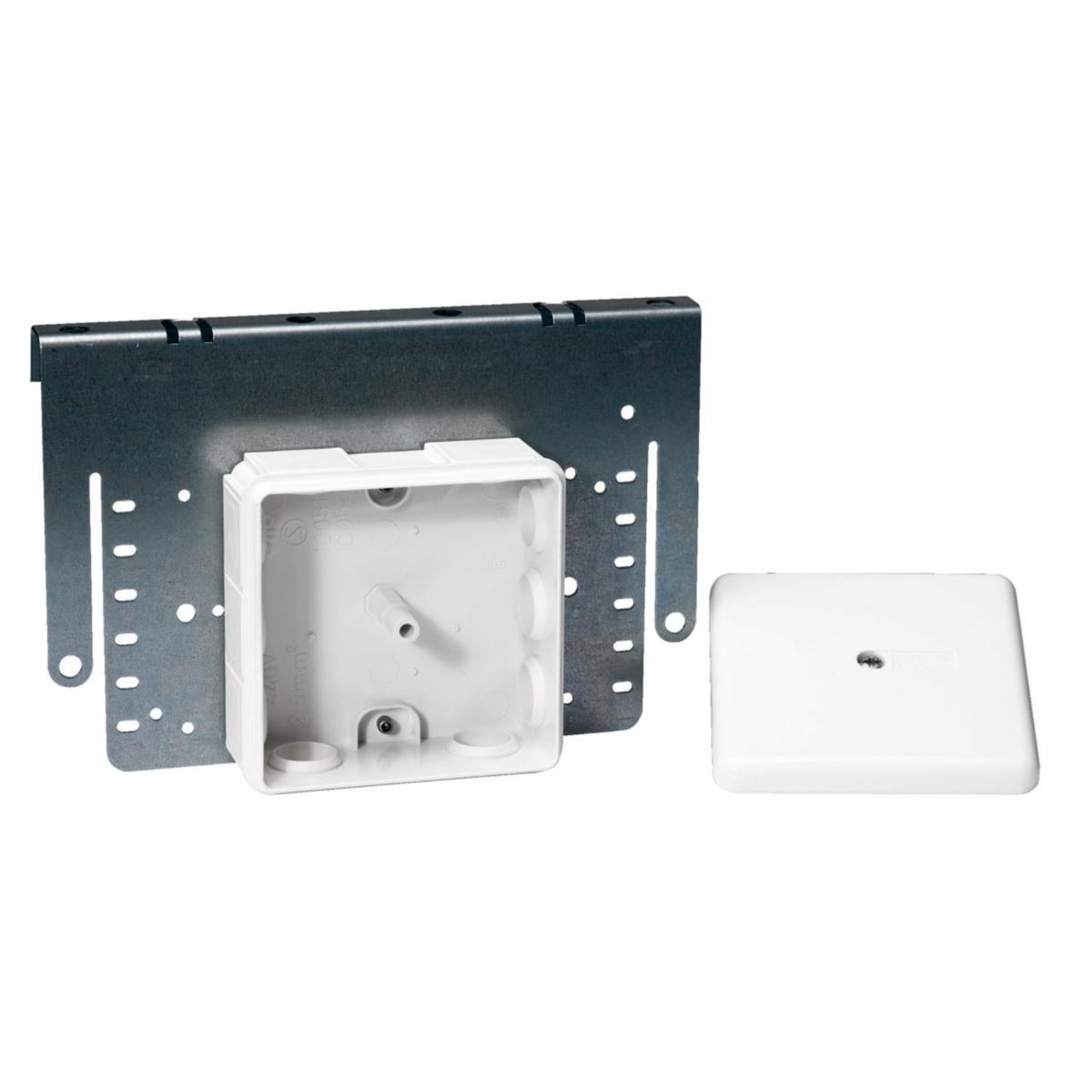

Step plate for the leading megs of cable and wire trays. With pre-installed sealed box U-56.
Screwed closed cover.
Has in total can nipples for cable bushings and to bushings in the bottom four cable entrants from behind.
Screwed closed cover.
Has in total can nipples for cable bushings and to bushings in the bottom four cable entrants from behind.
- Article number: 1438271
- Suppl. article no: IMT34096
- Ean no: 3606481158130
- Material class QE6700
- This is an alternative to item 1438270
Technical data
- Packagin Size: 1 ST/5 ST
- Number of inlets: 10
- Width: 120 mm
- Length: 180 mm
- Depth: 39 mm
- Equipped with: Mounting plate
- Colour: White
- RAL-number (similar): 9003
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- Diameter: 14 mm
- Suitable for tube diameter: Other
- With screening: No
- Shape: Square
- Inlet from the rear: No
- Type of housing feed-through: Trimmable step membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP55
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: Yes
- Cover model: Blind cover
- Cover attachment: Screwed
- Working temperature: -25-40 °C
- Sealable: No
- Surface protection: Other
- Suitable for Ex-zone gas: None
- Suitable for Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 440 V
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2025-07-18
- REACH Information obligation: No
