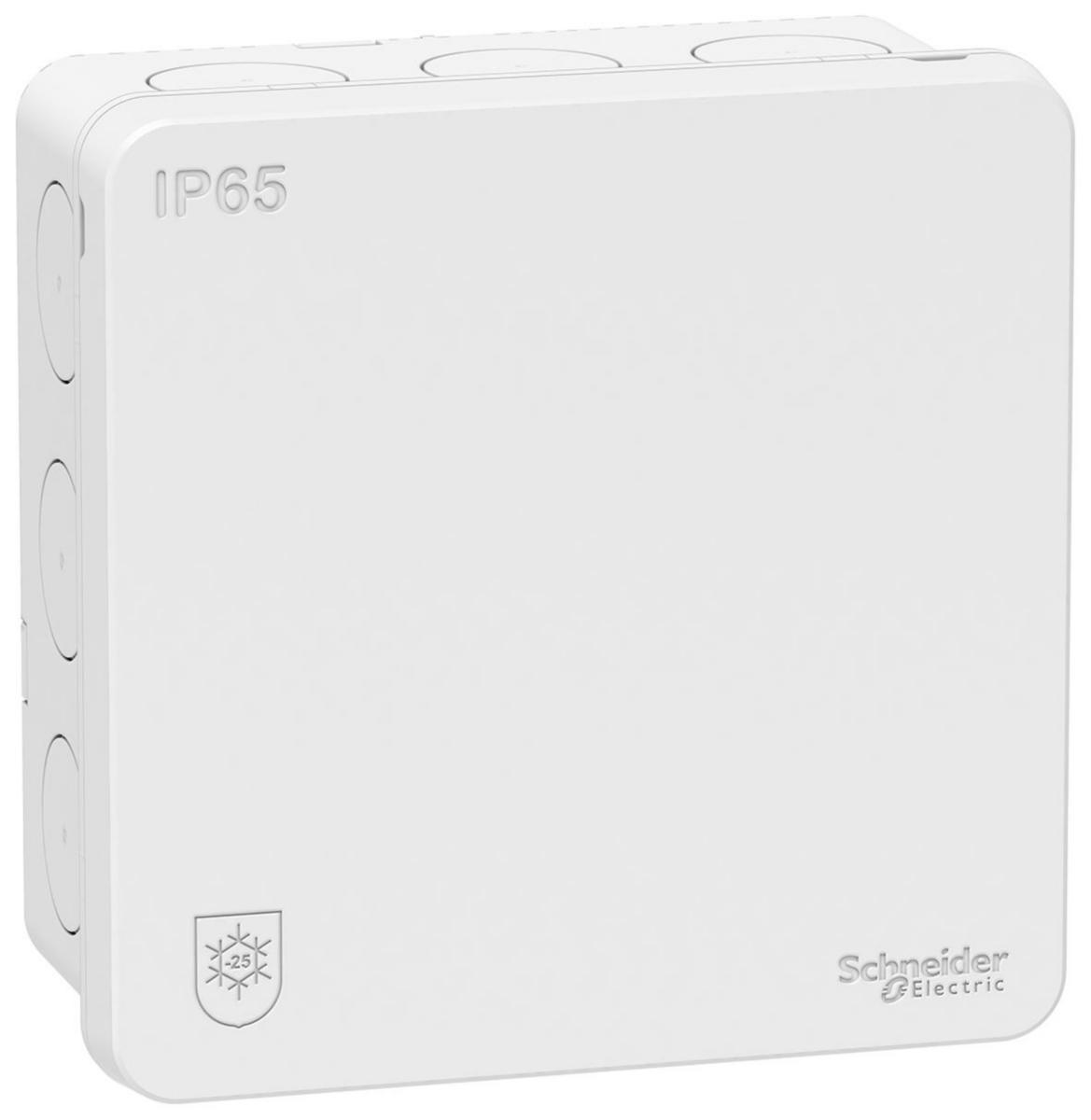

Junction box IP65 2K
JUNCTION BOX IP65 WHITE IMT35334
Article number: Suppl. article no:
1438199
IMT35334
to see price and stock
Waterproof, robust and spacious surface-mounted box without terminal block. 12 + 2 diaphragm for fast and easy cable entry. Oval mounting holes on the bottom surface. CE marked. Product standard EN 60670. IP65 according to IEC 60529. Impact resistance IK07 (2J) according to EN 50102. Perfect for cold climatic conditions (Cold climate certified).
- Article number: 1438199
- Suppl. article no: IMT35334
- Ean no: 3606481297914
- Material class QE6700
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: Mureva
- Number of inlets: 14
- Width: 87 mm
- Length: 87 mm
- Depth: 42 mm
- Equipped with: None
- Degree of protection (IP): IP65
- Colour: White
- Casting compound included: No
- Castable: Yes
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: 19 mm
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Blind cover
- Cover attachment: Snapped on
- Working temperature: -25-60 °C
- Sealable: No
- Explosion-tested version: No
- Transparent cover: No
- REACH Date: 2022-07-20
- GWP-tot (A1-A3): 0,3222 kgCO2e/ST
- REACH Information obligation: No
