ABB

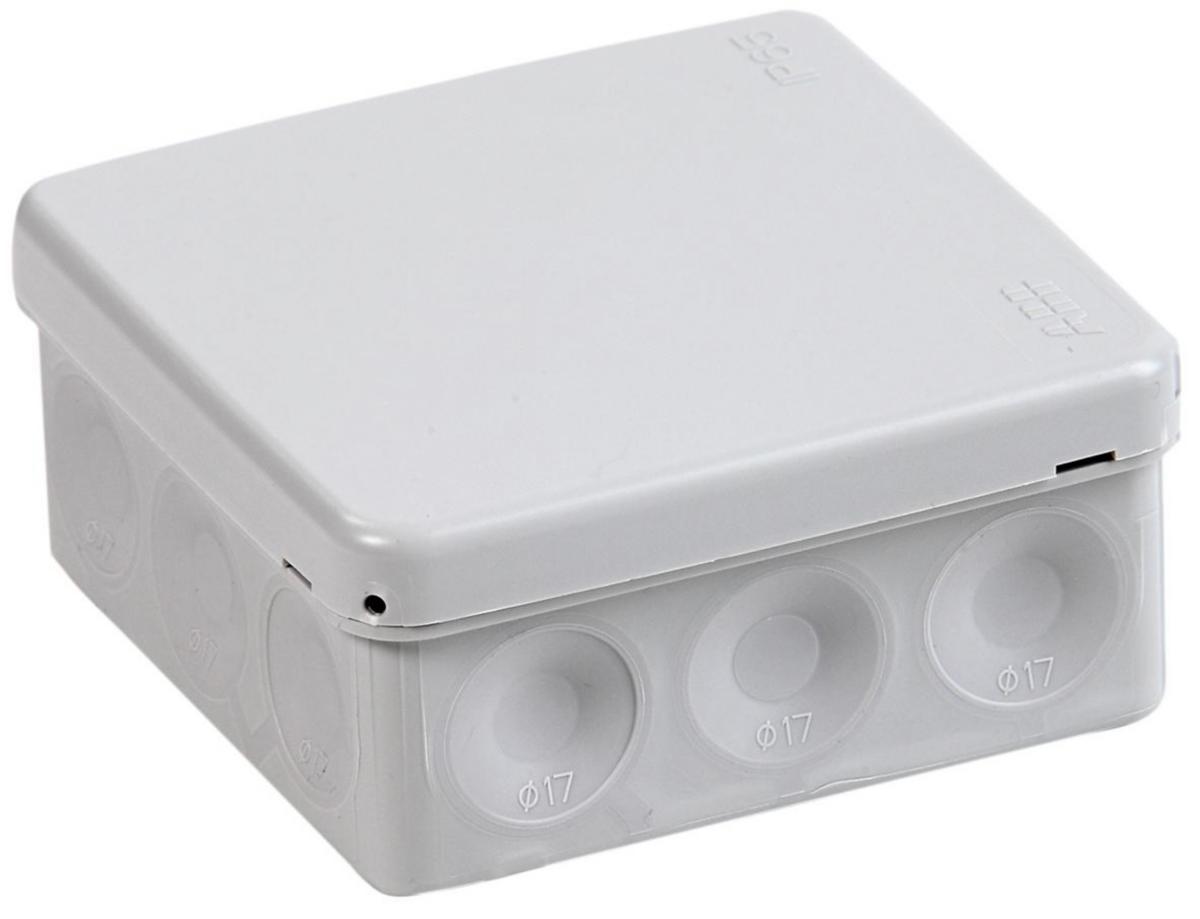

Junction box AP 9 IP55, ABB
JUNCTION BOX IP65 GREY AP9/G
Article number: Suppl. article no:
1438198
2TKA140014G1
to see price and stock
Thermoplastic. 10 insertions on the sides, 2 at the bottom.
- Article number: 1438198
- Suppl. article no: 2TKA140014G1
- Ean no: 6410016125088
- Material class QE701B
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/1800 ST
- Number of inlets: 14
- Max. conductor cross section: 19 mm²
- Width: 86 mm
- Length: 86 mm
- Depth: 39 mm
- Equipped with: None
- Degree of protection (IP): IP65
- Colour: Grey
- RAL-number (similar): 7035
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: 19 mm
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Universal
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Blind cover
- Cover attachment: Snapped on
- Working temperature: -25-60 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 500 V
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2024-03-14
- REACH Information obligation: No
