Schneider Electric

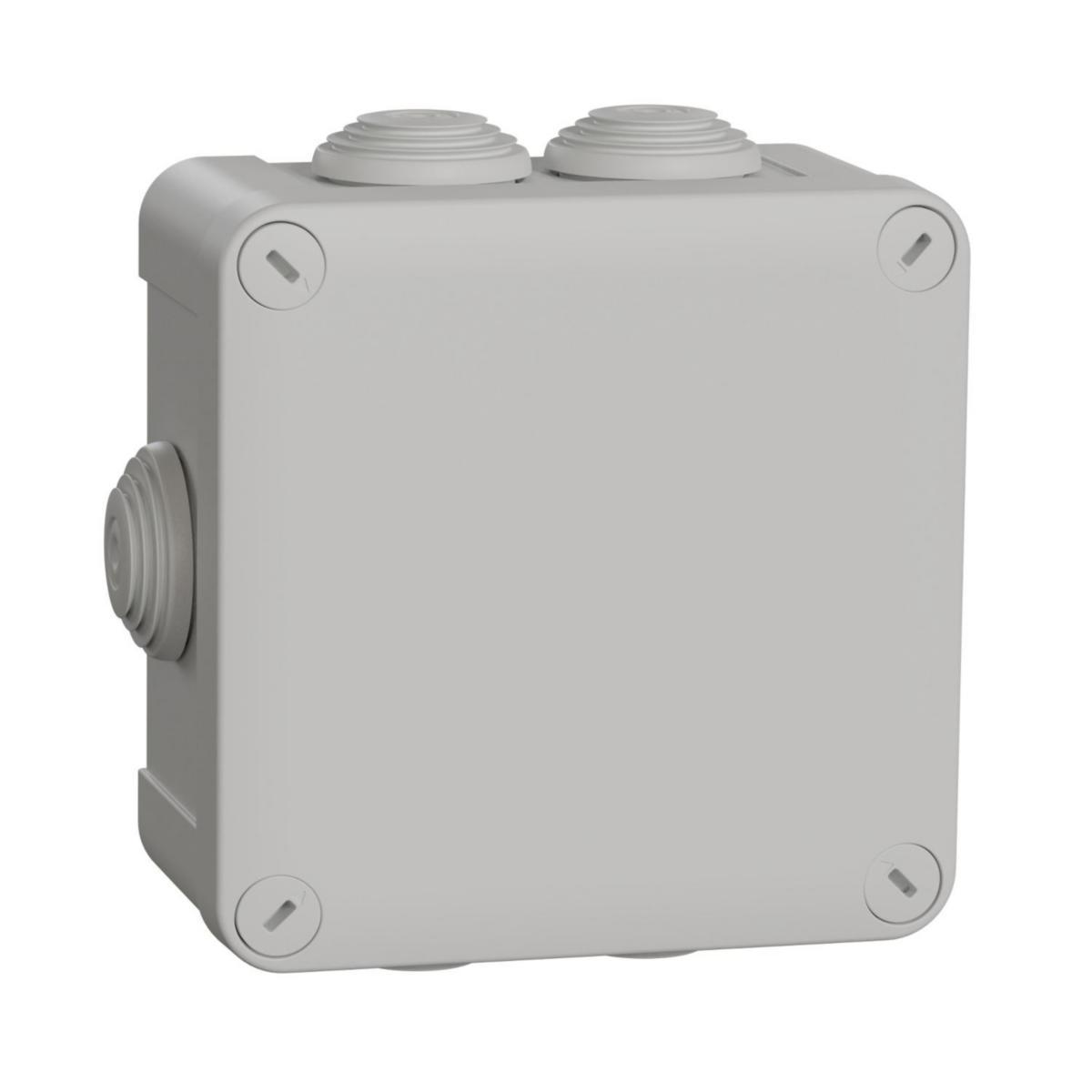

Junction box IP55 screw cover grey cable seal, Schneider
MUREVA J-BOX 105X105X55 GREY ENN05005
Article number: Suppl. article no:
1437930
ENN05005
to see price and stock
External junction box with screw cap for demanding installations in dusty, humid and harsh environments, with cable seals.
- Article number: 1437930
- Suppl. article no: ENN05005
- Ean no: 3295150050051
- Material class QE6700
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: Mureva
- Number of inlets: 7
- Max. conductor cross section: 25 mm²
- Width: 125 mm
- Length: 125 mm
- Depth: 61 mm
- Equipped with: None
- Degree of protection (IP): IP55
- Colour: Grey
- RAL-number (similar): 7035
- Casting compound included: Yes
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: 25 mm
- With screening: No
- Shape: Square
- Inlet from the rear: No
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Blind cover
- Cover attachment: Screwed
- Working temperature: -25-40 °C
- Sealable: No
- Surface protection: Untreated
- Degree of protection (NEMA): Other
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2025-07-18
- GWP-tot (A1-A3): 0,9279 kgCO2e/ST
- REACH Information obligation: No
