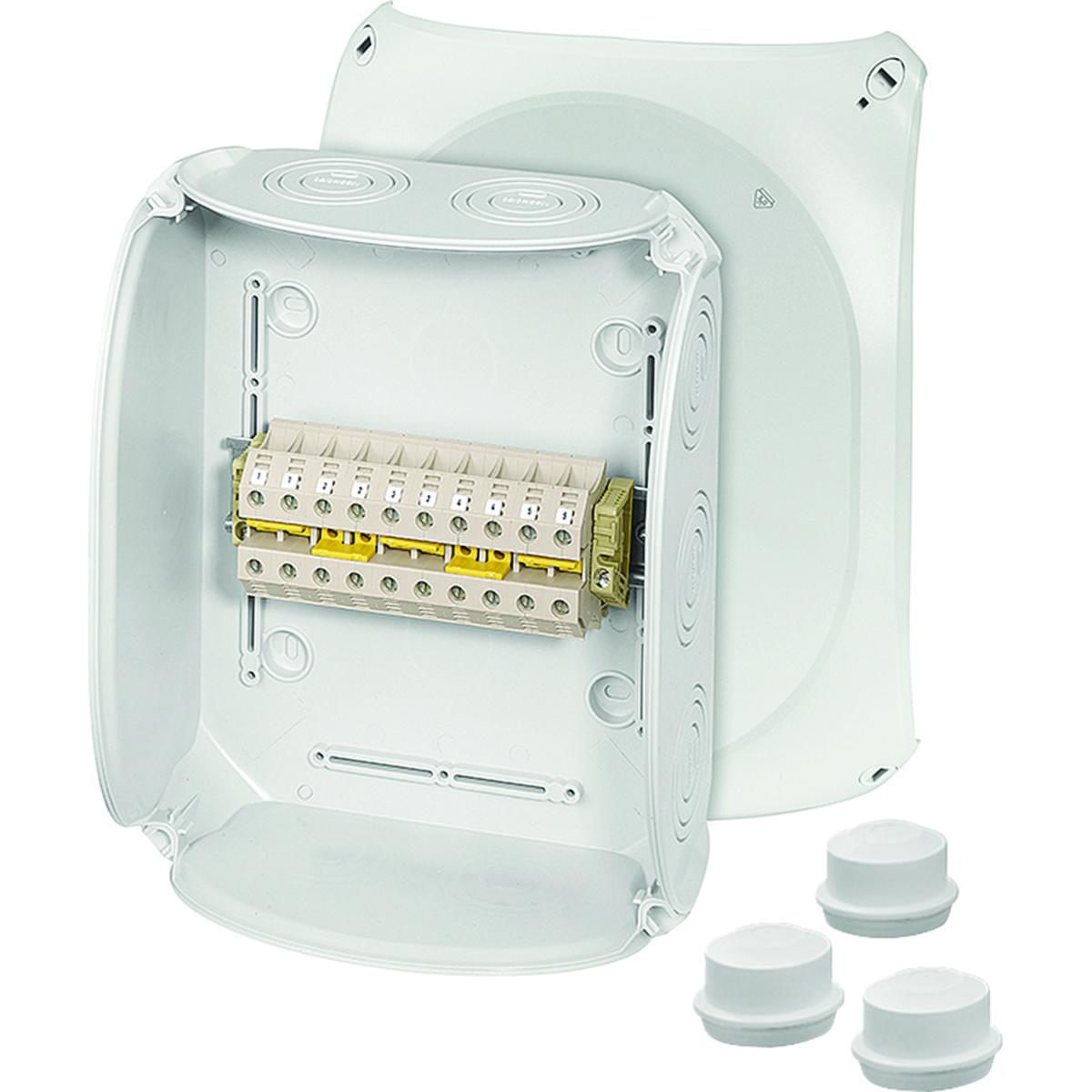

Junction box with terminals and with elastic membranes that can be easily removed for cable entry via cable glands.
With a cable gland at the bottom, The cap screws can be sealed without accessories Aluminum conductors must be prepared before they are connected in accordance with the applicable technical recommendations. See technical information aluminum conductor. Fastening straps and external brackets for wall mounting included
With a cable gland at the bottom, The cap screws can be sealed without accessories Aluminum conductors must be prepared before they are connected in accordance with the applicable technical recommendations. See technical information aluminum conductor. Fastening straps and external brackets for wall mounting included
- Article number: 1437893
- Suppl. article no: DK 2516 A
- Ean no: 4012591125570
- Material class QE7020
Technical data
- Packagin Size: 1 ST/2 ST
- Number of poles: 5
- Number of inlets: 10
- Max. conductor cross section: 16 mm²
- Width: 205 mm
- Length: 255 mm
- Depth: 112 mm
- Equipped with: Clamp
- Colour: Grey
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- Suitable for tube diameter: Other
- With screening: No
- Shape: Rectangular
- Inlet from the rear: Yes
- Type of housing feed-through: Preembossing
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP66
- Halogen free: Yes
- Weatherproof: No
- Connectable: No
- Cover model: Other
- Cover attachment: Screwed
- Working temperature: -25-40 °C
- Sealable: Yes
- Surface protection: Untreated
- Suitable for Ex-zone gas: None
- Suitable for Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 690 V
- Transparent cover: No
- Circuit integrity: None
- REACH Date: 2021-01-19
- REACH Information obligation: No
