AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsJunction boxesJunction boxes standard
Elko

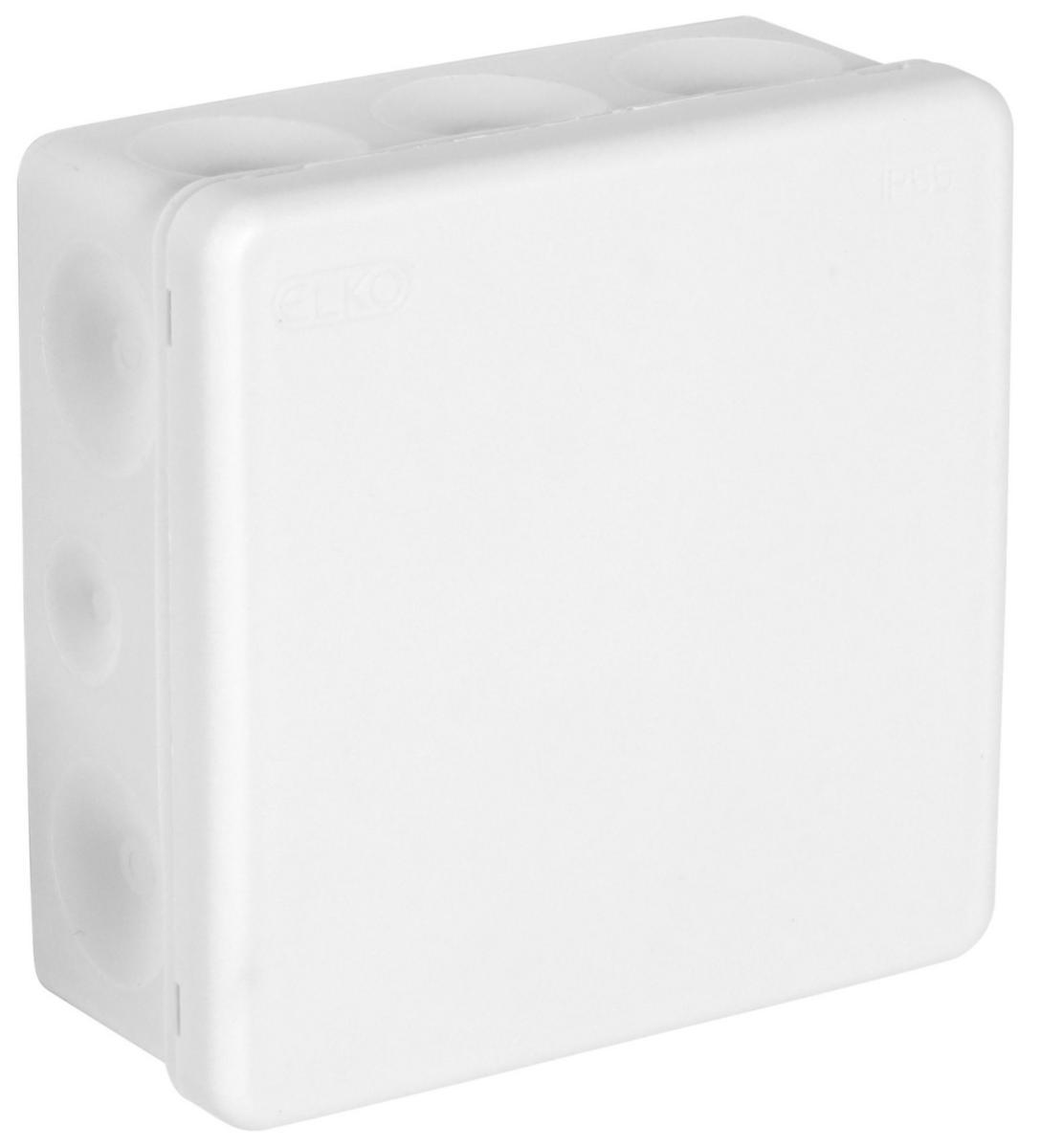

Junction box Click IP55 Elko
82/55 JUNCTION BOX IP55 PW
Article number: Suppl. article no:
1437769
AAK185A022528
to see price and stock
Enclosed design of beige halogen-free 2-component material. Snap-fastened cover without screws. Cast-in membrane nipples, including 2 at bottom. Supplied without connection clamps. Piercing is to be done with the cable, not with tools.
- Article number: 1437769
- Suppl. article no: AAK185A022528
- Ean no: 7020160520906
- Material class QE7000
Technical data

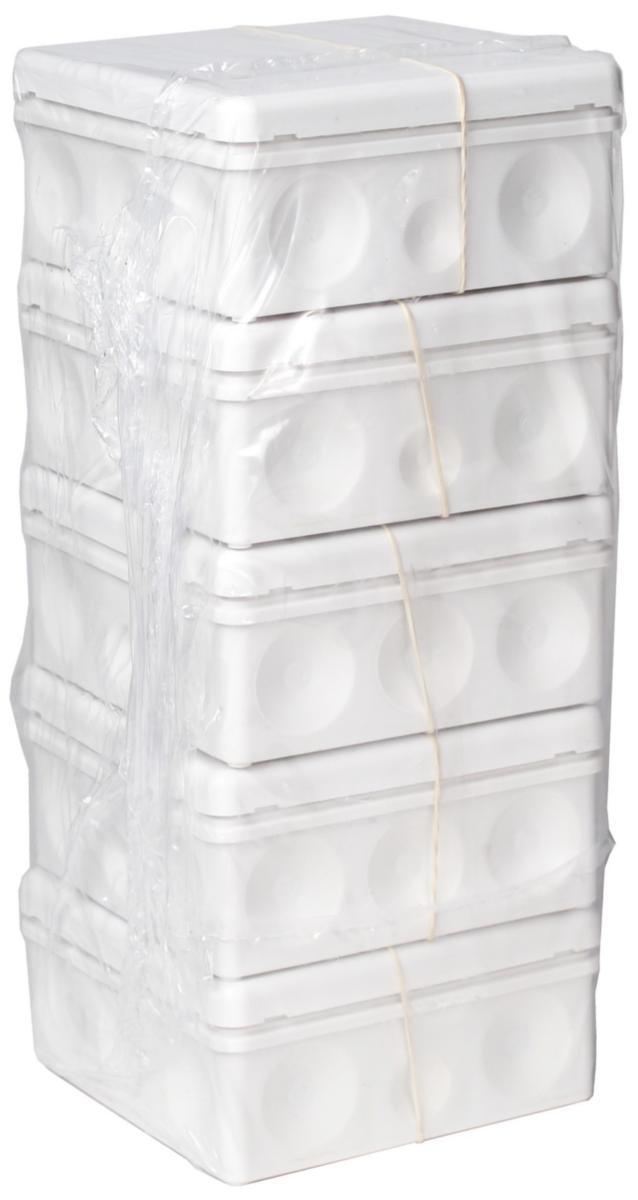

- Packagin Size: 1 ST/5 ST/50 ST
- Type: EKO05209
- Product series: Click
- Number of inlets: 12
- Max. conductor cross section: 6 mm²
- Width: 100 mm
- Length: 100 mm
- Depth: 45 mm
- Equipped with: None
- Degree of protection (IP): IP55
- Colour: White
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: Other
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Halogen free: Yes
- Connectable: No
- Cover model: Blind cover
- Cover attachment: Snapped on
- Working temperature: -25-60 °C
- Sealable: No
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Transparent cover: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
