Pmflex

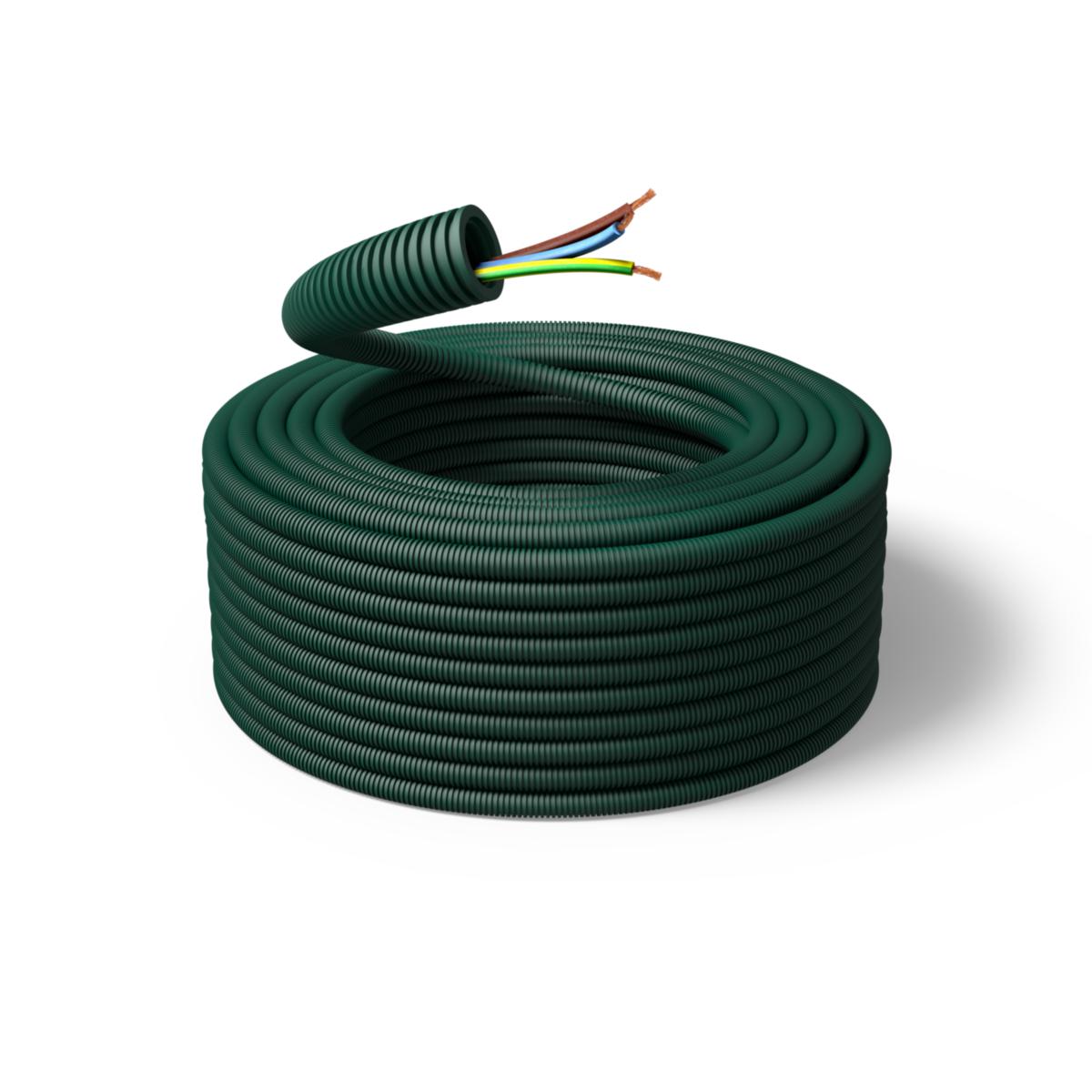

Flexible hose pre-wired FQ, Dca Recycled plastic
Conduit 16 /RE/FQ 3G2,5 / R100
Article number:
1418195
to see price and stock
Halogen-free meter-marked flexible pipes, approved for installation within -25°C to +90°C and embedding up to 750N. Pre-laid cable and the pipe must be protected against direct UV light. Pre-laid FQ is a halogen-free and flame-retardant cable with round stranded copper conductors with colored insulation. Used for re-laying in existing pipes or for new installations. Recycled PCR plastic.
- Article number: 1418195
- Ean no: 7350098732677
- Material class QE3530
Technical data
- Packagin Size: 100 M/600 M/2400 M
- Dimension conductor x area: 3G2.5 mm²
- Number of cores low voltage power cable: 3
- Number of cores single core cable: 0
- Nominal cross section conductor: 2.5 mm²
- Colour: Green
- Outer diameter: 16 mm
- Number of stranding elements: 0
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Flush-mounted installation: Yes
- With metre indication: Yes
- Suitable for outdoor installation: No
- REACH Date: 2025-01-06
- REACH Information obligation: No
