Ipipe

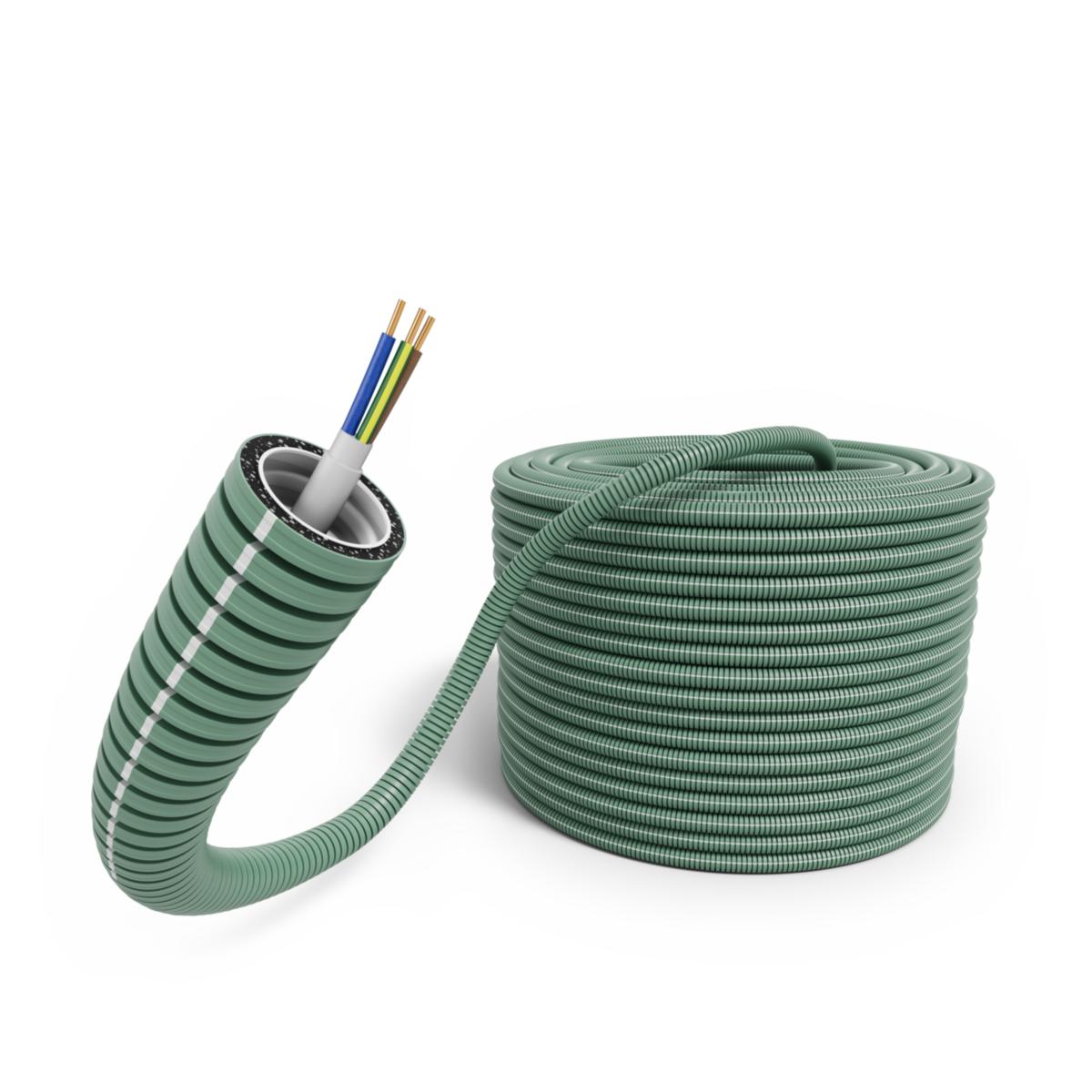

Flex hose pre-wired EXQ
16/EXQ 3G1,5 iCable rPP R100
Article number: Suppl. article no:
1417765
2134412
to see price and stock
Environmentally friendly (EXQ 3G1.5) 16mm halogen-free ipipe green corrugated installation pipe made of recycled polypropylene in a nano-friction design developed based on installers' requirements and wishes. The product is delivered in a roll of 100 meters with environmentally friendly plastic foil. The product has been developed over many years with the goal of minimal environmental impact and maximum functionality. The product is designed in three layers in order to achieve maximum benefit (outer color layer, middle layer and inner sliding layer (nano)). The pipe is approved according to EN 61386-1 and -22 according to ICTA 4322/3422, which means, among other things, that it has a pressure resistance exceeding 750 N and is therefore approved for embedding. The pipe is also approved for indoor installation at a temperature between -25 C to +90 C. The product is user-friendly, halogen-free, meter-marked, environmentally friendly and made of recycled polypropylene and develops minimal smoke in the event of a fire.
- Article number: 1417765
- Suppl. article no: 2134412
- Ean no: 07350171150374
- Material class QE3760
Technical data
- Packagin Size: 100 M/1800 M
- Dimension conductor x area: 3G1,5 mm²
- Colour: Green
- Outer diameter: 16 mm
- Nominal cross section conductor: 1.5 mm²
- Number of cores single core cable: 3
- Number of data cables: 0
- Number of cores signal-/telecommunications cable: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores low voltage power cable: 3
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 0
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: Yes
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Flush-mounted installation: Yes
- With protective conductor: No
- Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule)
- With metre indication: Yes
- Compressive strength class according to EN 61386-1: Medium (class 3, 750 N)
- Lowest bending radius: 0 °
- Suitable for outdoor installation: No
- REACH Date: 2024-09-01
- REACH Information obligation: No
