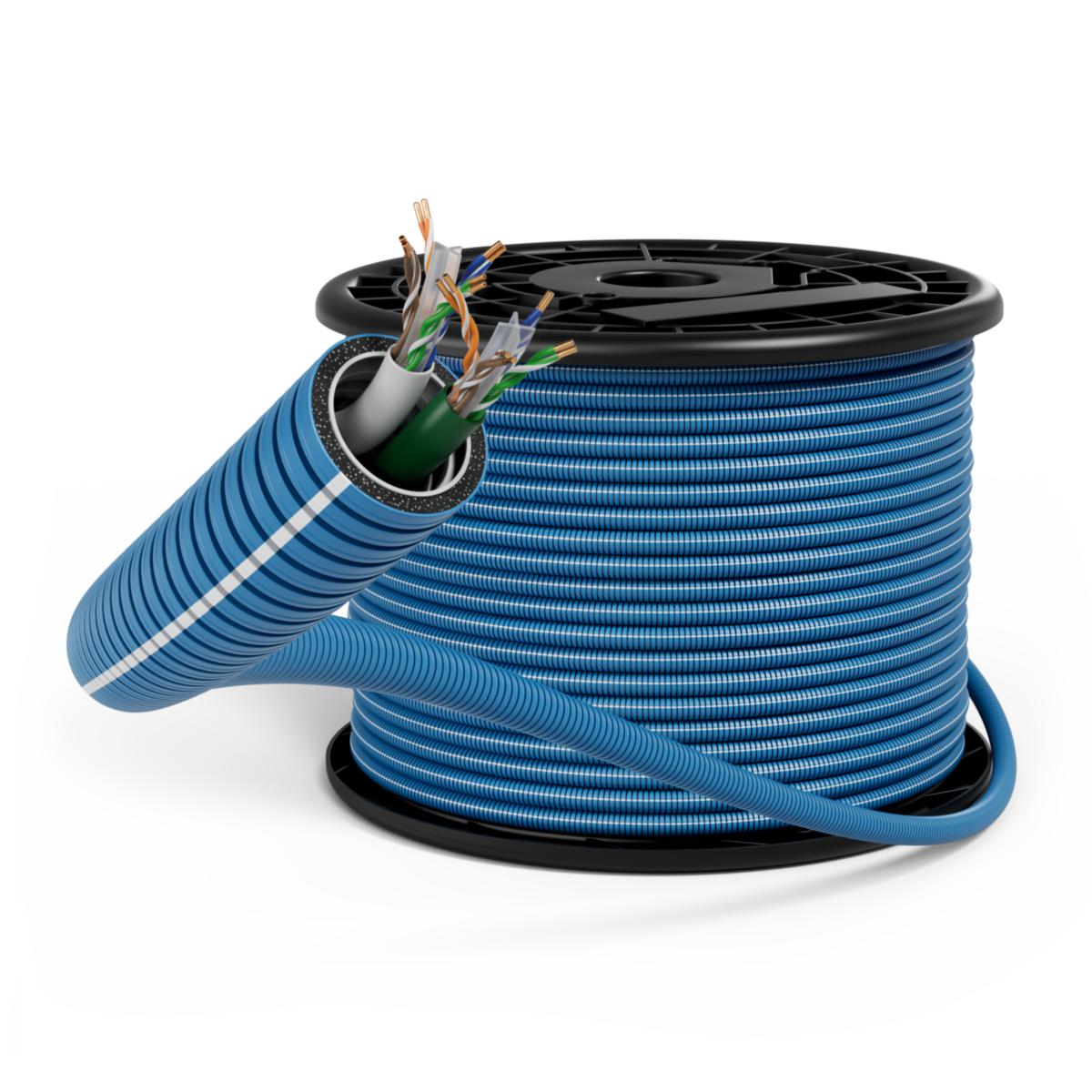

Flex Hose 2xCat6 UTP - 20/2UTP6 iCable rPP B200
Ipipe

Flex Hose 2xCat6 UTP

20/2UTP6 iCable rPP B200
Article number:
1417753
Suppl. article no:
2276342





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Environmentally friendly contract (2xUTP6) 20mm halogen-free blue corrugated installation pipe made of recycled propylene in a low-friction design developed based on installers' requirements and wishes. The product is delivered in a roll or bobbin with environmentally friendly plastic foil. The product has been developed over many years with the goal of minimal environmental impact and maximum functionality. The product is designed in three layers in order to achieve maximum benefit (outer color layer, middle intermediate layer and inner sliding layer). The pipe is approved according to EN 61386-1 and -22 according to ICTA 4322/3422, which means, among other things, that it has a pressure resistance exceeding 750 N and is therefore approved for embedding. The pipe is also approved for indoor installation at a temperature between -25 C to +90 C. The product is user-friendly, halogen-free, meter-marked, environmentally friendly and made of recycled propylene and develops minimal smoke in the event of a fire.
  • Article number:
    1417753
  • Suppl. article no:
    2276342
  • Ean no:
    07350171150626
  • Material class
    QE3732
Technical data
  • Packagin Size: 200 M/1600 M
  • Dimension conductor x area: 2xUTP6
  • Colour: Blue
  • Outer diameter: 20 mm
  • Number of data cables: 2
  • Number of coaxial cables: 0
  • Number of cores signal-/telecommunications cable: 0
  • Number of cores low voltage power cable: 0
  • Number of cores single core cable: 0
  • Number of loudspeaker cables: 0
  • Nominal cross section conductor: 1 mm²
  • Material: Polypropylene (PP)
  • Halogen free: Yes
  • Number of stranding elements: 0
  • Bending strength: Flexible
  • Operating temperature: -25-90 °C
  • Suitable for concrete installation: Yes
  • Suitable for installation on wood: Yes
  • Suitable for underfloor installation (screed): Yes
  • High conducting inner coating: Yes
  • Reaction-to-fire according to EN 13501-6: Class: Dca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
  • Fire retardant version: Yes
  • Suitable for hollow wall installation: Yes
  • Inner diameter: 14.1 mm
  • Machine and systems installation: Yes
  • With draw wire: No
  • With integrated POF conductor: No
  • Suitable for underground installation: No
  • Surface mounting: Yes
  • Reaction-to-fire according to EN 13501-6: Smoke production: s2
  • Reaction-to-fire according to EN 13501-6: Acidity: a2
  • Flush-mounted installation: Yes
  • With protective conductor: No
  • With metre indication: Yes
  • Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule)
  • Compressive strength class according to EN 61386-1: Medium (class 3, 750 N)
  • Lowest bending radius: 0 °
  • Suitable for outdoor installation: No
  • REACH Date: 2024-09-01
  • REACH Information obligation: No
