Nexans
Flex hose pre-wired FQ twisted Dca, N-LINE, Nexans
PRE WIRED CONDUIT FQ TW5G2,5 X
Article number: Suppl. article no:
1415150
27102284-907-01
to see price and stock

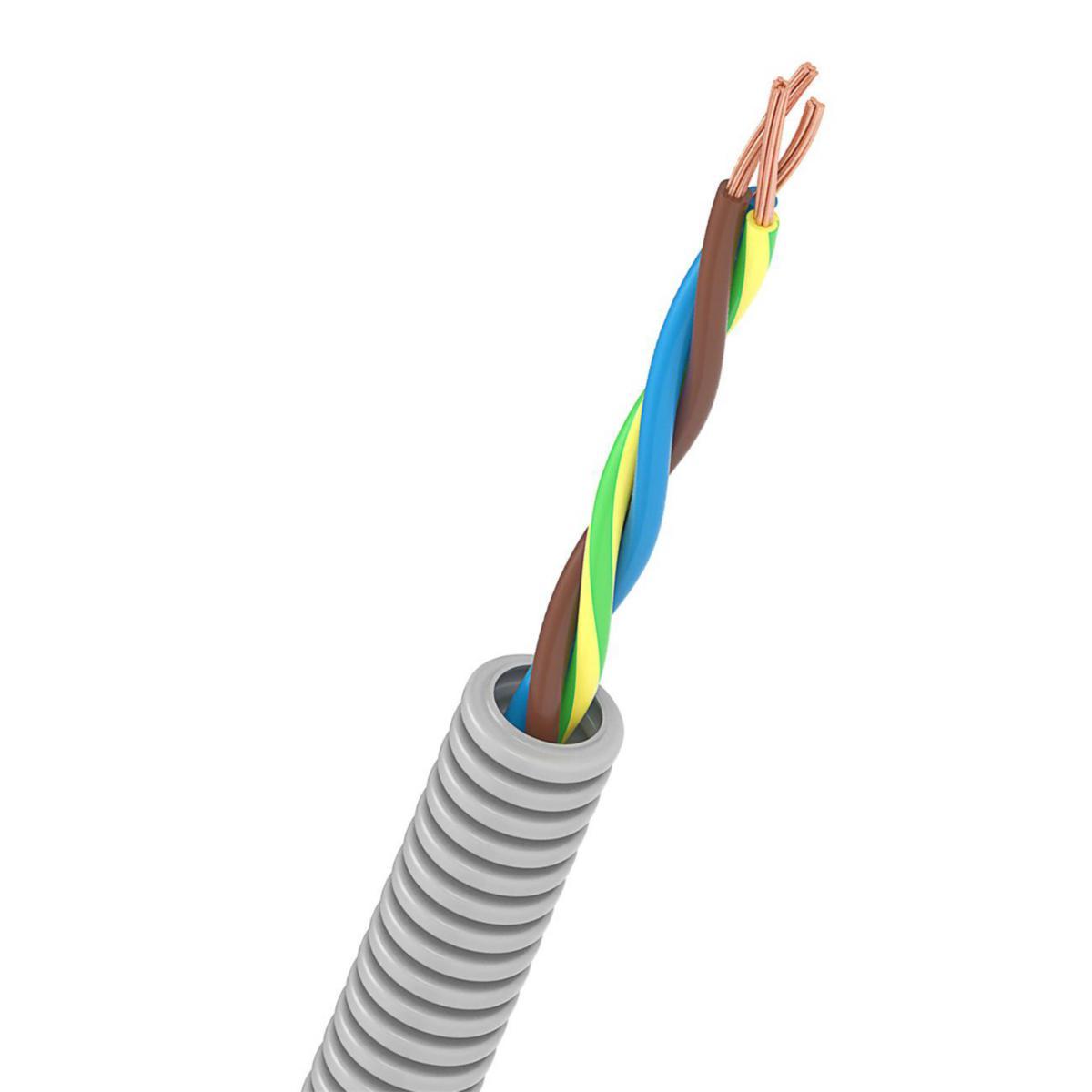

Halogen-free corrugated installation pipe in PP. H07Z1-R Twisted (FQ EASY) is a halogen-free, HFFR-insulated installation cable made of extremely low-friction material with a round, few-wire copper conductor.
- Article number: 1415150
- Suppl. article no: 27102284-907-01
- Material class QE3600
Technical data
- Packagin Size: 50 M/600 M
- Dimension conductor x area: 5G2.5 mm²
- Number of cores low voltage power cable: 5
- Number of cores single core cable: 5
- Nominal cross section conductor: 2.5 mm²
- Colour: Grey
- Outer diameter: 20 mm
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-70 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 14.5 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Flush-mounted installation: Yes
- With protective conductor: Yes
- With metre indication: Yes
- REACH Date: 2023-01-01
- REACH Information obligation: No
